Add Flower Glyphs as a Scatterplot

The flowerglyph geom is used to plot multivariate data as flower glyphs (Van Onzenoodt et al. 2023) in a scatterplot. Each variable specified in cols is depicted as a "petal" radiating from the data point, with the petal length (or area) scaled according to the corresponding value.

Usage

geom_flowerglyph(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  cols = character(0L),
  edges = 30,
  petal.width = 0.1,
  petal.base.shape = 2,
  petal.tip.shape = 1,
  petal.tip.notch = 0,
  petal.tip.notch.width = 0.15,
  petal.base.notch = 0,
  petal.base.notch.width = 0.15,
  petal.waist = 0,
  petal.waist.position = 0.5,
  petal.waist.width = 0.15,
  petal.curvature = 0,
  petal.curvature.position = 0.7,
  petal.curvature.width = 0.2,
  scale.length = TRUE,
  scale.area = FALSE,
  fill.petal = NULL,
  fill.gradient = NULL,
  colour.petal = NULL,
  colour.grid = NULL,
  linewidth = 1,
  linewidth.grid = linewidth,
  linejoin = c("mitre", "round", "bevel"),
  centre = TRUE,
  centre.size = 0.5,
  colour.centre = NULL,
  fill.centre = NULL,
  angle.start = 0,
  angle.stop = 2 * base::pi,
  draw.grid = FALSE,
  legend.glyph.dims = setNames(rep(0.5, length(cols)), cols),
  show.legend = NA,
  repel = FALSE,
  repel.control = ggmultiglyph.repel.control(),
  inherit.aes = TRUE
)

Arguments

mapping

Set of aesthetic mappings created by aes(). If specified and inherit.aes = TRUE (the default), it is combined with the default mapping at the top level of the plot. You must supply mapping if there is no plot mapping.

data

The data to be displayed in this layer. There are three options:

If NULL, the default, the data is inherited from the plot data as specified in the call to ggplot().

A data.frame, or other object, will override the plot data. All objects will be fortified to produce a data frame. See fortify() for which variables will be created.

A function will be called with a single argument, the plot data. The return value must be a data.frame, and will be used as the layer data. A function can be created from a formula (e.g. ~ head(.x, 10)).

stat

The statistical transformation to use on the data for this layer. When using a geom_*() function to construct a layer, the stat argument can be used to override the default coupling between geoms and stats. The stat argument accepts the following:

A Stat ggproto subclass, for example StatCount.
A string naming the stat. To give the stat as a string, strip the function name of the stat_ prefix. For example, to use stat_count(), give the stat as "count".
For more information and other ways to specify the stat, see the layer stat documentation.

position

A position adjustment to use on the data for this layer. This can be used in various ways, including to prevent overplotting and improving the display. The position argument accepts the following:

The result of calling a position function, such as position_jitter(). This method allows for passing extra arguments to the position.
A string naming the position adjustment. To give the position as a string, strip the function name of the position_ prefix. For example, to use position_jitter(), give the position as "jitter".
For more information and other ways to specify the position, see the layer position documentation.

...

Other arguments passed on to layer(). These are often aesthetics, used to set an aesthetic to a fixed value, like colour = "green" or size = 3. They may also be parameters to the paired geom/stat.

cols

A character vector containing the names of at least two columns specifying the variables to be plotted in the glyphs. The selected columns must be either numeric or factor variables.

edges

The number of points used to approximate the taper profile of one side of a petal. Higher values give smoother petal outlines.

petal.width

The width of a petal (as a proportion of size|) at its widest point.

petal.base.shape

A positive numeric value controlling how rapidly the petal widens from its base. Smaller values produce a broader attachment to the centre of the glyph, whereas larger values delay the expansion of the petal, producing a narrower, more clawed base.

petal.tip.shape

A positive numeric value controlling how rapidly the petal tapers towards its tip. Smaller values produce broader, more rounded tips, whereas larger values concentrate the petal width closer to its middle, producing progressively narrower, more pointed or lanceolate tips.

petal.tip.notch

A numeric value controlling deformation of the petal tip. A value of 0 produces a smooth, unmodified tip. Positive values (typically \(> 0\)) create an increasingly deep inward cleft with smooth shoulders, producing retuse, emarginate, obcordate, or bifid petal tips. Negative values extend the tip beyond its nominal length, producing progressively more acuminate, cuspidate, or aristate tips.

petal.tip.notch.width

A positive numeric value controlling the breadth of the tip notch. Smaller values produce a narrow, sharply incised cleft, or point, whereas larger values produce a broader, more rounded indentation or extension.

petal.base.notch

A numeric value controlling deformation of the petal base. A value of 0 produces a smooth, unmodified base. Positive values shift the basal shoulders backward relative to the central notch vertex (which remains anchored at the origin), producing cordate, sagittate, reniform, hastate, or auriculate petal shapes. Negative values extend the base into a basal protrusion or claw.

petal.base.notch.width

A positive numeric value controlling the breadth of the basal notch or protrusion. Smaller values produce a narrow, sharply defined sinus or point, whereas larger values produce a broader, more rounded basal indentation or extension.

petal.waist

A numeric value controlling the depth of a constriction along the petal. A value of 0 produces a uniformly tapered petal, whereas larger values produce an increasingly pronounced narrowing, resulting in pandurate, fiddle-shaped, or otherwise constricted petals.

petal.waist.position

A numeric value between 0 and 1 controlling the position of the waist along the petal axis, where 0 corresponds to the base and 1 to the tip.

petal.waist.width

A positive numeric value controlling the breadth of the waist. Smaller values produce a sharp, localized constriction, whereas larger values produce a broader, more gradual narrowing.

petal.curvature

A numeric value or vector controlling the curvature of the petal centreline. A value of 0 produces a straight petal, whereas single positive or negative values produce simple arcuate or falcate (C-shaped) curvature in opposite directions. Passing a vector specifies multiple curvature bends along the petal axis; for example, a vector of length 2 with opposing signs (e.g., c(3.0, -3.0)) produces a sigmoid (S-shaped) petal.

petal.curvature.position

A numeric value or vector between 0 and 1 controlling the position of maximum curvature along the petal axis, where 0 corresponds to the base and 1 to the tip. When petal.curvature is a vector specifying multiple bends (e.g., for sigmoid shapes), this parameter specifies the location along the axis for each corresponding bend.

petal.curvature.width

A positive numeric value controlling the breadth of the region over which the petal bends. Smaller values concentrate the curvature into a localized bend, whereas larger values distribute the curvature more evenly along the petal, producing a broader, more gradual arc.

scale.length

logical. If TRUE, the petal lengths are scaled according to value of z.

scale.area

logical. If TRUE, the area of the petals are scaled according to value of z.

fill.petal

The fill colour of the petals.

fill.gradient

The palette for gradient fill of the segments. See Details section of col_numeric() function in the scales package for available options.

colour.petal

The outline colour of the petals.

colour.grid

The colour of the grid lines.

linewidth

The petal outline line width.

linewidth.grid

The line width for the grid lines.

linejoin

The line join style for the petal outlines. Either "mitre", "round" or "bevel".

centre

logical. If TRUE, a central point is drawn at the glyph origin. Default is TRUE.

centre.size

The size (radius, in mm) of the central point.

colour.centre

The line colour of the central point.

fill.centre

The fill colour of the central point.

angle.start

The start angle for the petals in radians. Default is zero.

angle.stop

The stop angle for the petals in radians. Default is \(2\pi\).

draw.grid

logical. If TRUE, grid levels are plotted along the central axis of each petal if all the variables specified in cols are an ordered factor. Default is FALSE.

legend.glyph.dims

The dimensions of the legend glyph plot. Can be a numeric vector of unit length (where all the dimensions will have same value) or a numeric vector of same length as "cols" with the "cols" as names.

show.legend

logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes. It can also be a named logical vector to finely select the aesthetics to display. To include legend keys for all levels, even when no data exists, use TRUE. If NA, all levels are shown in legend, but unobserved levels are omitted.

repel

logical. If TRUE, the glyphs are repel away from each other to avoid overlaps. Default is FALSE.

repel.control

A list of control settings for the repel algorithm. Ignored if repel = FALSE. See ggmultiglyph.repel.control for details on the various control parameters.

inherit.aes

If FALSE, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g. annotation_borders().

Value

A geom layer.

Aesthetics

geom_flowerglyph() understands the following aesthetics (required aesthetics are in bold):

x
y
alpha
colour
fill
group
size
centre.size

See vignette("ggplot2-specs", package = "ggplot2") for further details on setting these aesthetics.

The following additional aesthetics are considered if repel = TRUE:

point.size
segment.linetype
segment.colour
segment.size
segment.alpha
segment.curvature
segment.angle
segment.ncp
segment.shape
segment.square
segment.squareShape
segment.inflect
segment.debug

See ggrepel examples page for further details on setting these aesthetics.

References

Van Onzenoodt C, Vazquez P, Ropinski T (2023). “Out of the plane: Flower versus star glyphs to support high-dimensional exploration in two-dimensional embeddings.” IEEE Transactions on Visualization and Computer Graphics, 29(12), 5468–5482.

Examples



library(ggplot2)

#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Prepare the data ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

# Variables to map to glyphs
zs <- c("hp", "drat", "wt", "qsec", "vs", "am", "gear", "carb")

# Keep a copy of the original data
mtcars_fct <- mtcars

# Scaled numeric data
mtcars[zs] <- lapply(mtcars[zs], scales::rescale)

mtcars$cyl <- factor(mtcars$cyl)
mtcars$lab <- row.names(mtcars)

# Ordered factor data
mtcars_fct[zs[1:3]] <-
  lapply(mtcars_fct[zs[1:3]], function(x)
    ordered(cut(x, breaks = 3,
                labels = c("low", "medium", "high"))))

mtcars_fct[zs[4:8]] <-
  lapply(mtcars_fct[zs[4:8]], function(x)
    ordered(cut(x, breaks = 4,
                labels = c("tiny", "small", "medium", "large"))))

mtcars_fct$cyl <- factor(mtcars_fct$cyl)
mtcars_fct$lab <- row.names(mtcars_fct)

#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

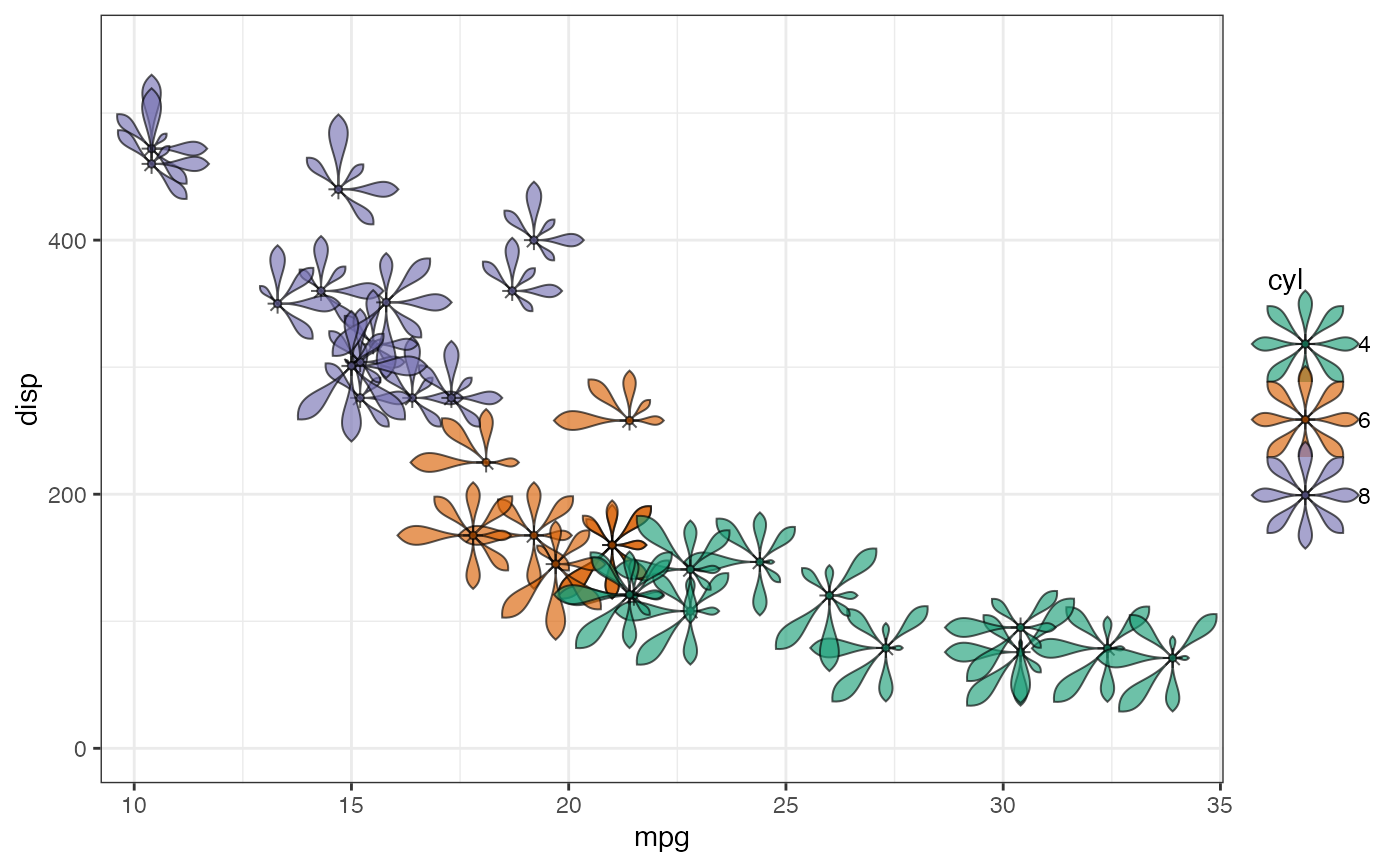

# Mapped fill + scaled length ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

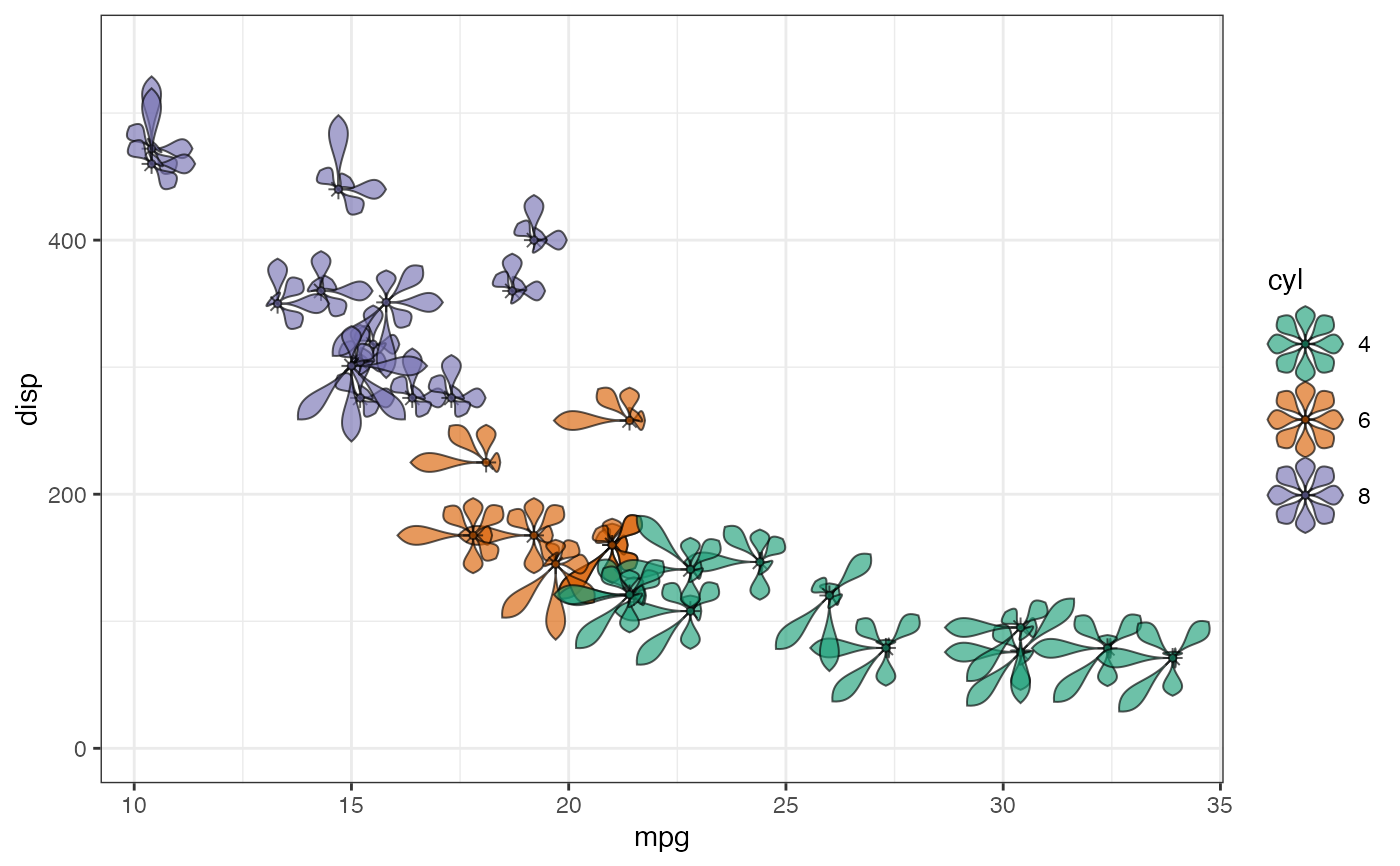

ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp, fill = cyl),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   alpha =  0.8) +
  ylim(c(-0, 550))


# \donttest{
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Mapped fill + scaled area ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp, fill = cyl),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   scale.length = FALSE, scale.area = TRUE,
                   alpha =  0.8) +
  ylim(c(-0, 550))


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

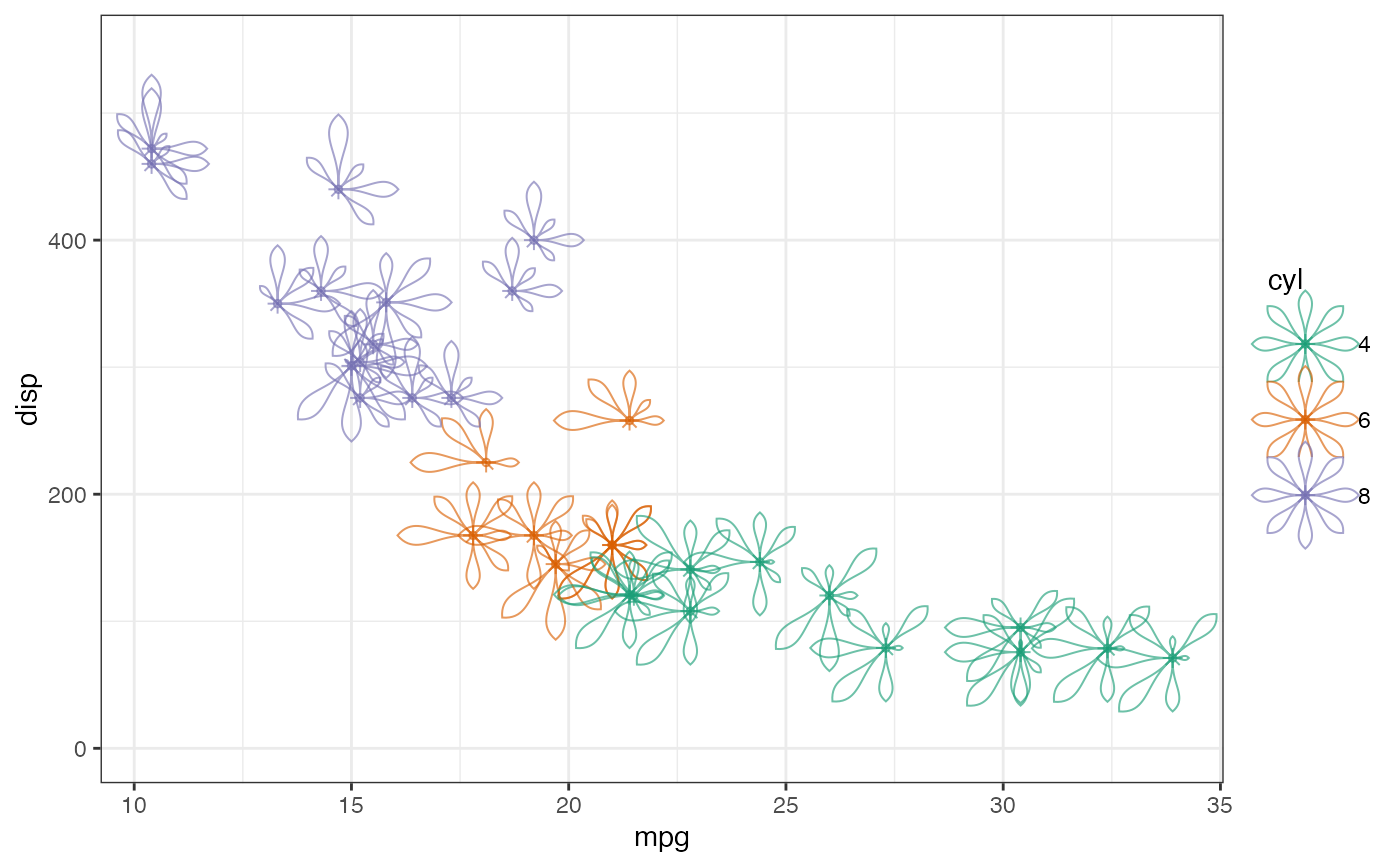

# Mapped colour + scaled length ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

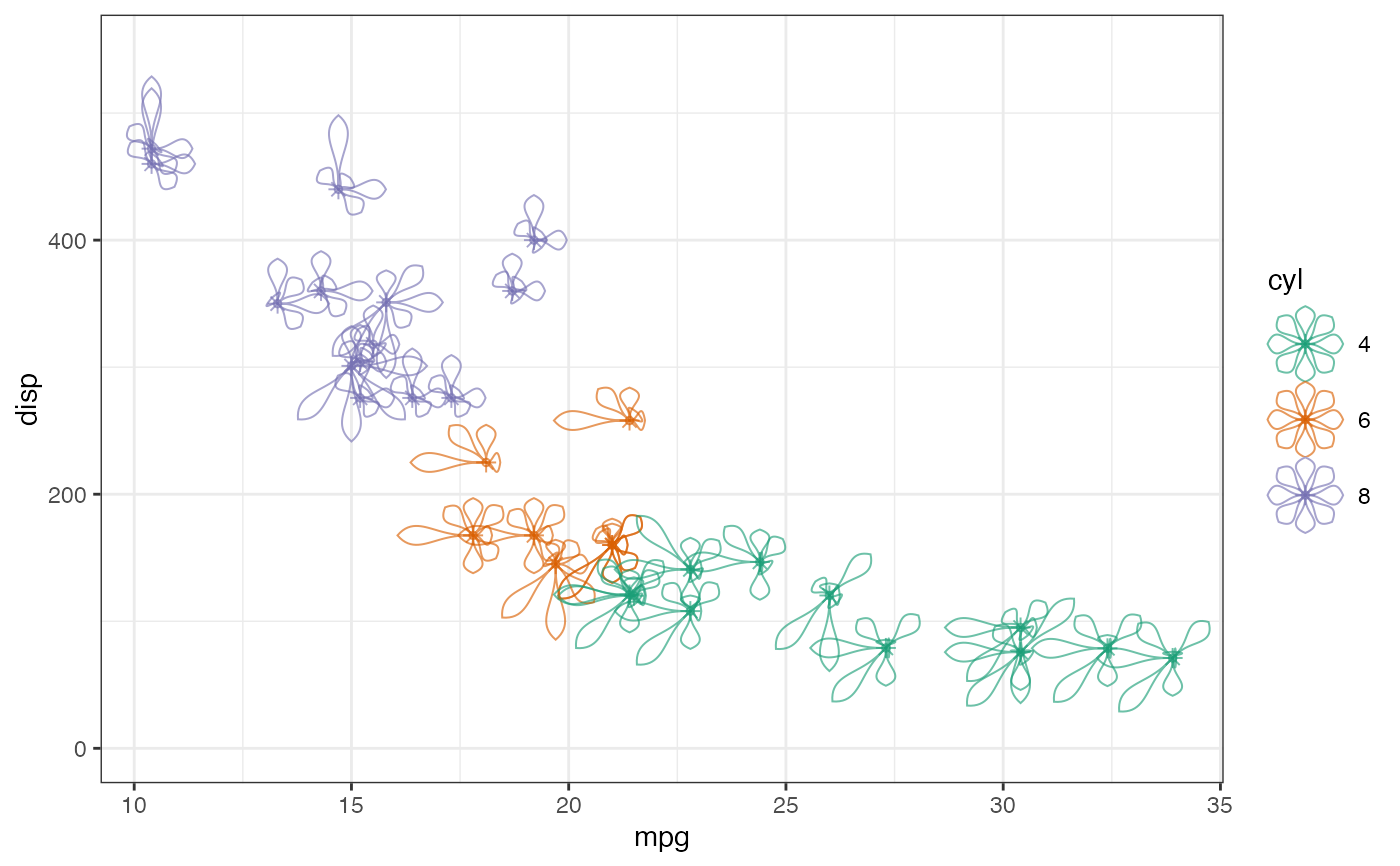

ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp, colour  = cyl),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   alpha =  0.8) +
  ylim(c(-0, 550))


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Mapped colour + scaled area ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp, colour  = cyl),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   scale.length = FALSE, scale.area = TRUE,
                   alpha =  0.8) +
  ylim(c(-0, 550))


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

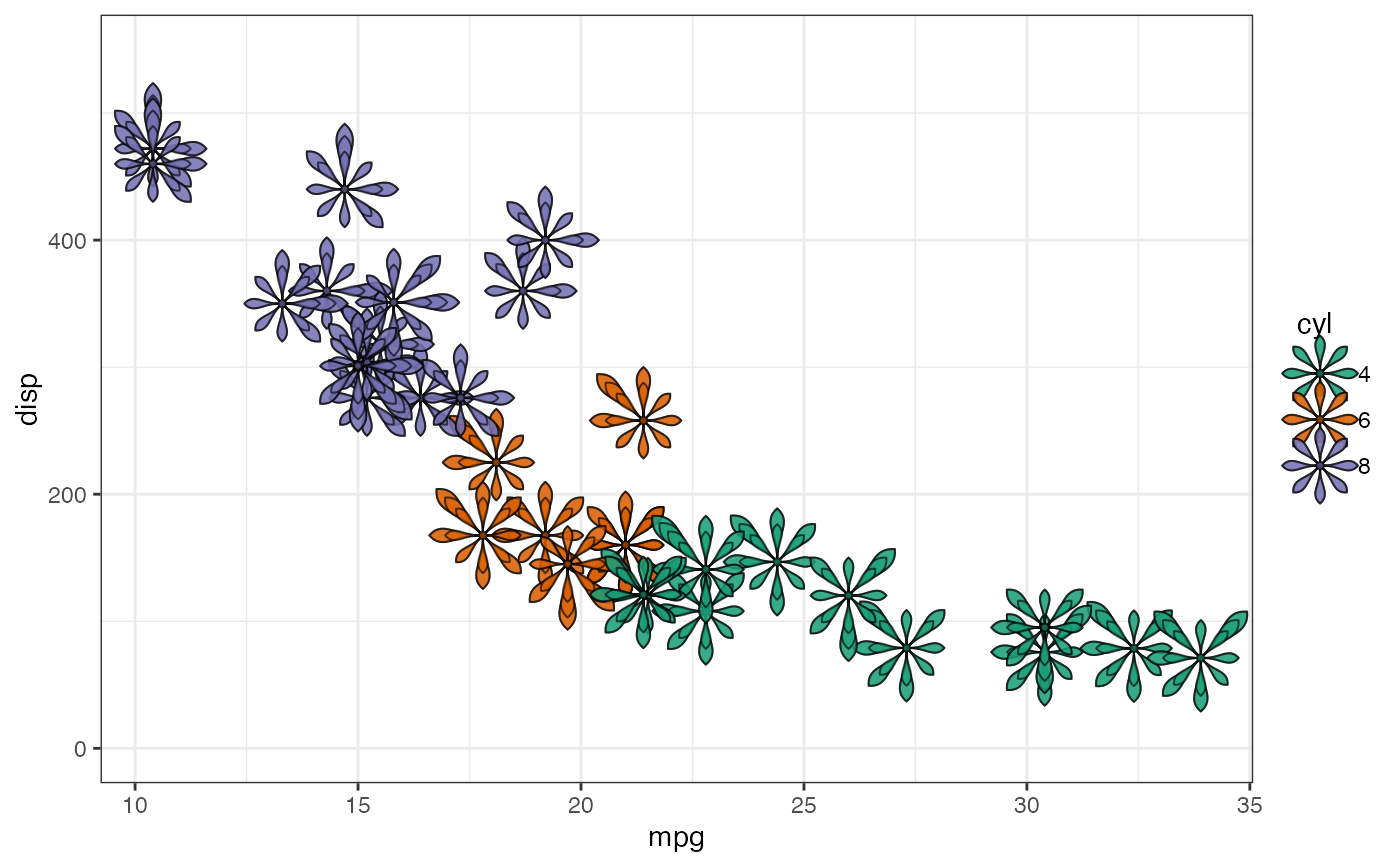

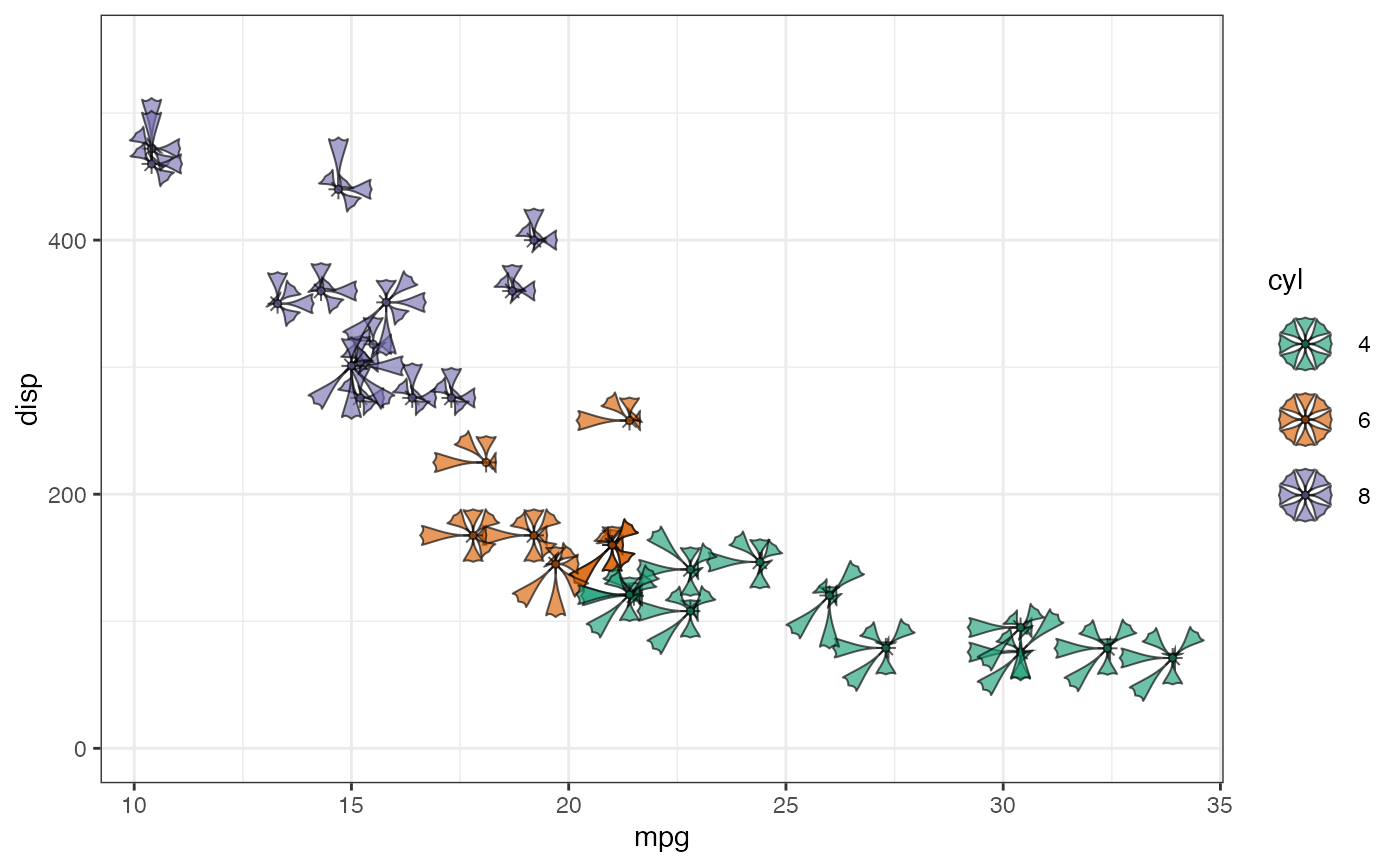

# Petal shape variations ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp, fill = cyl),
                   cols = zs, size = 10,
                   petal.base.shape = 5, petal.width = 0.25,
                   alpha =  0.8) +
  ylim(c(-0, 550))


ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp, fill = cyl),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   petal.tip.notch = 0.3,
                   alpha =  0.8) +
  ylim(c(-0, 550))


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Petals with multivariate colours ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

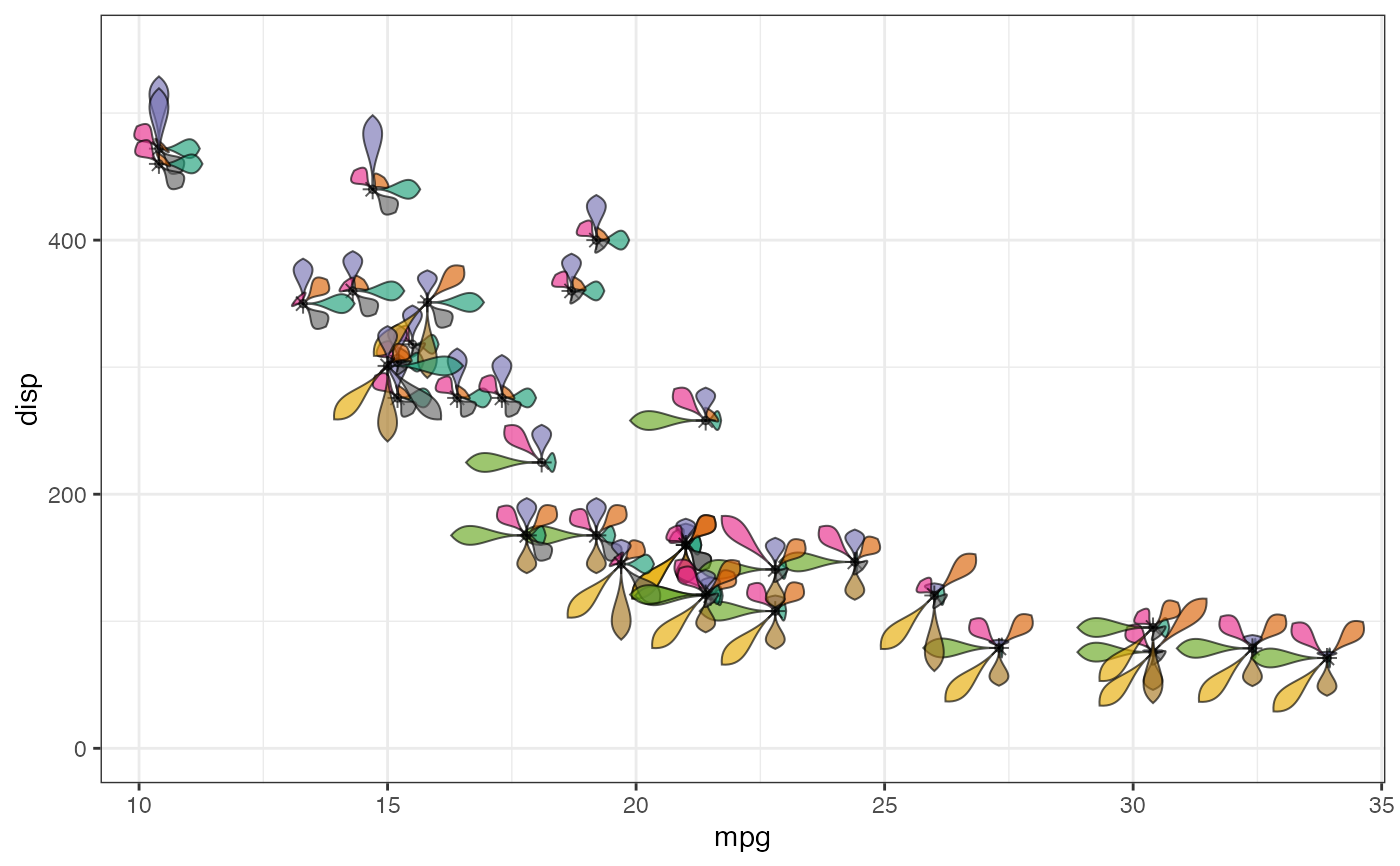

ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   fill.petal = RColorBrewer::brewer.pal(8, "Dark2"),
                   alpha =  0.8) +
  ylim(c(-0, 550))


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

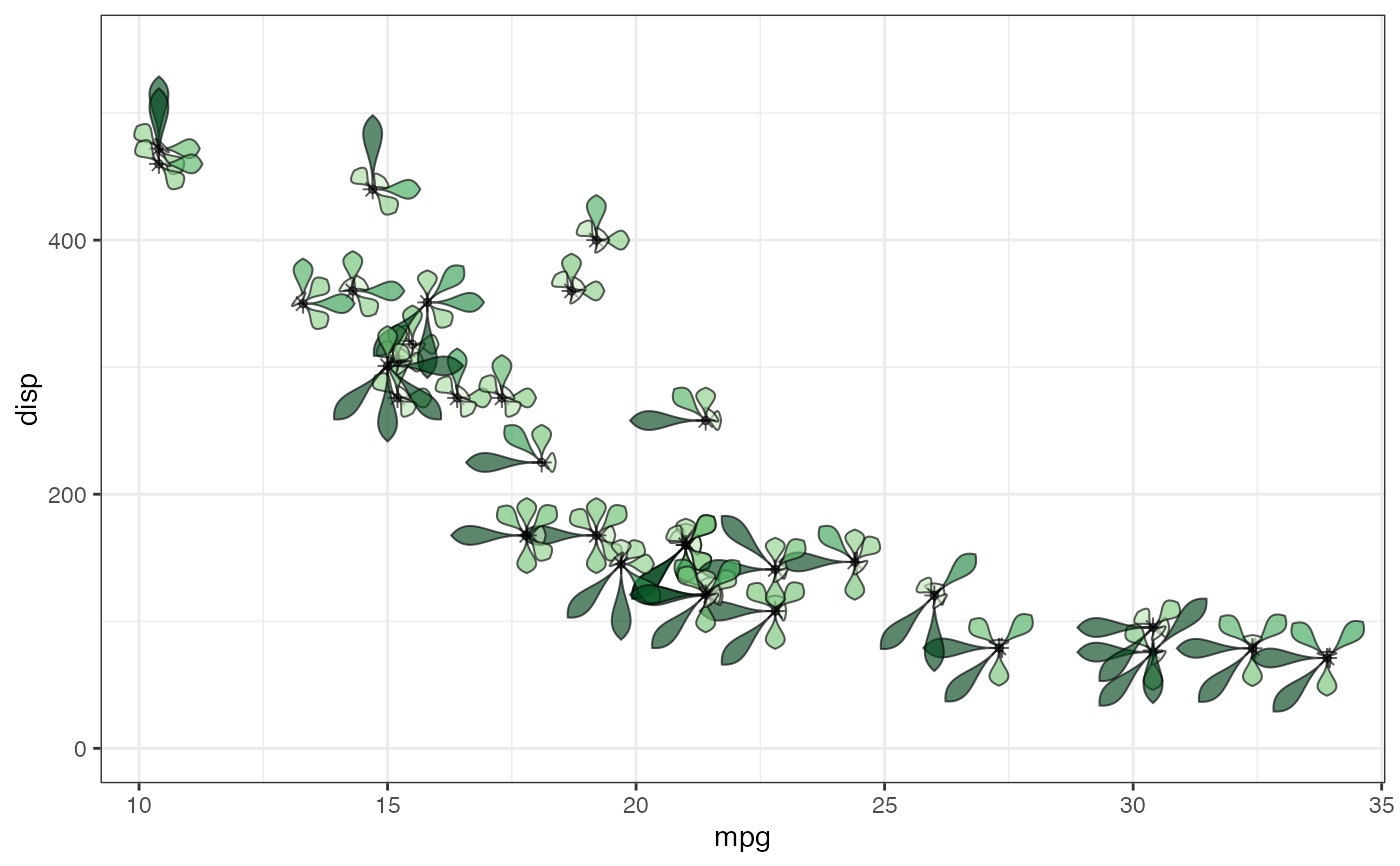

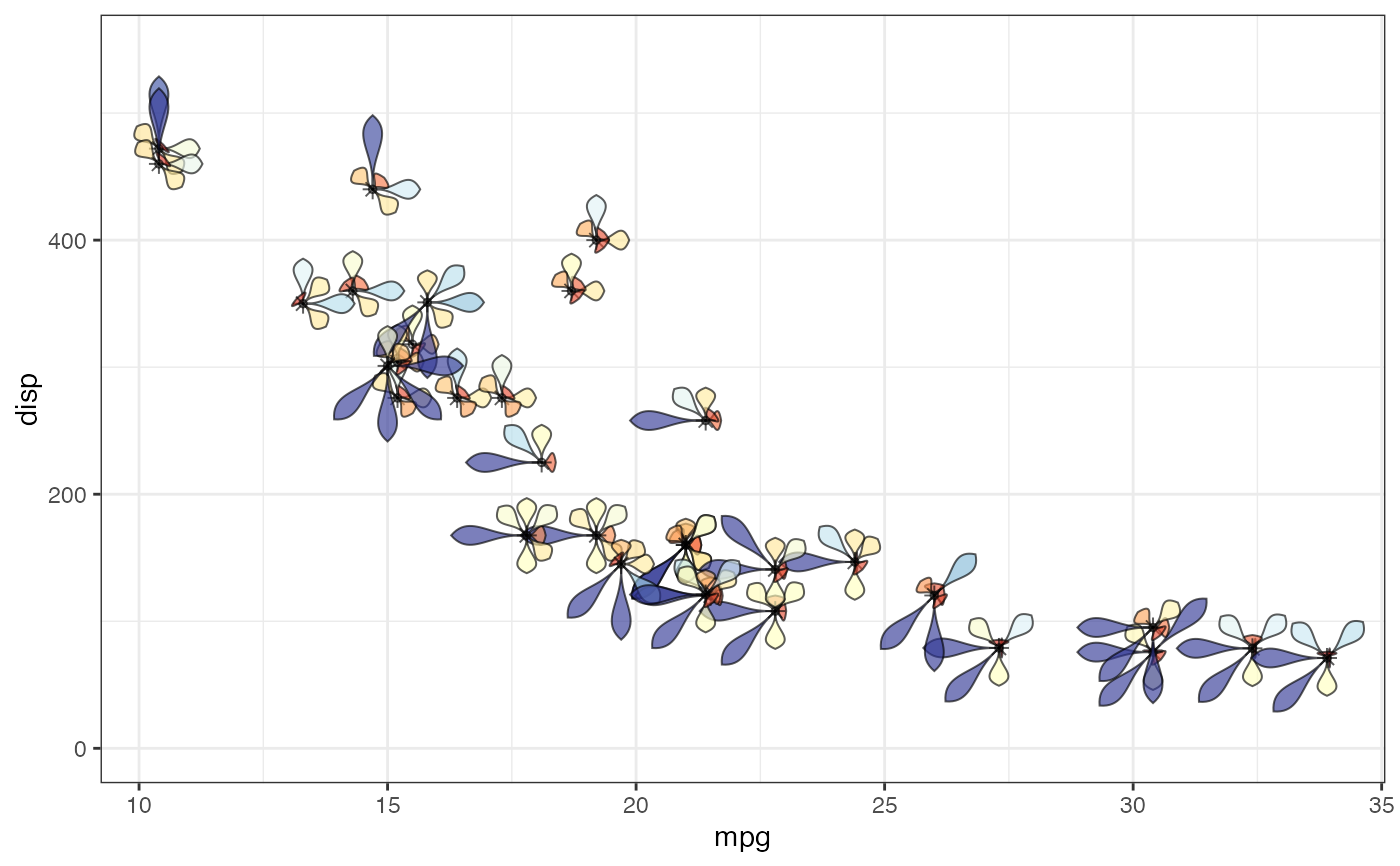

# Gradient fill ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   fill.gradient = "Greens",
                   alpha =  0.8) +
  ylim(c(-0, 550))


ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   fill.gradient = "RdYlBu",
                   alpha =  0.8) +
  ylim(c(-0, 550))


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Faceted ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

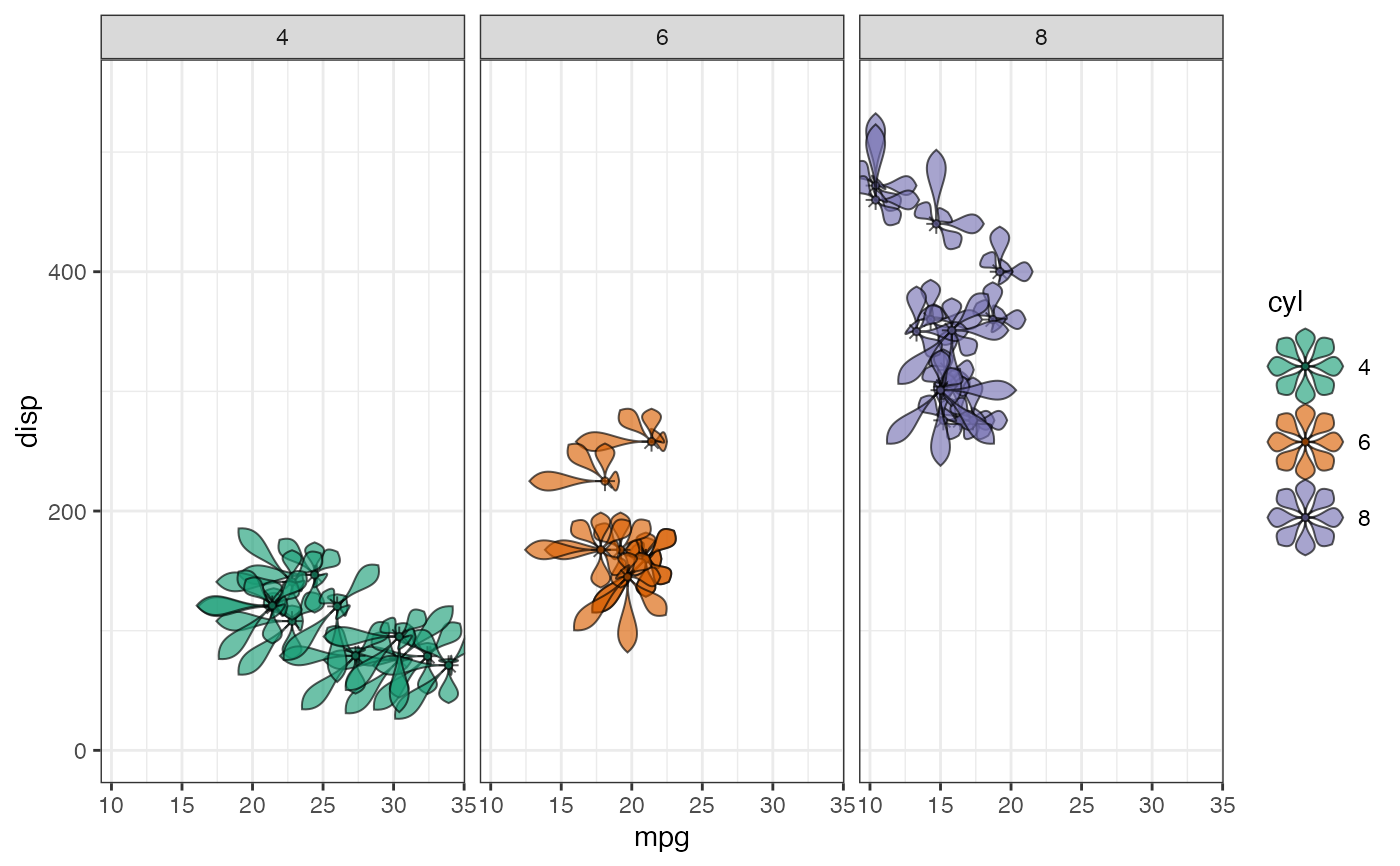

ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp, fill = cyl),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   alpha =  0.8) +
  ylim(c(-0, 550)) +
  facet_grid(. ~ cyl)

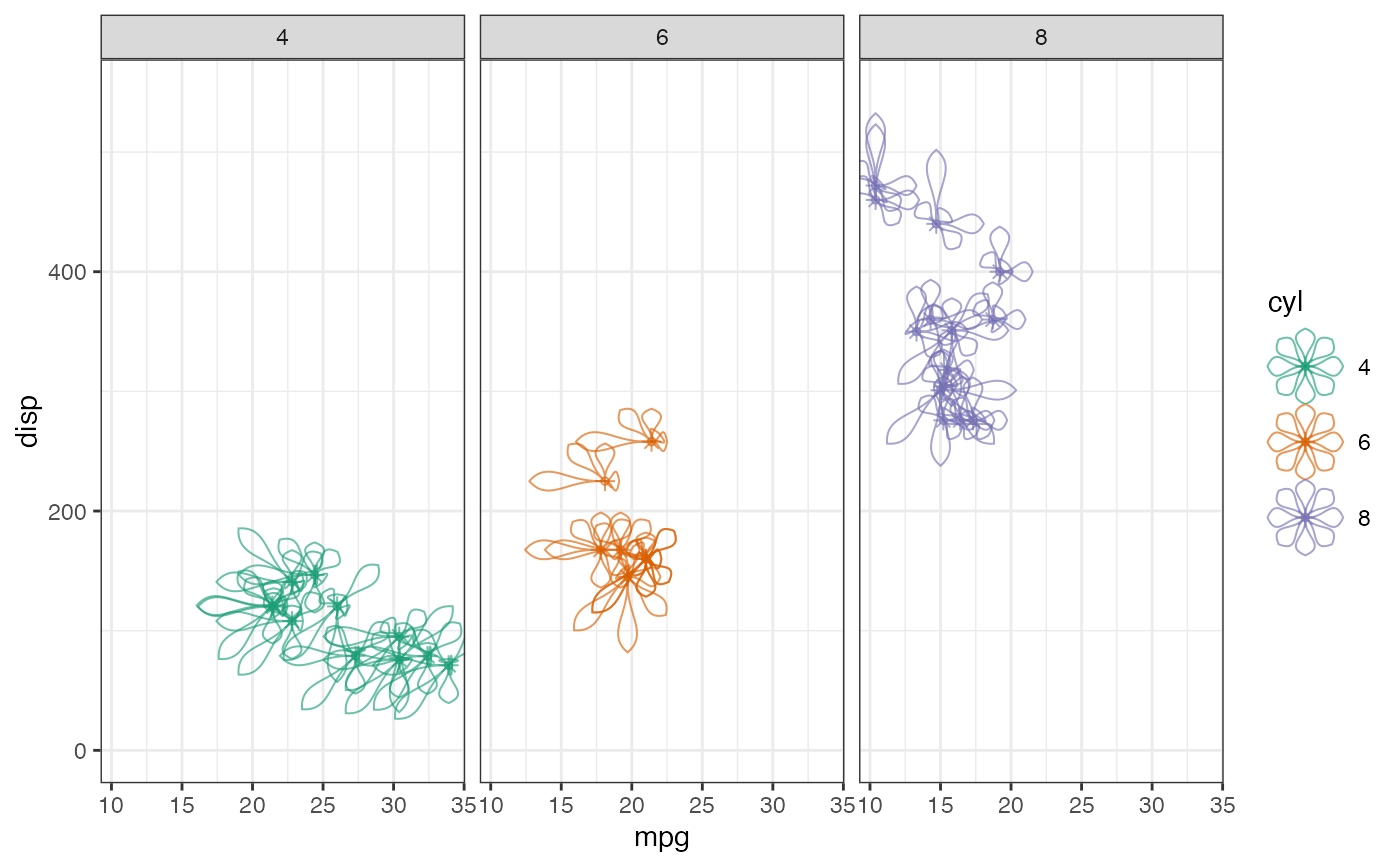

ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp, colour = cyl),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   alpha =  0.8) +
  ylim(c(-0, 550)) +
  facet_grid(. ~ cyl)

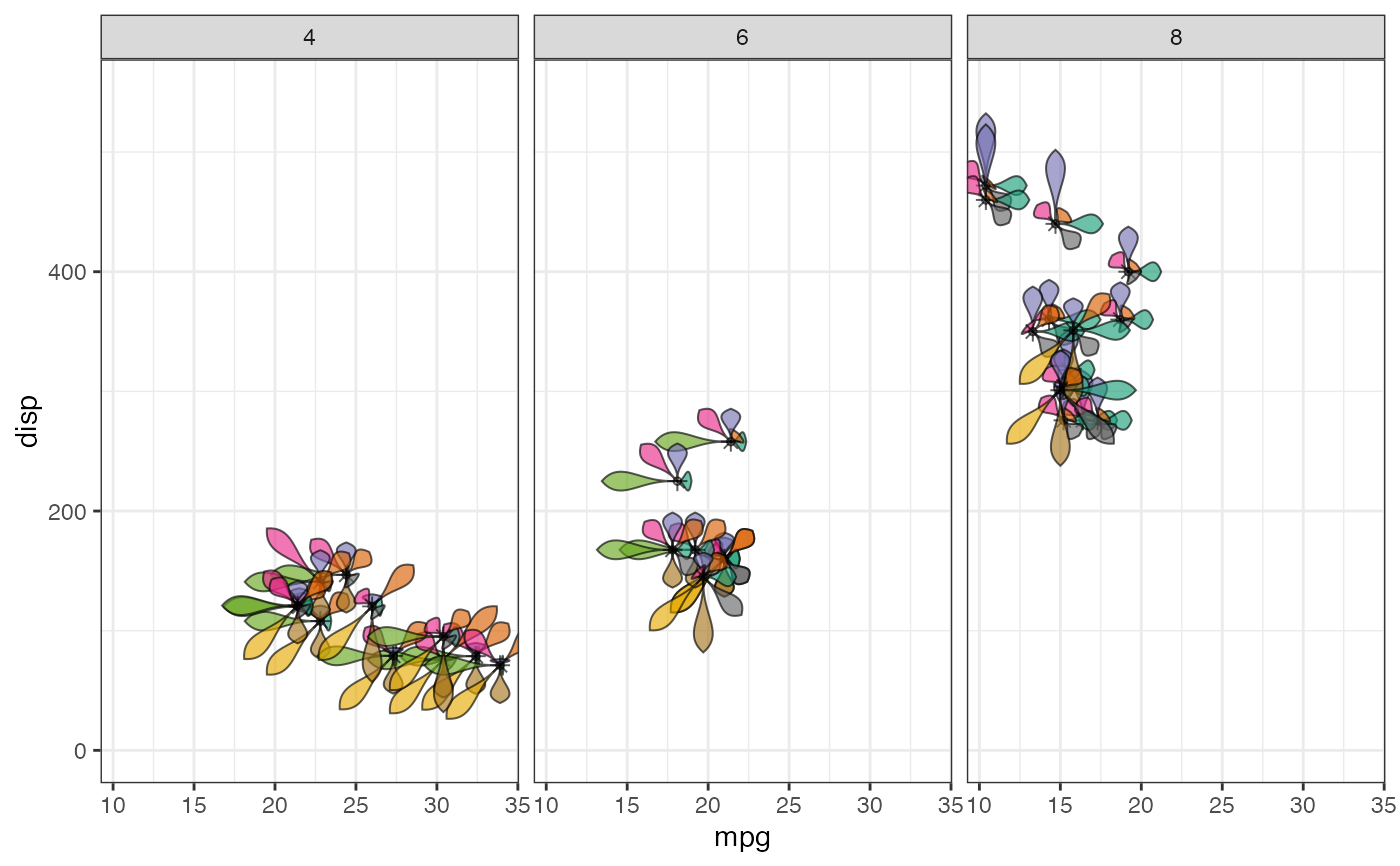

ggplot(data = mtcars) +
  geom_flowerglyph(aes(x = mpg, y = disp),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   fill.petal = RColorBrewer::brewer.pal(8, "Dark2"),
                   alpha =  0.8) +
  ylim(c(-0, 550)) +
  facet_grid(. ~ cyl)


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

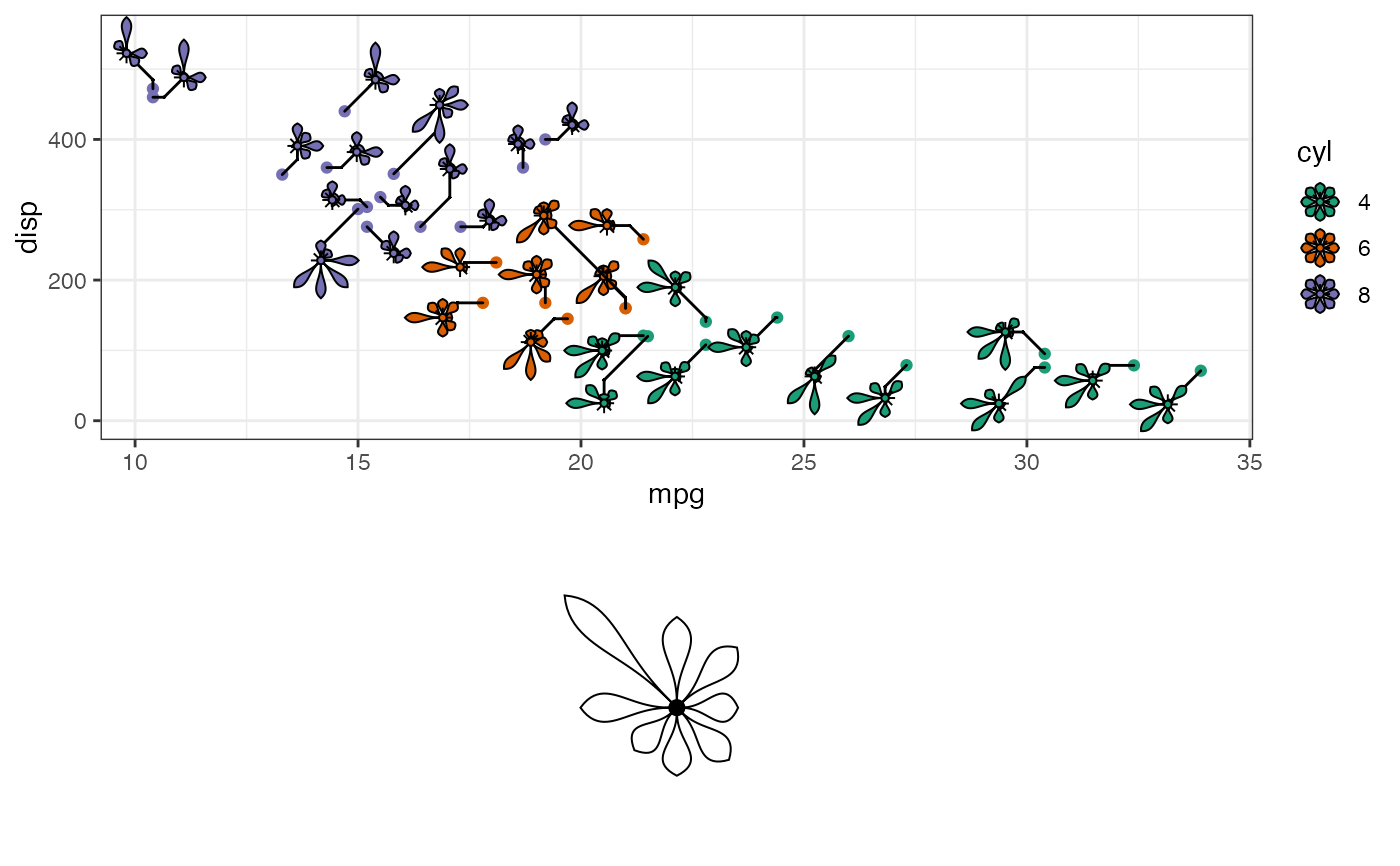

# Repel glyphs ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

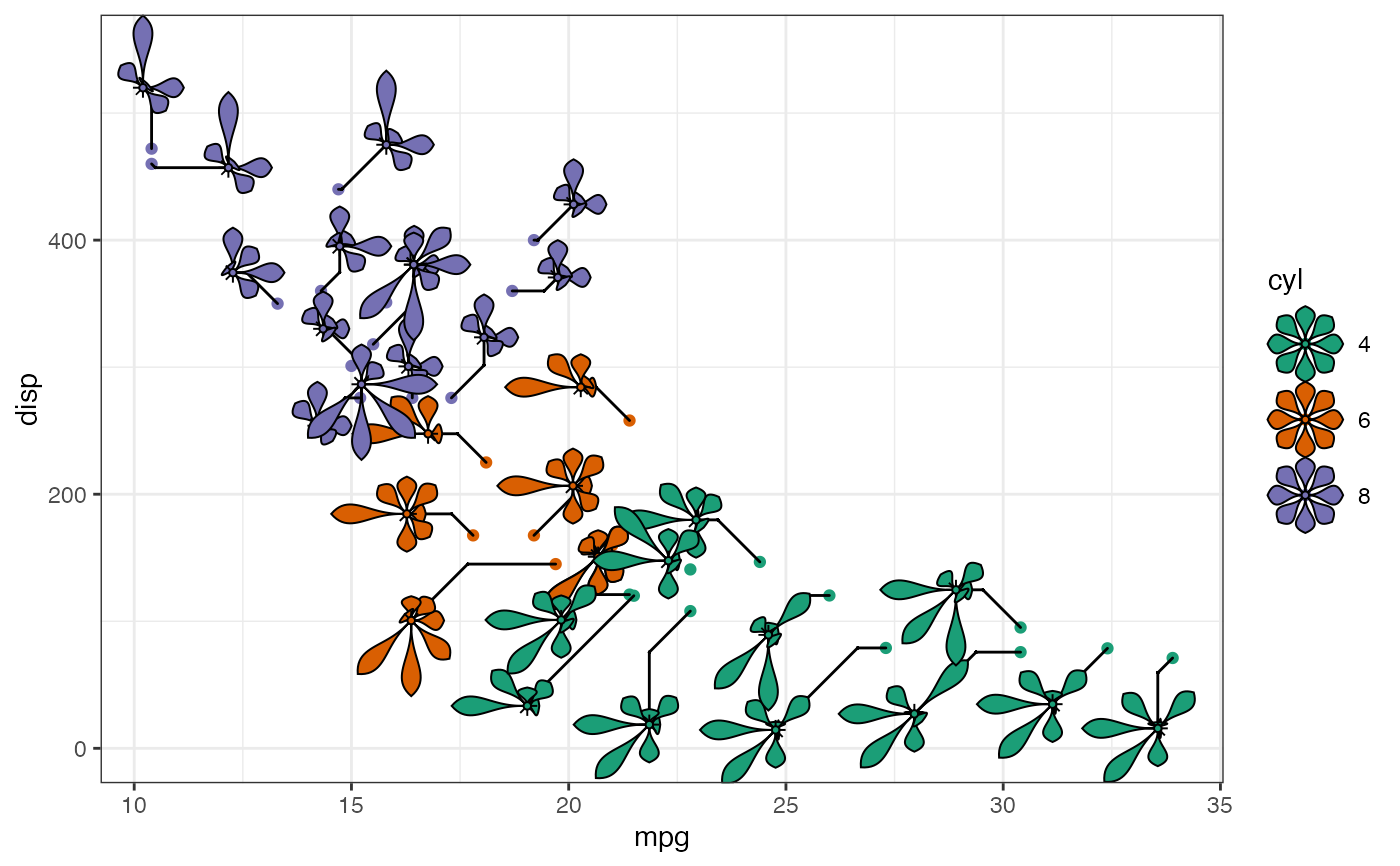

ggplot(data = mtcars) +
  geom_point(aes(x = mpg, y = disp, colour = cyl)) +
  geom_flowerglyph(aes(x = mpg, y = disp, fill = cyl),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   alpha =  1, repel = TRUE) +
  ylim(c(-0, 550))
#> Warning: 3 glyphs have too many overlaps.
#> Consider increasing "max.overlaps"

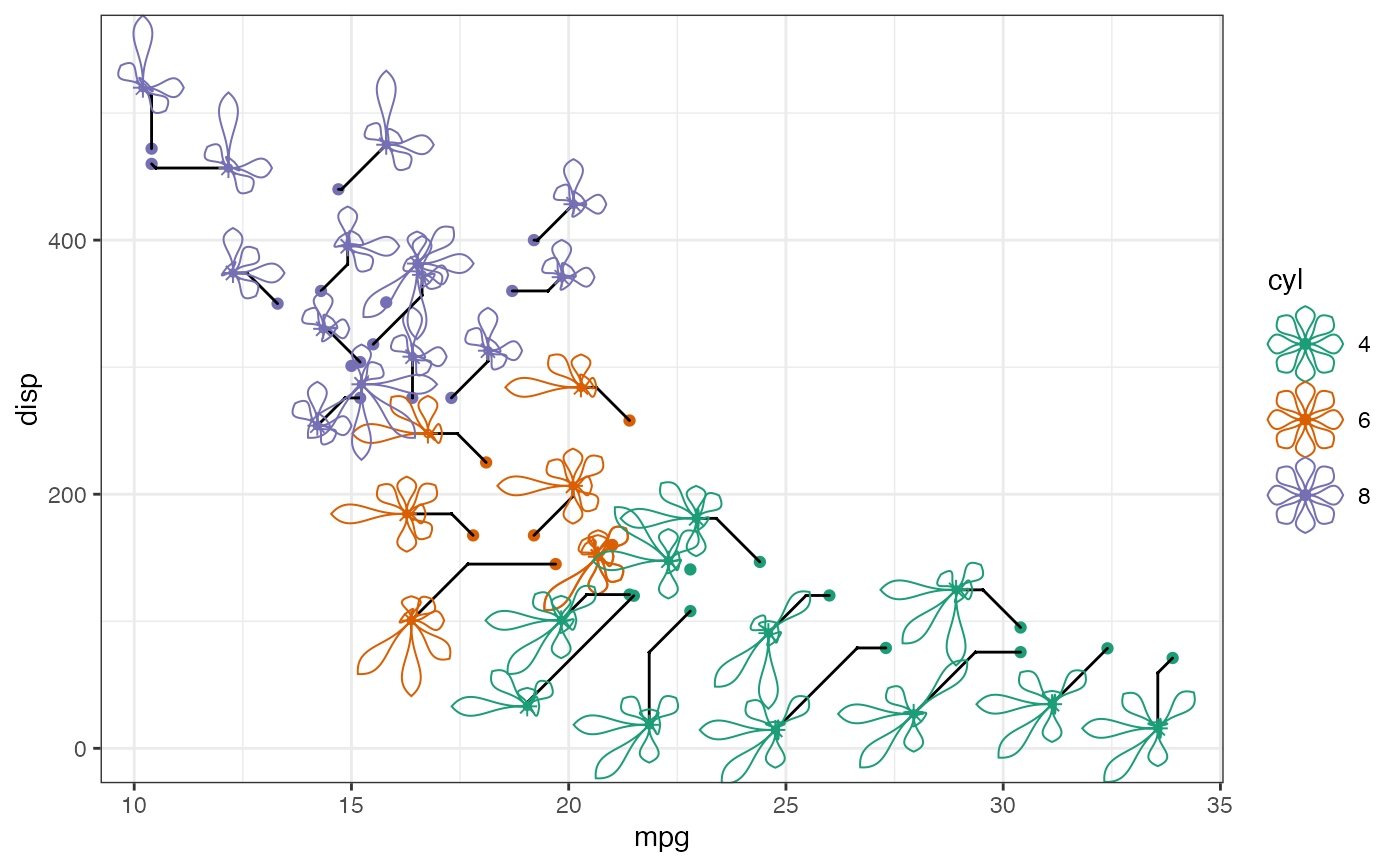

ggplot(data = mtcars) +
  geom_point(aes(x = mpg, y = disp, colour = cyl)) +
  geom_flowerglyph(aes(x = mpg, y = disp, colour = cyl),
                   cols = zs, size = 10,
                   petal.base.shape = 3, petal.width = 0.25,
                   alpha =  1, repel = TRUE) +
  ylim(c(-0, 550))
#> Warning: 3 glyphs have too many overlaps.
#> Consider increasing "max.overlaps"


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Grid as nested petals ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

ggplot(data = mtcars_fct) +
  geom_flowerglyph(aes(x = mpg, y = disp, fill = cyl),
                   cols = zs, size = 4,
                   petal.base.shape = 3, petal.width = 0.25,
                   alpha =  0.8, draw.grid = TRUE) +
  ylim(c(-0, 550))


ggplot(data = mtcars_fct) +
  geom_flowerglyph(aes(x = mpg, y = disp, fill = cyl),
                   cols = zs, size = 5,
                   petal.base.shape = 3, petal.width = 0.25,
                   scale.length = FALSE, scale.area = TRUE,
                   alpha =  0.8, draw.grid = TRUE) +
  ylim(c(-0, 550))


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Legend options ----
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

# Theme modifications for legend
legend_theme <-
  theme_bw(base_size = 7.5) +
  theme(legend.direction = "vertical",
        legend.box = "horizontal",
        legend.position = "bottom",
        legend.text = element_text(margin = margin(l = 7)),
        legend.key.height = unit(1.5, 'lines'))

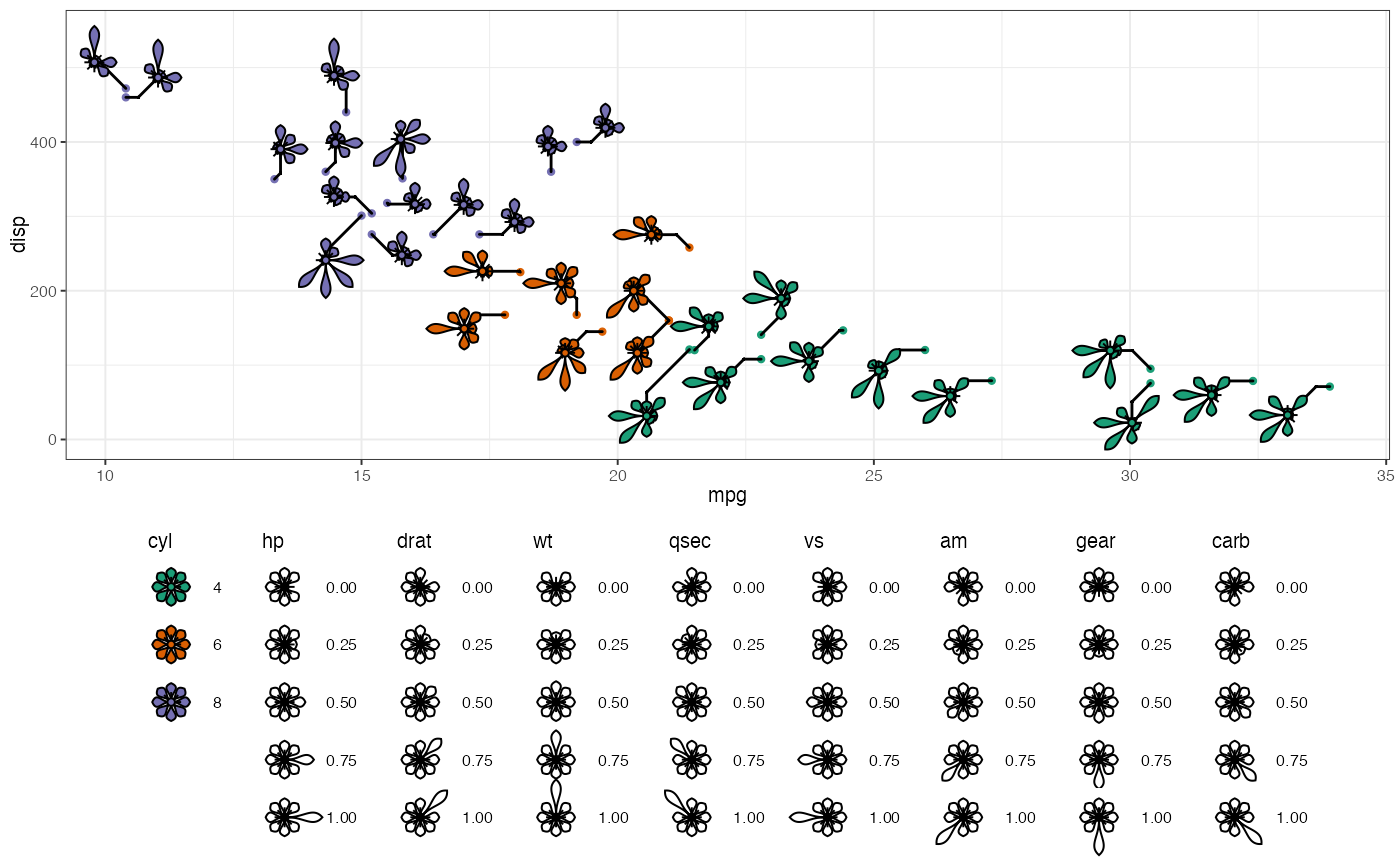

# Glyph variable-wise legends
ggplot(data = mtcars) +
  geom_point(aes(x = mpg, y = disp, colour = cyl), show.legend = FALSE) +
  geom_flowerglyph(aes(x = mpg, y = disp, fill = cyl),
                   cols = zs, size = 5,
                   petal.base.shape = 3, petal.width = 0.25,
                   alpha =  1, repel = TRUE) +
  ylim(c(-0, 550)) +
  scale_z_continuous(z = zs) +
  guide_z_order(z = zs, default_aes = "fill") +
  legend_theme


# Using custom guide
# flowerglyphGrob
guide_flowergrob <-
  flowerglyphGrob(z = c(0.54, 0.75, 0.8, 1.4, 0.85, 0.53, 0.6, 0.65),
                  petal.base.shape = 3, petal.width = 0.25,
                  size = 15)
# guide_flowergrob <-
#   addlabel.glyphGrob(grob = guide_flowergrob, label = zs,
#                      push = 1, segment = FALSE)

ggplot(data = mtcars) +
  geom_point(aes(x = mpg, y = disp, colour = cyl), show.legend = FALSE) +
  geom_flowerglyph(aes(x = mpg, y = disp, fill = cyl),
                   cols = zs, size = 5,
                   petal.base.shape = 3, petal.width = 0.25,
                   alpha =  1, repel = TRUE) +
  ylim(c(-0, 550)) +
  guides(fill = guide_legend(order = 1, position = "right"),
         custom = guide_custom(guide_flowergrob,
                               width = unit(0.1, "npc"),
                               height = unit(0.1, "npc"),
                               position = "bottom",
                               theme = theme(legend.margin = margin(t = 40, b = 30))))

# }
