Draw a Dot Profile Glyph

Source: R/dotglyphGrob.R
dotglyphGrob.Rd

Uses Grid graphics to draw a dot profile glyph (Chambers et al. 1983; duToit et al. 1986) .

Usage

dotglyphGrob(
  x = 0.5,
  y = 0.5,
  z,
  radius = 1,
  col = "black",
  fill = NA,
  lwd = 1,
  alpha = 1,
  mirror = FALSE,
  flip.axes = FALSE
)

Arguments

x

A numeric vector or unit object specifying x-locations.

y

A numeric vector or unit object specifying y-locations.

z

A numeric vector specifying the values to be plotted as dimensions of the dot glyph (number of stacked dots).

radius

The radius of the glyphs.

col

The line colour.

fill

The fill colour.

lwd

The line width.

alpha

The alpha transparency value.

mirror

logical. If TRUE, mirror profile is plotted.

flip.axes

logical. If TRUE, axes are flipped.

Value

A grob object.

References

Chambers JM, Cleveland WS, Kleiner B, Tukey PA (1983). Graphical Methods for Data Analysis. Chapman and Hall/CRC, Boca Raton. ISBN 978-1-351-07230-4.

duToit SHC, Steyn AGW, Stumpf RH (1986). Graphical Exploratory Data Analysis, Springer Texts in Statistics. Springer-Verlag, New York. ISBN 978-1-4612-9371-2.

See also

geom_dotglyph

Other grobs: metroglyphGrob(), pieglyphGrob(), profileglyphGrob(), starglyphGrob(), tileglyphGrob()

Examples

library(ggmultiglyph)
library(grid)
library(gridExtra)

#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Mirror and flip.axes combination
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2)

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE)

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE)

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE)

grid.arrange(dg1, dg2, nrow = 1)

grid.arrange(dg3, dg4, nrow = 1)


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust radius
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 0.5)

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2)

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 3)

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 0.5, mirror = TRUE)

dg5 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE)

dg6 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 3, mirror = TRUE)

grid.arrange(dg1, dg2, dg3, nrow = 1)

grid.arrange(dg4, dg5, dg6, nrow = 1)


dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 0.5, flip.axes = TRUE)

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE)

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 3, flip.axes = TRUE)

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 0.5, mirror = TRUE,
                    flip.axes = TRUE)

dg5 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE)

dg6 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 3, mirror = TRUE,
                    flip.axes = TRUE)

grid.arrange(dg1, dg2, dg3, nrow = 1, ncol = 4)

grid.arrange(dg4, dg5, dg6, nrow = 1)


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust dot line width
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2)

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, lwd = 3)

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, lwd = 5)

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE)

dg5 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE, lwd = 3)

dg6 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE, lwd = 5)

grid.arrange(dg1, dg2, dg3, nrow = 1)

grid.arrange(dg4, dg5, dg6, nrow = 1)


dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE)

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE, lwd = 3)

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE, lwd = 5)

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE)

dg5 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE, lwd = 3)

dg6 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE, lwd = 5)

grid.arrange(dg1, dg2, dg3, nrow = 1, ncol = 4)

grid.arrange(dg4, dg5, dg6, nrow = 1)


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

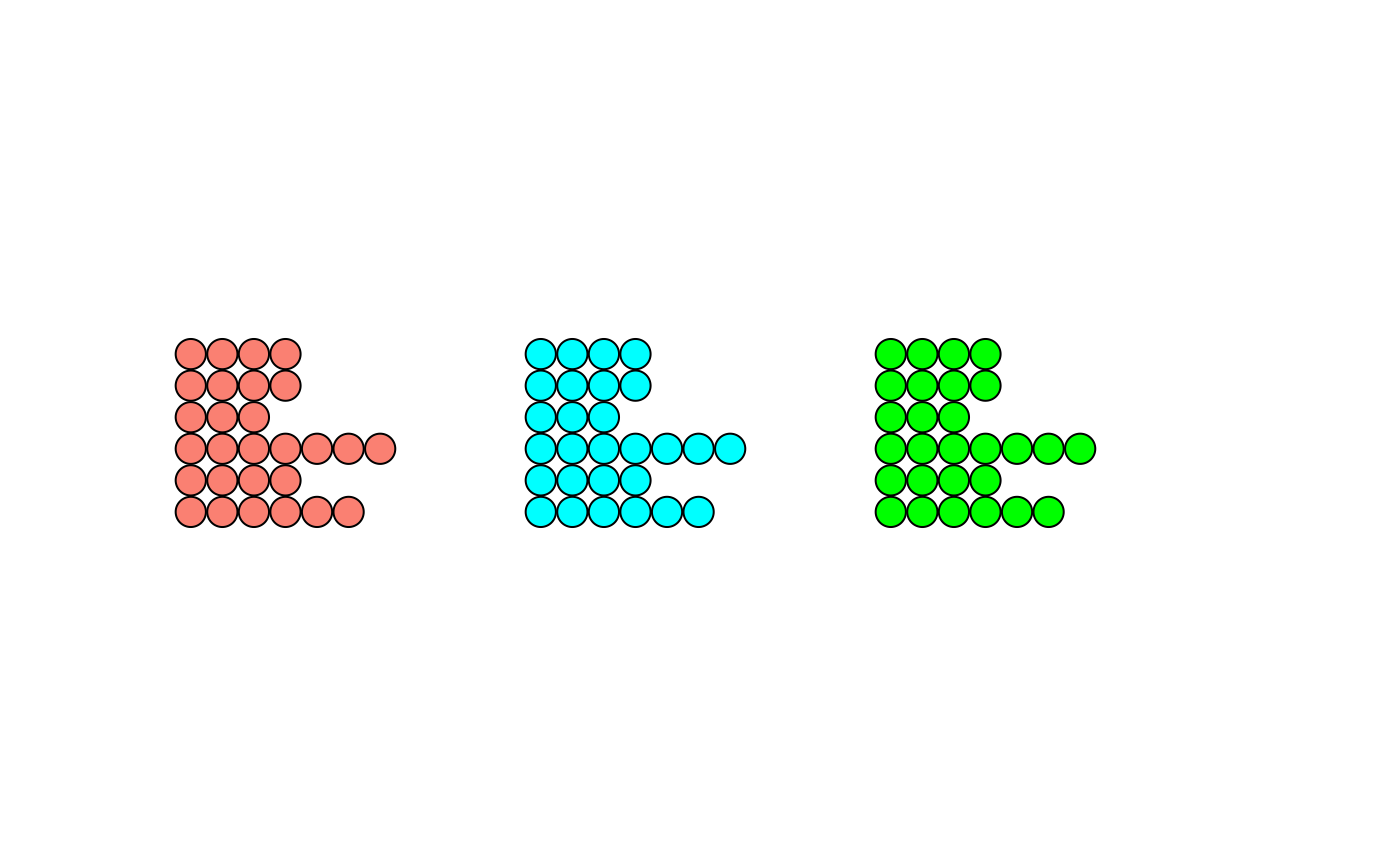

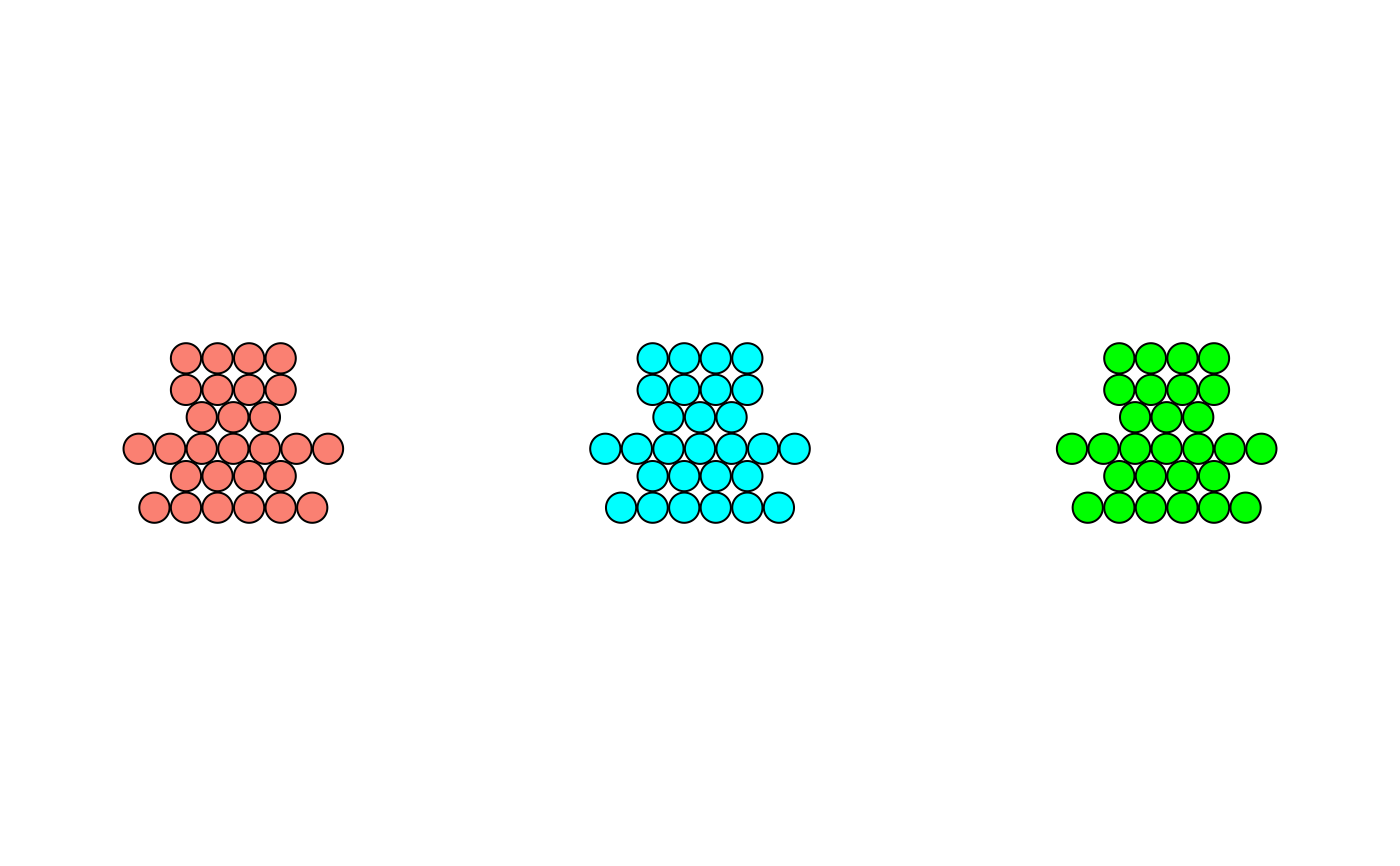

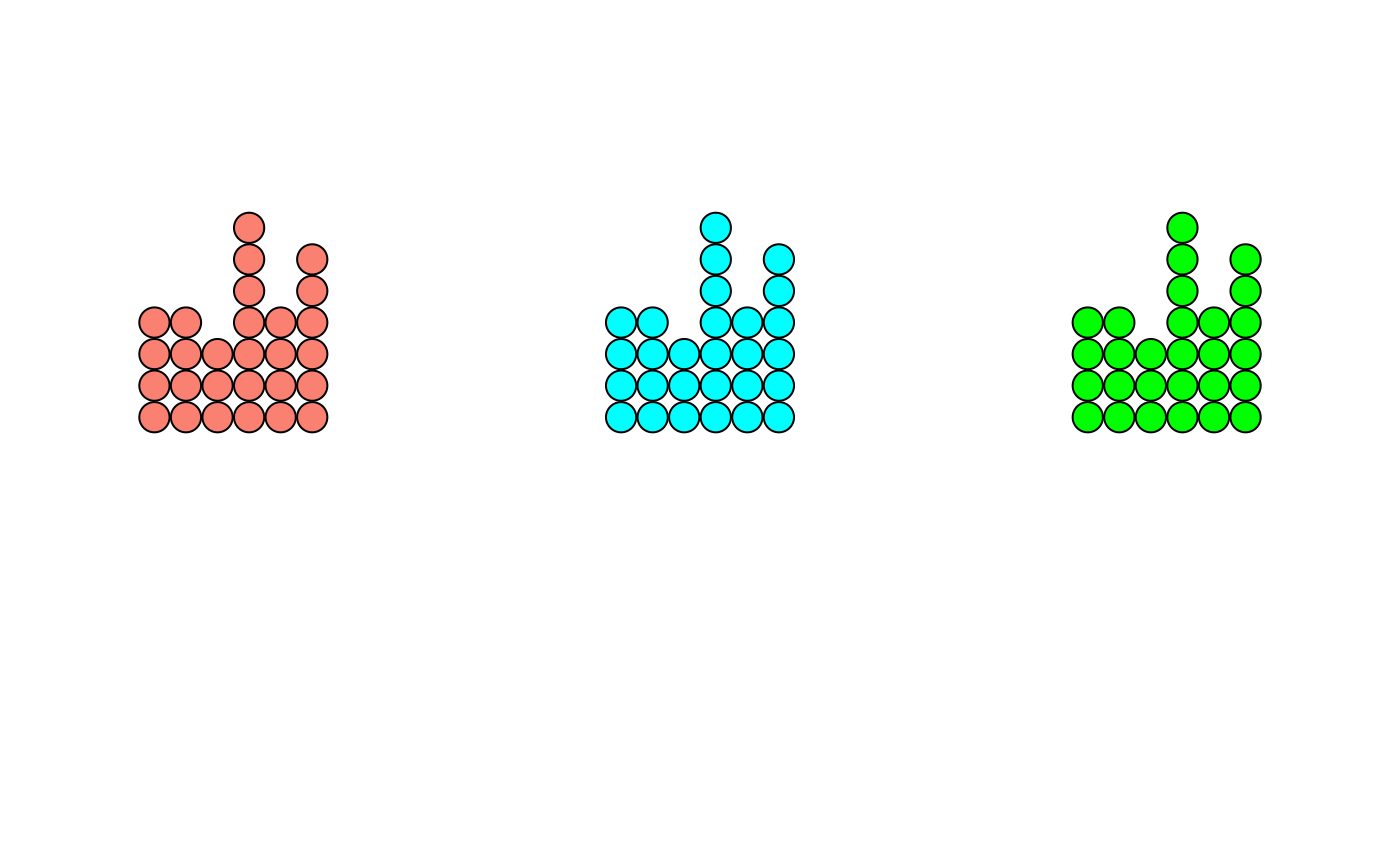

# Adjust dot fill
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, fill = "salmon")

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, fill = "cyan")

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, fill = "green")

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE, fill = "salmon")

dg5 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE, fill = "cyan")

dg6 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE, fill = "green")

grid.arrange(dg1, dg2, dg3, nrow = 1)

grid.arrange(dg4, dg5, dg6, nrow = 1)

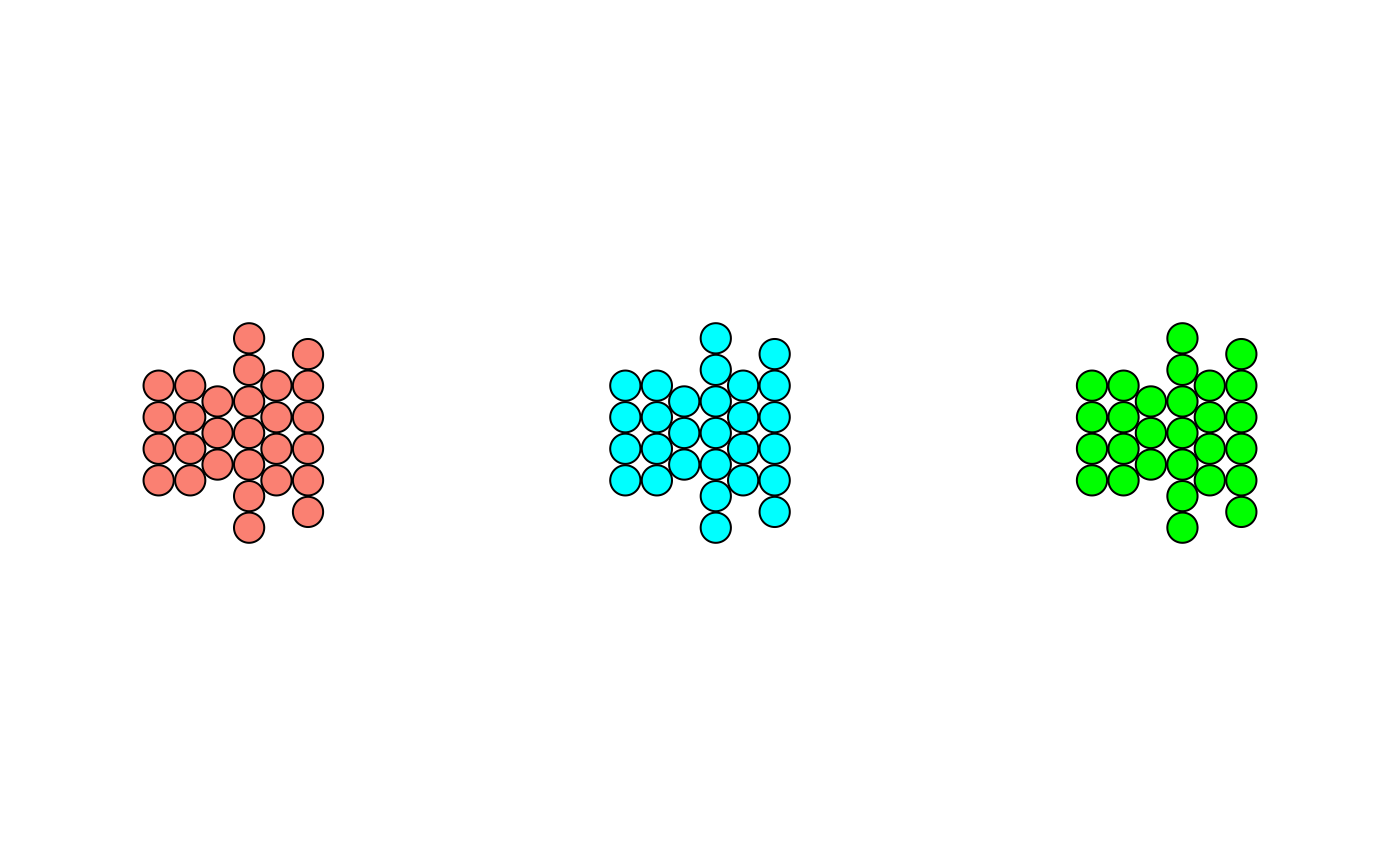

dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE, fill = "salmon")

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE, fill = "cyan")

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE, fill = "green")

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE, fill = "salmon")

dg5 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE, fill = "cyan")

dg6 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE, fill = "green")

grid.arrange(dg1, dg2, dg3, nrow = 1, ncol = 4)

grid.arrange(dg4, dg5, dg6, nrow = 1)


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

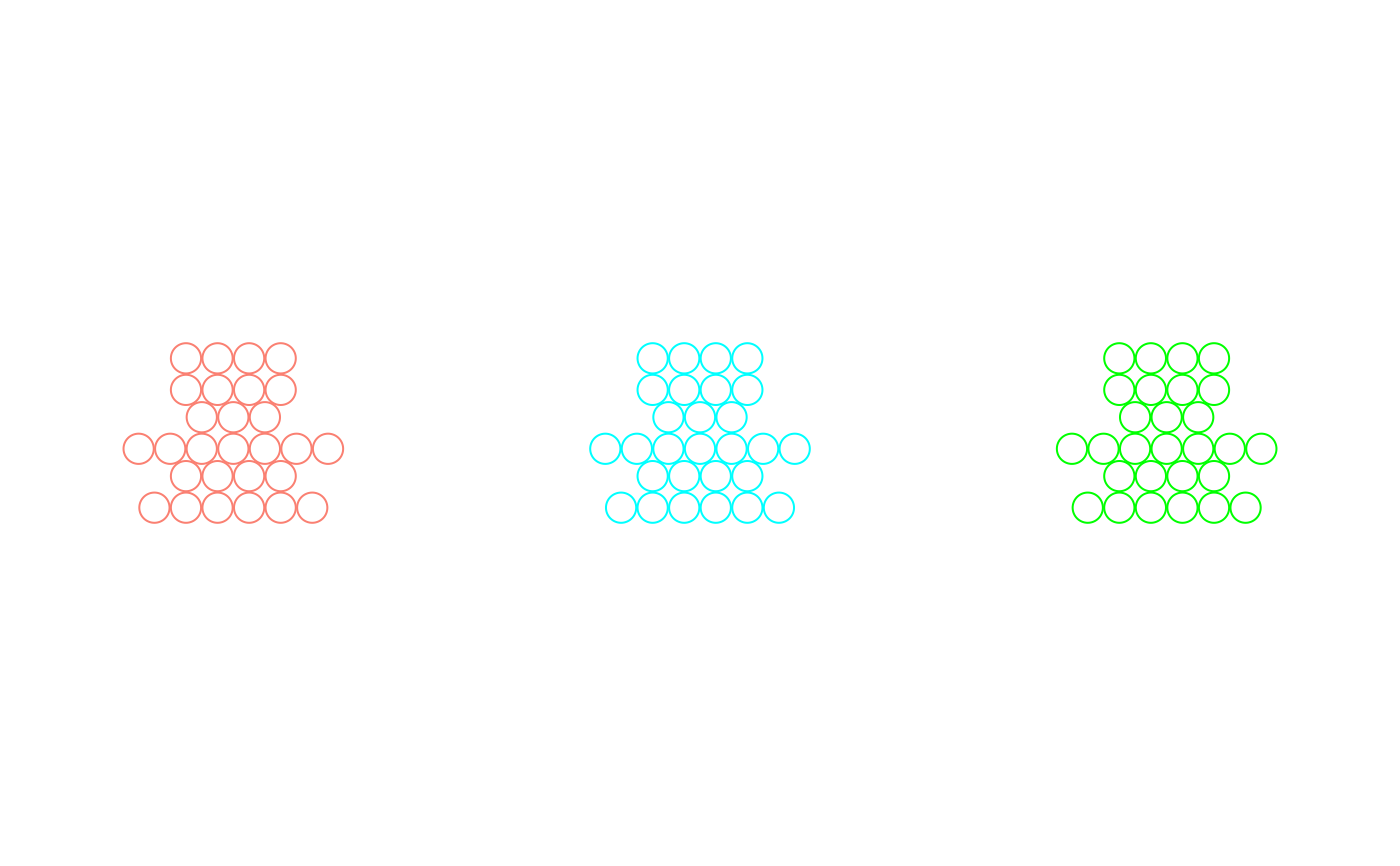

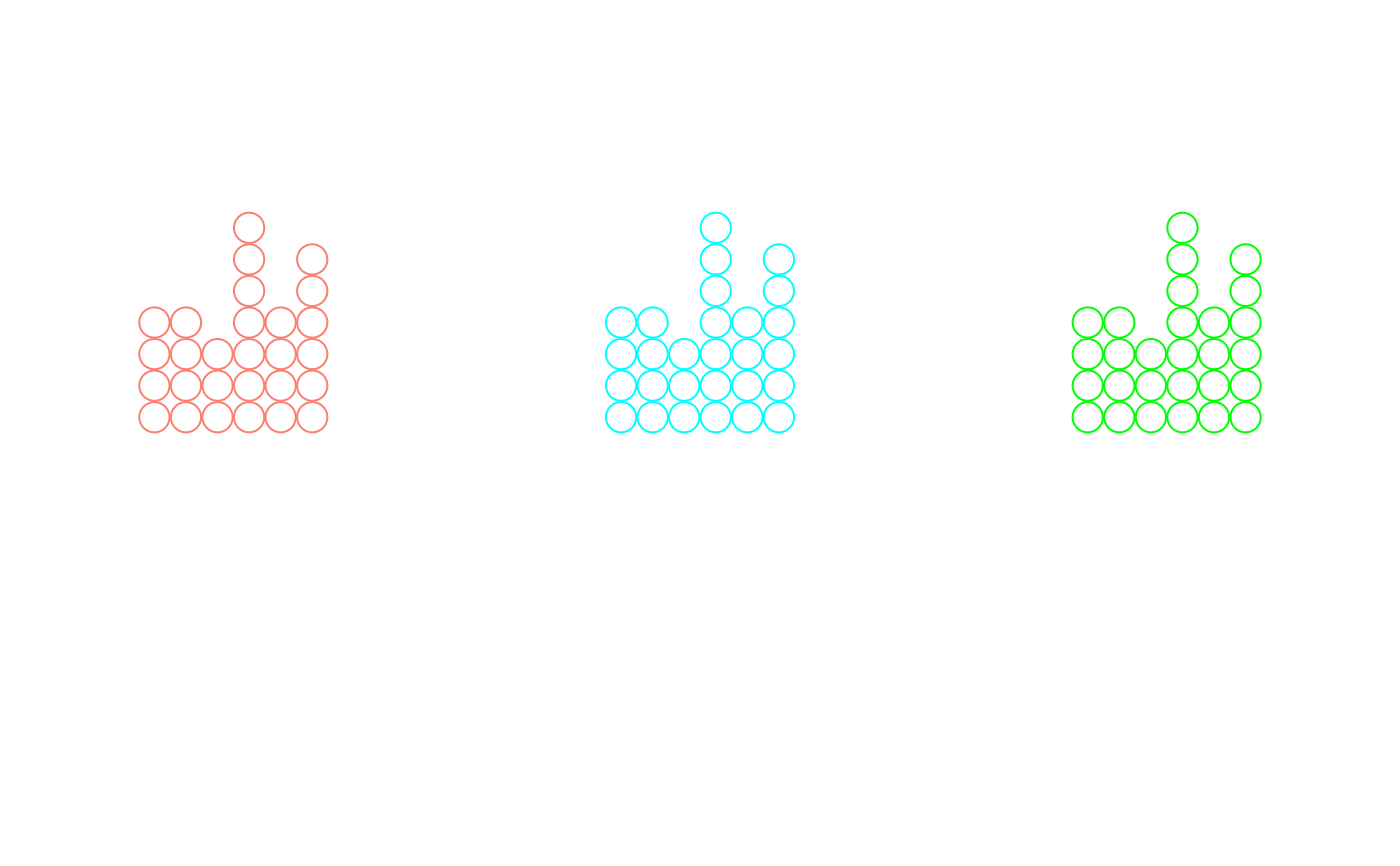

# Adjust dot line colour
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, col = "salmon")

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, col = "cyan")

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, col = "green")

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE, col = "salmon")

dg5 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE, col = "cyan")

dg6 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE, col = "green")

grid.arrange(dg1, dg2, dg3, nrow = 1)

grid.arrange(dg4, dg5, dg6, nrow = 1)

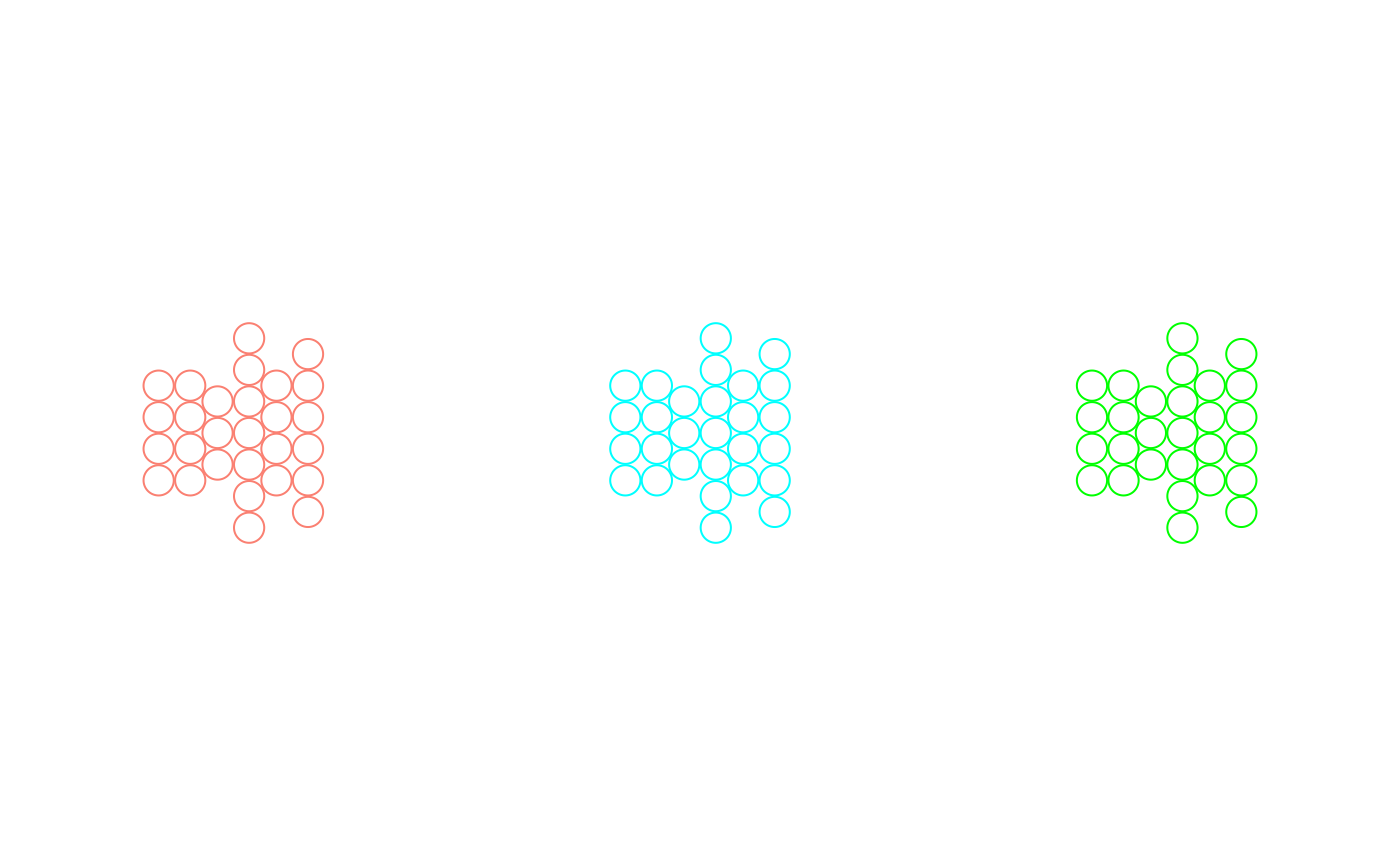

dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE, col = "salmon")

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE, col = "cyan")

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE, col = "green")

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE, col = "salmon")

dg5 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE, col = "cyan")

dg6 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE, col = "green")

grid.arrange(dg1, dg2, dg3, nrow = 1, ncol = 4)

grid.arrange(dg4, dg5, dg6, nrow = 1)


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

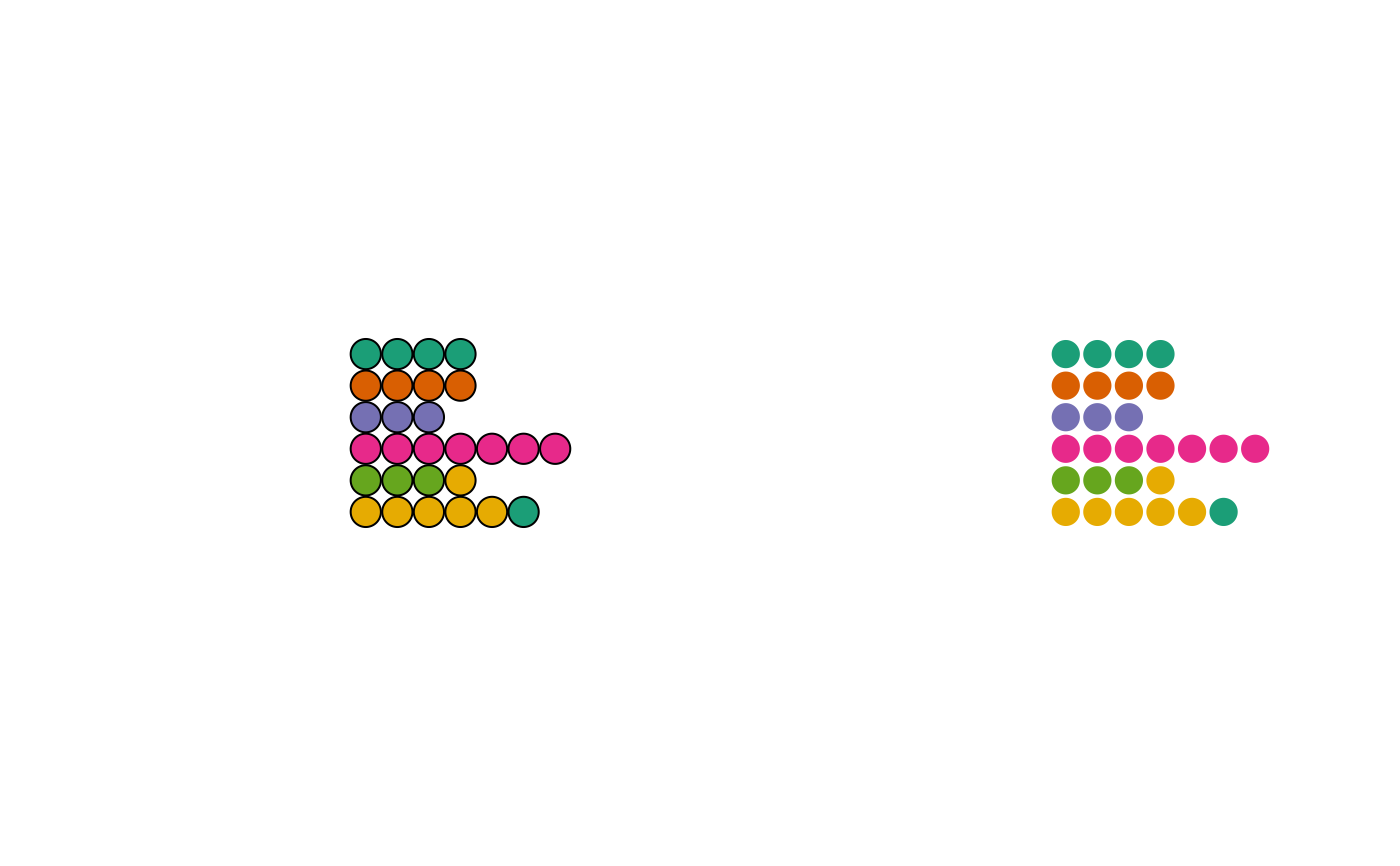

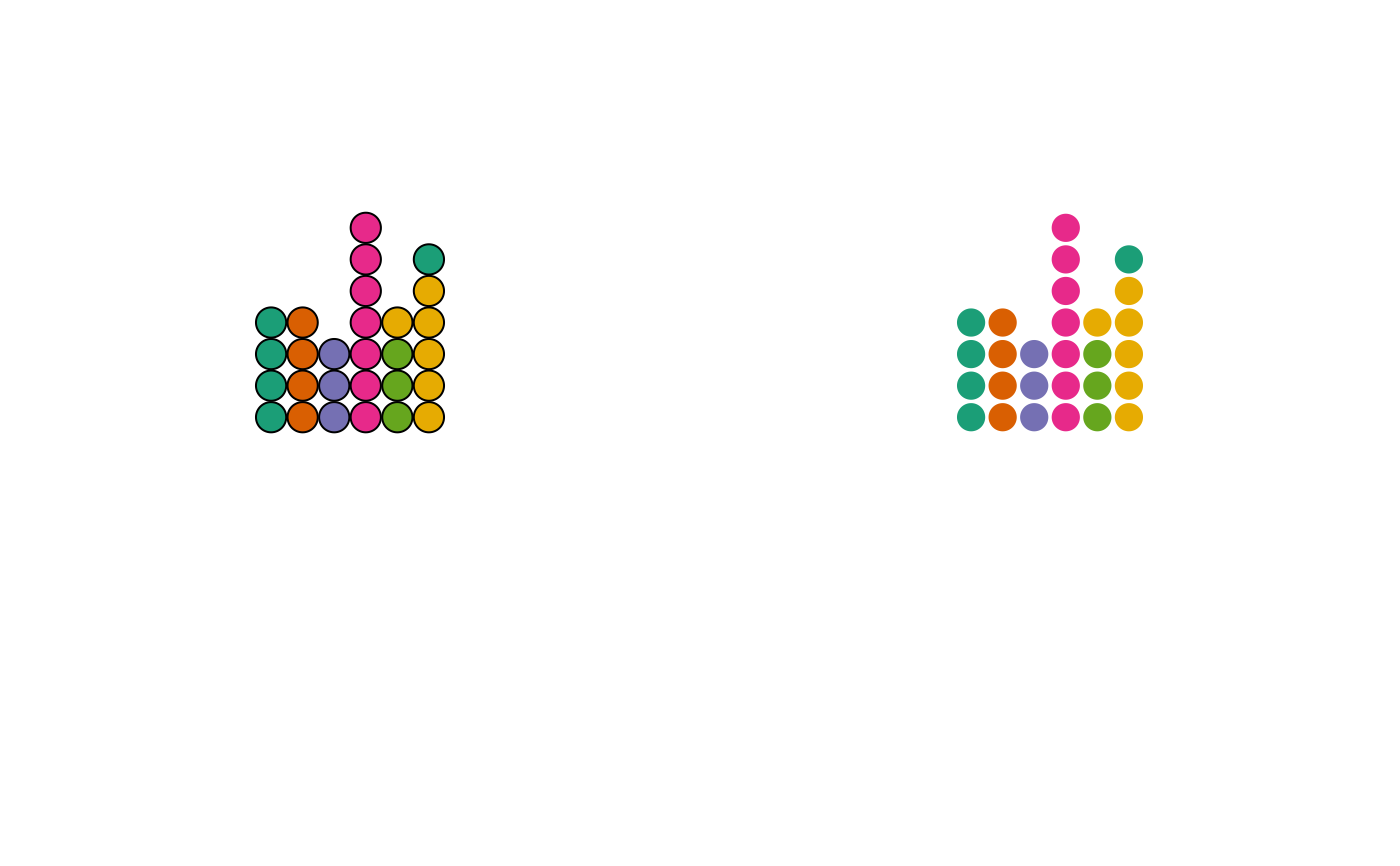

# Multivariate fill colour
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

clrs <- mapply(function(a, b) rep(a, b),
               RColorBrewer::brewer.pal(6, "Dark2"),
               round(c(4, 3.5, 2.7, 6.8, 3.4, 5.7)))
clrs <- unlist(clrs)

dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, fill = clrs,
                    col = "black")

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, fill = clrs,
                    col = "white")

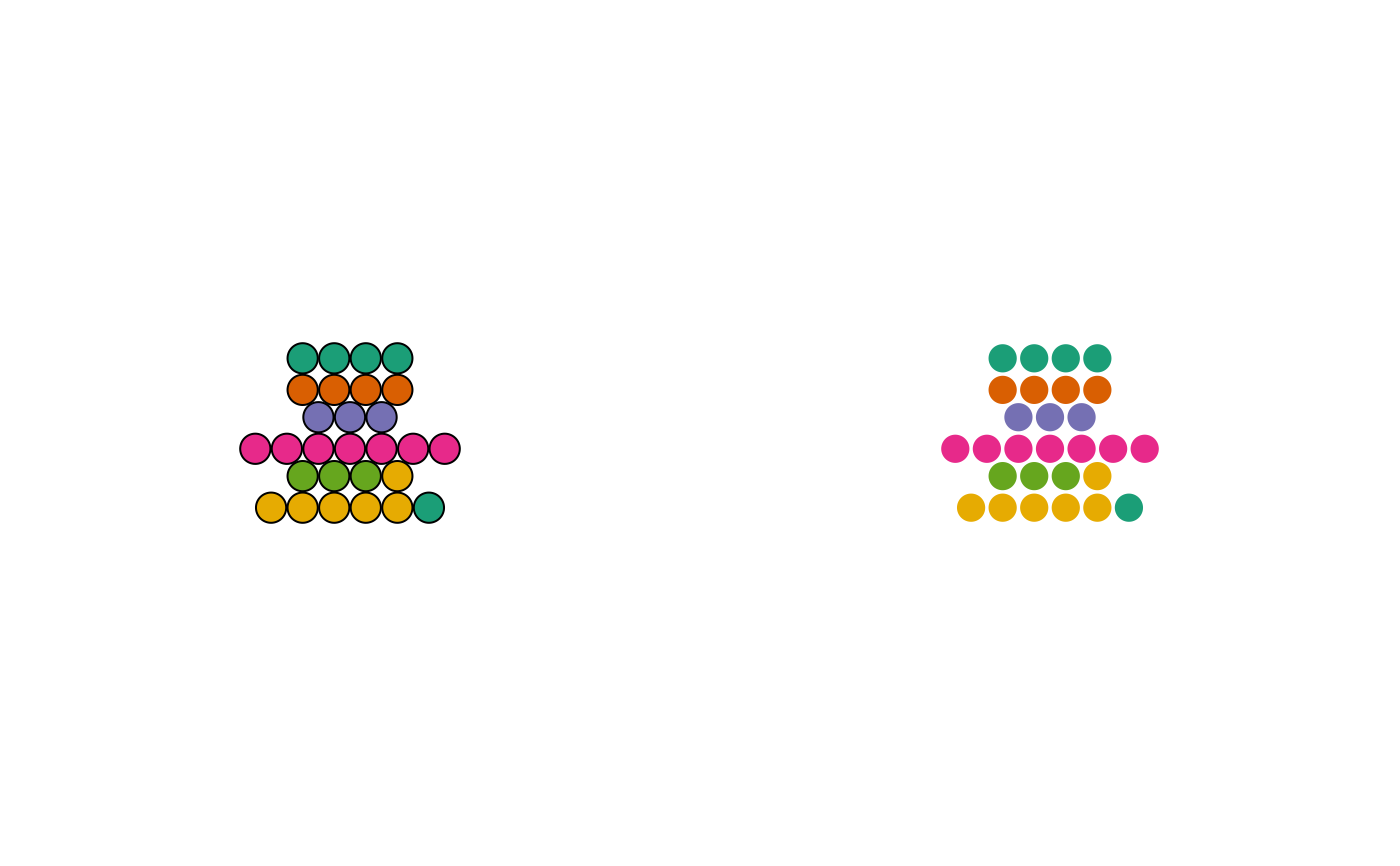

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE, fill = clrs,
                    col = "black")

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE, fill = clrs,
                    col = "white")

grid.arrange(dg1, dg2, nrow = 1)

grid.arrange(dg3, dg4, nrow = 1)

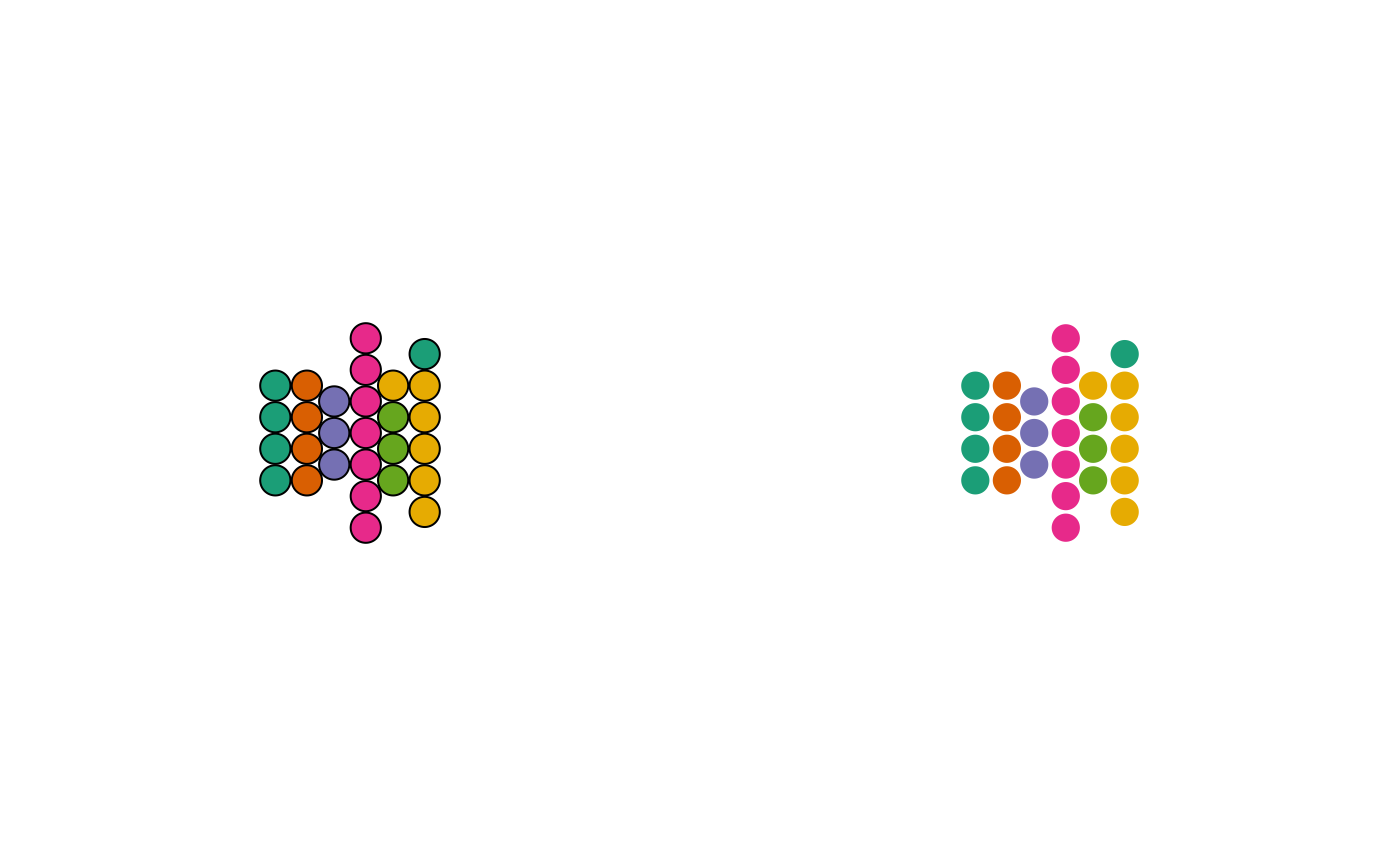

dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE, fill = clrs,
                    col = "black")

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE, fill = clrs,
                    col = "white")

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE, fill = clrs,
                    col = "black")

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE, fill = clrs,
                    col = "white")

grid.arrange(dg1, dg2, nrow = 1)

grid.arrange(dg3, dg4, nrow = 1)


#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

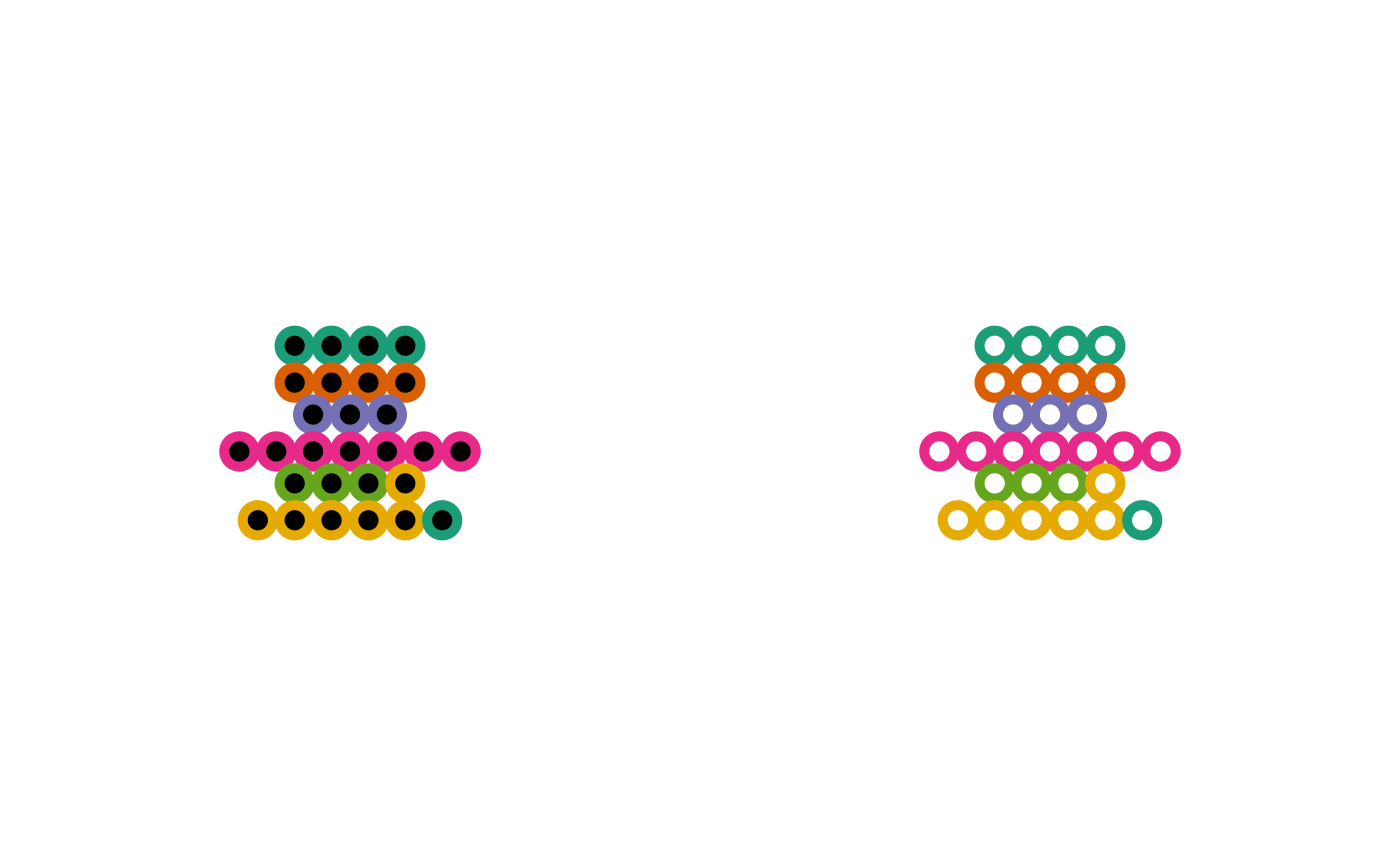

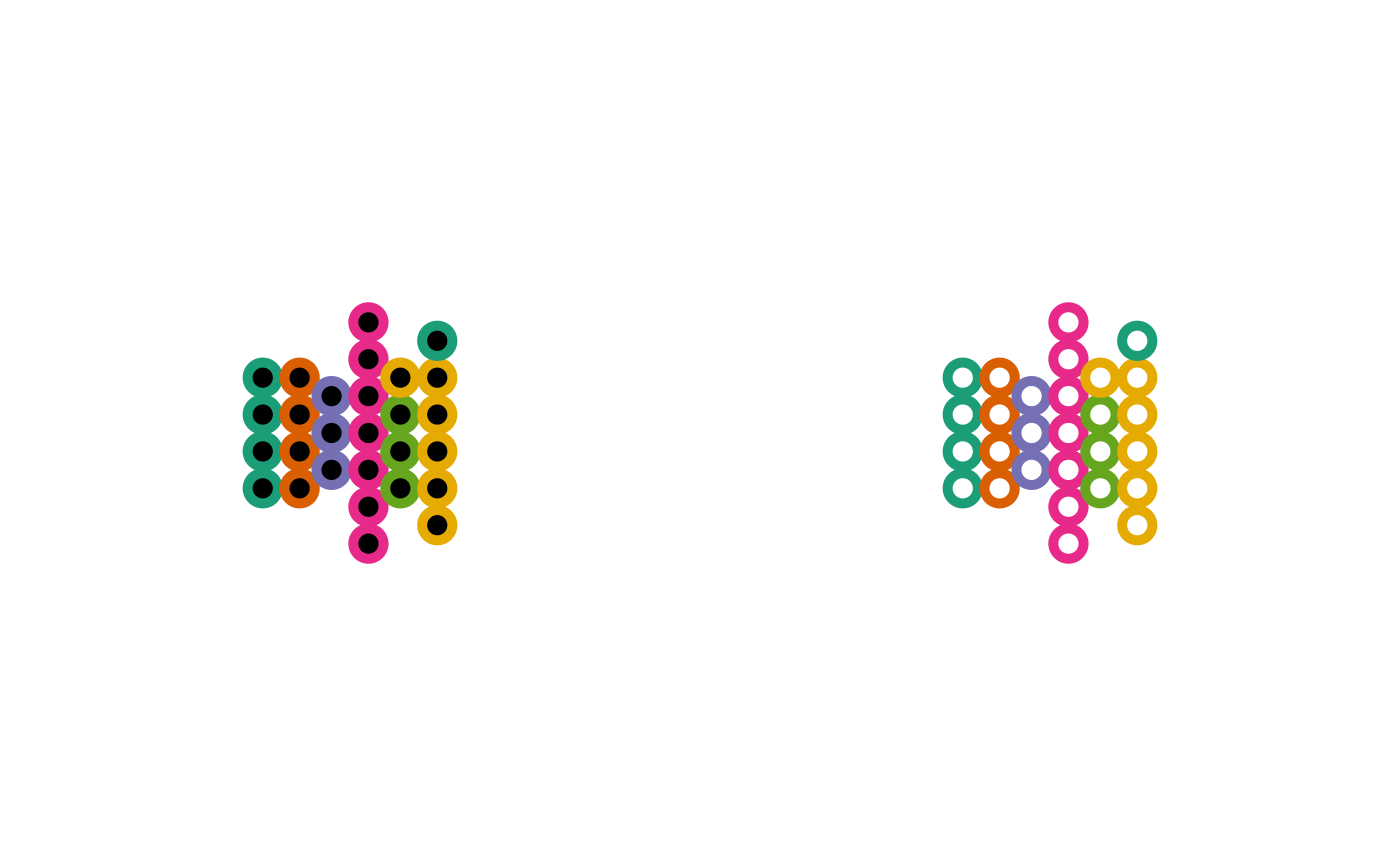

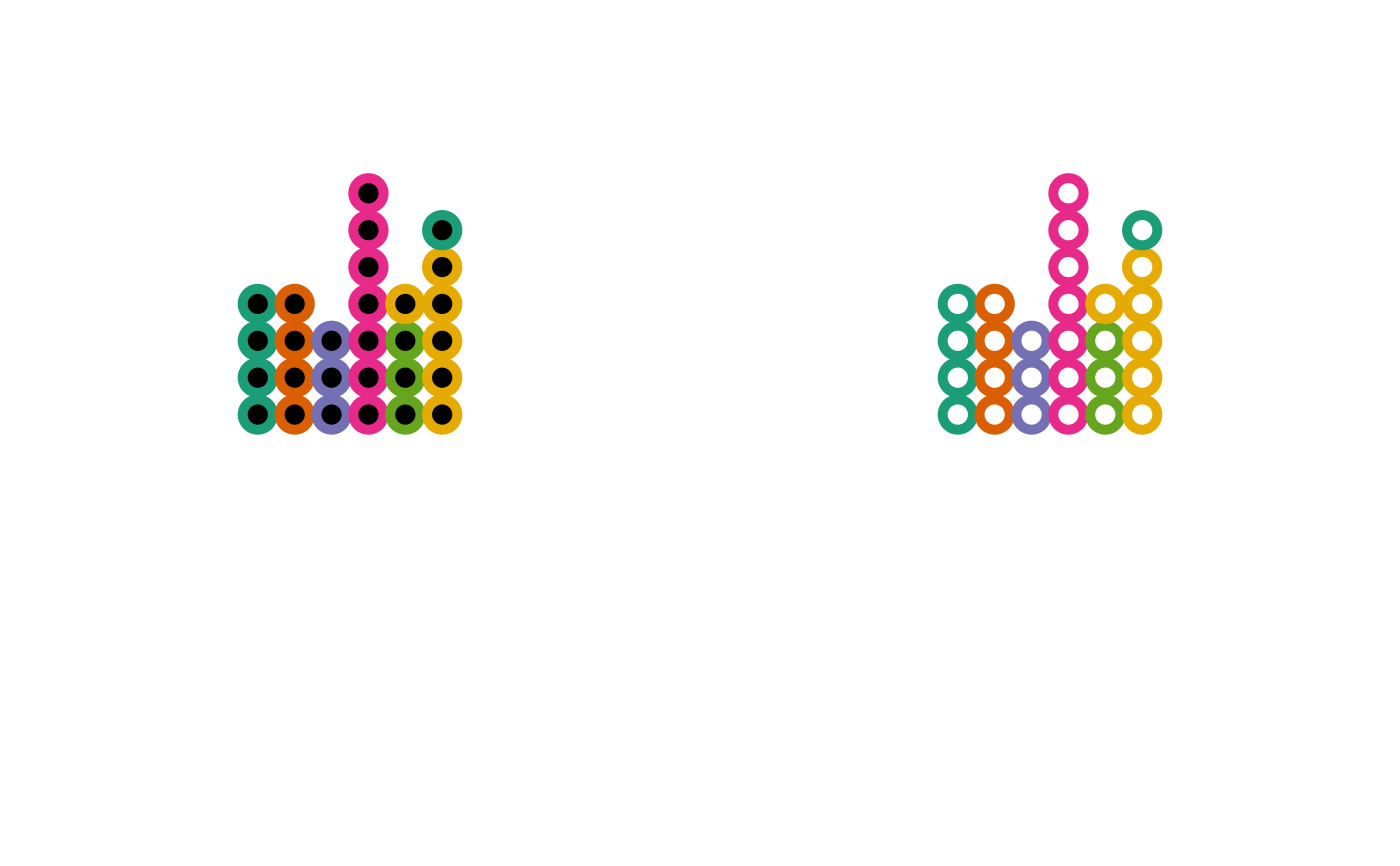

# Multivariate dot line colour
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, fill = "black", lwd = 5,
                    col = clrs)

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, fill = "white", lwd = 5,
                    col = clrs)

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    fill = "black", lwd = 5,
                    col = clrs)

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    fill = "white", lwd = 5,
                    col = clrs)

grid.arrange(dg1, dg2, nrow = 1)

grid.arrange(dg3, dg4, nrow = 1)


dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE,
                    fill = "black", lwd = 5,
                    col = clrs)

dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, flip.axes = TRUE,
                    fill = "white", lwd = 5,
                    col = clrs)

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE,
                    fill = "black", lwd = 5,
                    col = clrs)

dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
                    z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
                    radius = 2, mirror = TRUE,
                    flip.axes = TRUE,
                    fill = "white", lwd = 5,
                    col = clrs)

grid.arrange(dg1, dg2, nrow = 1)

grid.arrange(dg3, dg4, nrow = 1)
