Uses Grid graphics to draw a metroglyph
(Anderson 1957; duToit et al. 1986)
.
Usage
metroglyphGrob(
x = 0.5,
y = 0.5,
z,
size = 1,
circle.size = 5,
col.circle = "black",
col.ray = "black",
col.points = "black",
fill = NA,
lwd.circle = 1,
lwd.ray = 1,
alpha = 1,
angle.start = 0,
angle.stop = 2 * base::pi,
lineend = c("round", "butt", "square"),
grid.levels = NULL,
draw.grid = FALSE,
grid.point.size = 10
)Arguments
- x
A numeric vector or unit object specifying x-locations.
- y
A numeric vector or unit object specifying y-locations.
- z
A numeric vector specifying the length of rays.
- size
The size of rays.
- circle.size
The size of the central circle (radius).
- col.circle
The circle colour.
- col.ray
The colour of rays.
- col.points
The colour of grid points.
- fill
The circle fill colour.
- lwd.circle
The circle line width.
- lwd.ray
The ray line width.
- alpha
The alpha transparency value.
- angle.start
The start angle for the glyph rays in radians. Default is zero.
- angle.stop
The stop angle for the glyph rays in radians. Default is \(2\pi\).
- lineend
The line end style for the rays. Either
"round","butt"or"square".- grid.levels
A list of grid levels (as vectors) corresponding to the values in
zat which points are to be plotted. The values inzshould be present in the list specified.- draw.grid
logical. If
TRUE, grid points are plotted along the whiskers. Default isFALSE.- grid.point.size
The size of the grid points in native units.
Value
A gTree object.
References
Anderson E (1957).
“A semigraphical method for the analysis of complex problems.”
Proceedings of the National Academy of Sciences of the United States of America, 43(10), 923.
duToit SHC, Steyn AGW, Stumpf RH (1986).
Graphical Exploratory Data Analysis, Springer Texts in Statistics.
Springer-Verlag, New York.
ISBN 978-1-4612-9371-2.
Examples
library(ggmultiglyph)
library(grid)
library(gridExtra)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust ray size
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
mg1 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 10)
mg2 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15)
mg3 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 20)
grid.arrange(mg1, mg2, mg3, nrow = 1)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust circle size
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
mg1 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
circle.size = 0, size = 15)
mg2 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
circle.size = 2, size = 15)
mg3 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
circle.size = 5, size = 15)
grid.arrange(mg1, mg2, mg3, nrow = 1)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust angle
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
mg1 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 15, circle.size = 2)
mg2 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 15, circle.size = 2,
angle.start = 0, angle.stop = base::pi)
mg3 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 15, circle.size = 2,
angle.start = 90 * (base::pi/180),
angle.stop = 270 * (base::pi/180))
mg4 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 15, circle.size = 2,
angle.start = 2 * base::pi,
angle.stop = 0)
mg5 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 15, circle.size = 2,
angle.start = base::pi, angle.stop = 0)
mg6 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 15, circle.size = 2,
angle.start = 270 * (base::pi/180),
angle.stop = 90 * (base::pi/180))
grid.arrange(mg1, mg2, mg3, mg4, mg5, mg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust circle and ray line width
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
mg1 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15)
mg2 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 3, lwd.circle = 0.1)
mg3 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 0.1, lwd.circle = 3)
mg4 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 0, angle.stop = base::pi)
mg5 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 3, lwd.circle = 0.1,
angle.start = 0, angle.stop = base::pi)
mg6 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 0.1, lwd.circle = 3,
angle.start = 0, angle.stop = base::pi)
grid.arrange(mg1, mg2, mg3, mg4, mg5, mg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

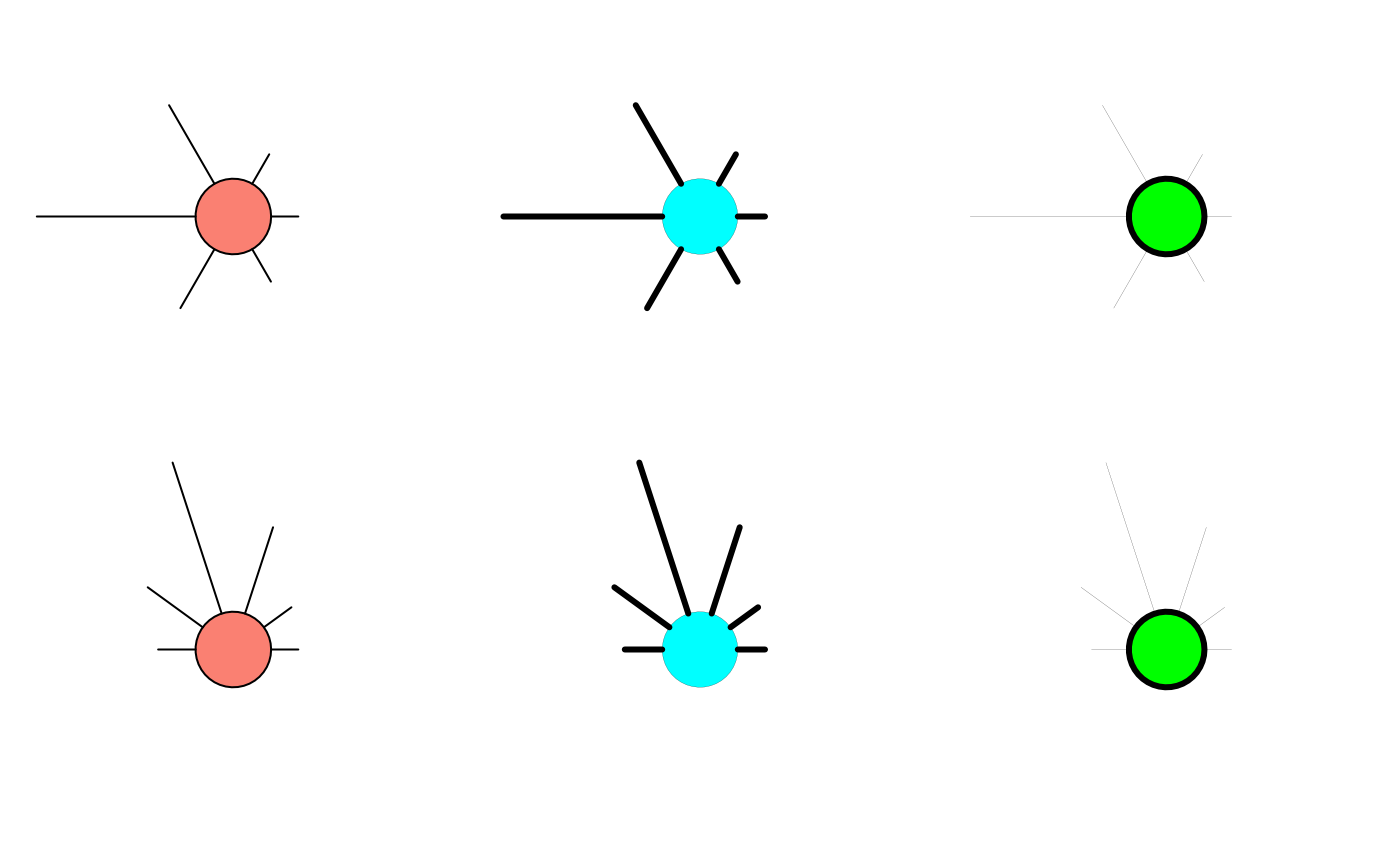

# Adjust fill colour
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
mg1 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
fill = "salmon")
mg2 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 3, lwd.circle = 0.1,
fill = "cyan")
mg3 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 0.1, lwd.circle = 3,
fill = "green")
mg4 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 0, angle.stop = base::pi,
fill = "salmon")
mg5 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 3, lwd.circle = 0.1,
angle.start = 0, angle.stop = base::pi,
fill = "cyan")
mg6 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 0.1, lwd.circle = 3,
angle.start = 0, angle.stop = base::pi,
fill = "green")
grid.arrange(mg1, mg2, mg3, mg4, mg5, mg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

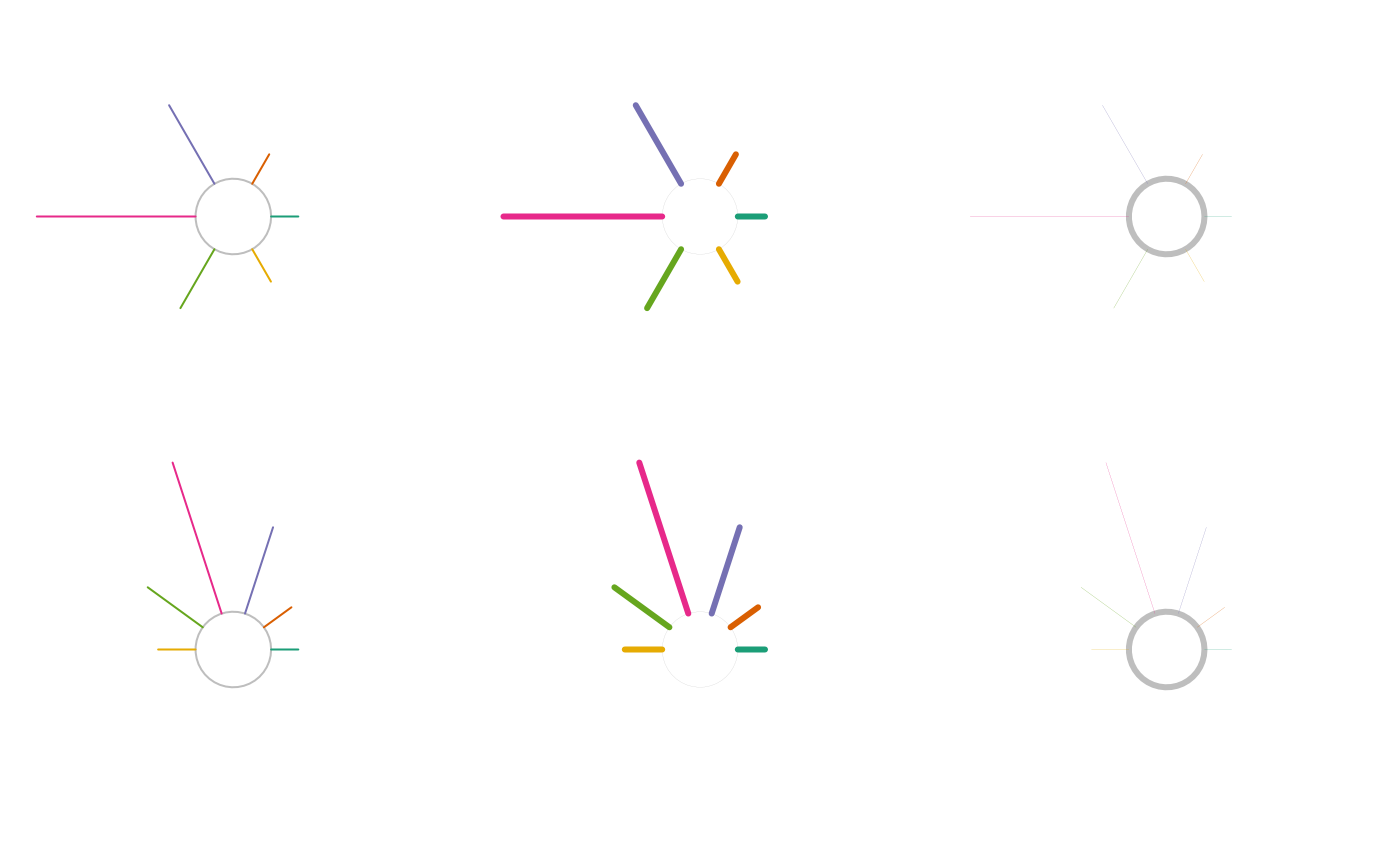

# Adjust ray colour
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
mg1 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
col.circle = "gray")
mg2 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 3, lwd.circle = 0.1,
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
col.circle = "gray")
mg3 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 0.1, lwd.circle = 3,
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
col.circle = "gray")
mg4 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 0, angle.stop = base::pi,
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
col.circle = "gray")
mg5 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 3, lwd.circle = 0.1,
angle.start = 0, angle.stop = base::pi,
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
col.circle = "gray")
mg6 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.ray = 0.1, lwd.circle = 3,
angle.start = 0, angle.stop = base::pi,
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
col.circle = "gray")
grid.arrange(mg1, mg2, mg3, mg4, mg5, mg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust line end style
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
mg1 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.28, 0.33, 0.8, 1.2, 0.6, 0.5, 0.7), size = 15,
lwd.ray = 10)
mg2 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.28, 0.33, 0.8, 1.2, 0.6, 0.5, 0.7), size = 15,
lwd.ray = 10, lineend = "butt")
mg3 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.28, 0.33, 0.8, 1.2, 0.6, 0.5, 0.7), size = 15,
lwd.ray = 10, lineend = "square")
grid.arrange(mg1, mg2, mg3, nrow = 1, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

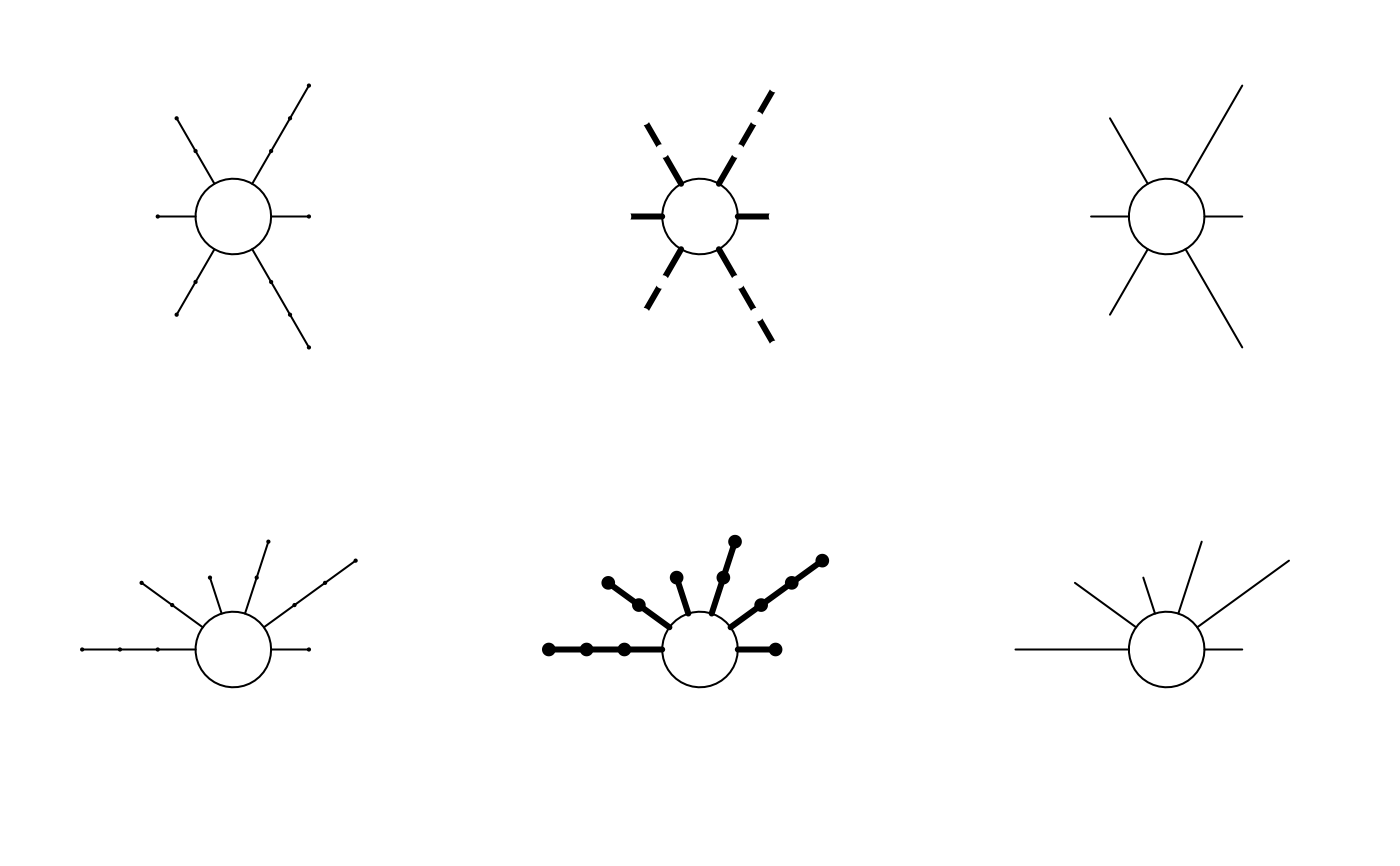

# Adjust grid levels
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Grid levels
gl <- split(x = c(rep(c(1, 2, 3), 4),
rep(c(1, 2, 3, 4), 2)),
f = c(rep(1:4, each = 3),
rep(5:6, each = 4)))
gl
#> $`1`
#> [1] 1 2 3
#>
#> $`2`
#> [1] 1 2 3
#>
#> $`3`
#> [1] 1 2 3
#>
#> $`4`
#> [1] 1 2 3
#>
#> $`5`
#> [1] 1 2 3 4
#>
#> $`6`
#> [1] 1 2 3 4
#>
mg1 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.01)
mg2 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
lwd.ray = 3, col.points = "white",
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.05)
mg3 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
draw.grid = FALSE, grid.levels = gl,
grid.point.size = 0.05)
mg4 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
angle.start = 0, angle.stop = base::pi,
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.01)
mg5 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
lwd.ray = 3,
angle.start = 0, angle.stop = base::pi,
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.05)
mg6 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
angle.start = 0, angle.stop = base::pi,
draw.grid = FALSE, grid.levels = gl)
grid.arrange(mg1, mg2, mg3, mg4, mg5, mg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

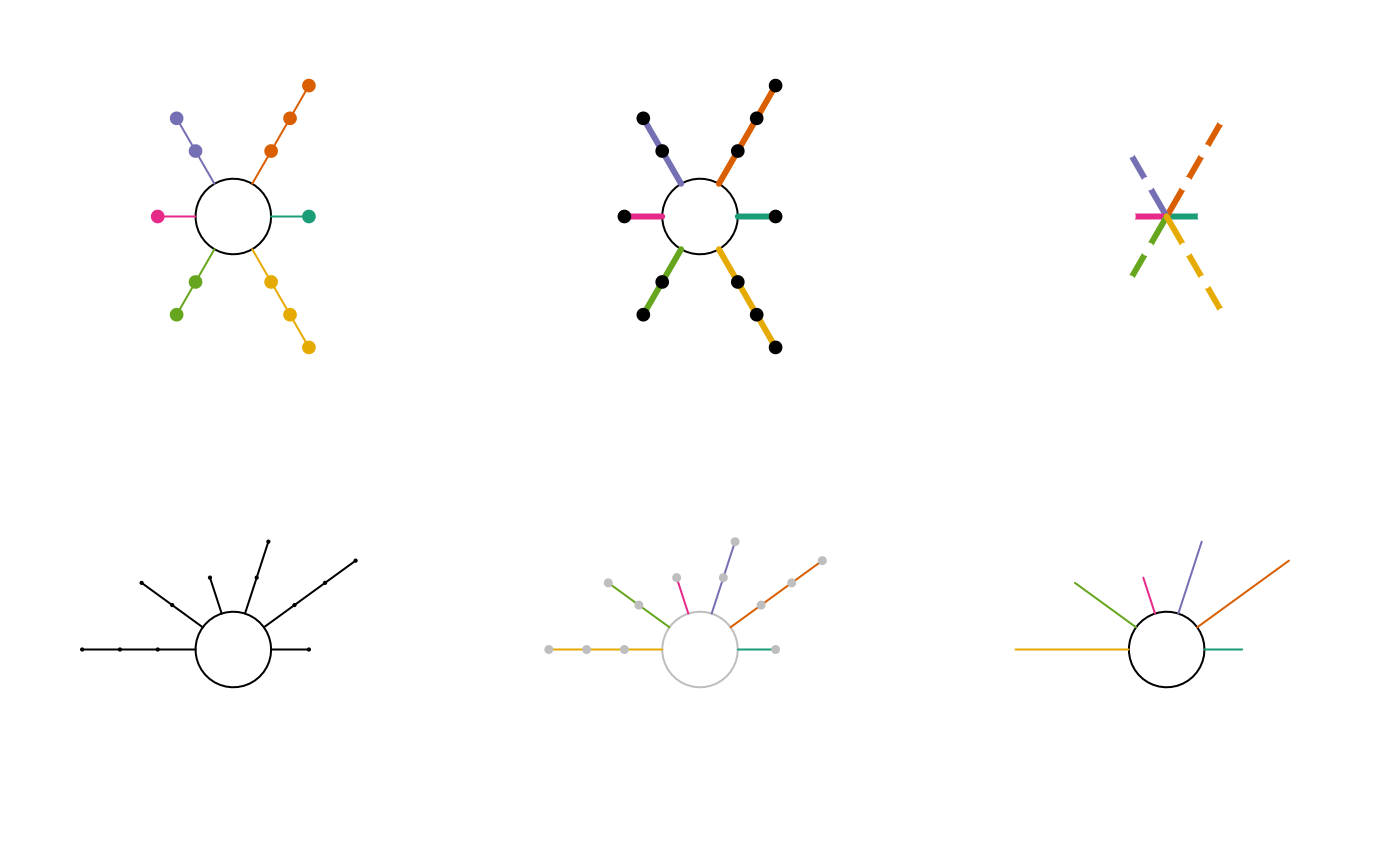

# Adjust fill, ray and grid level colours
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
mg1 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
draw.grid = TRUE, grid.levels = gl,
col.points = NA,
grid.point.size = 0.05)
mg2 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
lwd.ray = 3,
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.05)
mg3 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
circle.size = 0, col.points = "white",
lwd.ray = 3,
draw.grid = TRUE, grid.levels = gl,
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
grid.point.size = 0.05)
mg4 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
angle.start = 0, angle.stop = base::pi,
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.01)
mg5 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
col.circle = "gray",
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
angle.start = 0, angle.stop = base::pi,
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.03, col.points = "gray")
mg6 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
angle.start = 0, angle.stop = base::pi,
draw.grid = FALSE, grid.levels = gl,
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
grid.point.size = 0.05)
grid.arrange(mg1, mg2, mg3, mg4, mg5, mg6, nrow = 2, ncol = 3)
