Uses Grid graphics to draw a star glyph
(Siegel et al. 1972; Chambers et al. 1983; duToit et al. 1986)
.
Usage
starglyphGrob(
x = 0.5,
y = 0.5,
z,
size = 1,
col.whisker = "black",
col.contour = "black",
col.points = "black",
fill = NA,
lwd.whisker = 1,
lwd.contour = 1,
alpha = 1,
angle.start = 0,
angle.stop = 2 * base::pi,
whisker = TRUE,
contour = TRUE,
linejoin = c("mitre", "round", "bevel"),
lineend = c("round", "butt", "square"),
grid.levels = NULL,
draw.grid = FALSE,
grid.point.size = 10
)Arguments
- x
A numeric vector or unit object specifying x-locations.
- y
A numeric vector or unit object specifying y-locations.
- z
A numeric vector specifying the distance of star glyph points from the centre.
- size
The size of glyphs.
- col.whisker
The colour of whiskers.
- col.contour
The colour of contours.
- col.points
The colour of grid points.
- fill
The fill colour.
- lwd.whisker
The whisker line width.
- lwd.contour
The contour line width.
- alpha
The alpha transparency value.
- angle.start
The start angle for the glyph in radians. Default is zero.
- angle.stop
The stop angle for the glyph in radians. Default is \(2\pi\).
- whisker
logical. If
TRUE, plots the star glyph whiskers.- contour
logical. If
TRUE, plots the star glyph contours.- linejoin
The line join style for the contour polygon. Either
"mitre","round"or"bevel".- lineend
The line end style for the whisker lines. Either
"round","butt"or"square".- grid.levels
A list of grid levels (as vectors) corresponding to the values in
zat which points are to be plotted. The values inzshould be present in the list specified.- draw.grid
logical. If
TRUE, grid points are plotted along the whiskers. Default isFALSE.- grid.point.size
The size of the grid points in native units.
Value
A gTree object.
References
Chambers JM, Cleveland WS, Kleiner B, Tukey PA (1983).
Graphical Methods for Data Analysis.
Chapman and Hall/CRC, Boca Raton.
ISBN 978-1-351-07230-4.
duToit SHC, Steyn AGW, Stumpf RH (1986).
Graphical Exploratory Data Analysis, Springer Texts in Statistics.
Springer-Verlag, New York.
ISBN 978-1-4612-9371-2.
Siegel JH, Farrell EJ, Goldwyn RM, Friedman HP (1972).
“The surgical implications of physiologic patterns in myocardial infarction shock.”
Surgery, 72(1), 126–141.
Examples
library(ggmultiglyph)
library(grid)
library(gridExtra)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Whisker and contour combination
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15)
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
whisker = FALSE)
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
contour = FALSE)
sg4 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 0, angle.stop = base::pi)
sg5 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
whisker = FALSE,
angle.start = 0, angle.stop = base::pi)
sg6 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
contour = FALSE,
angle.start = 0, angle.stop = base::pi)
grid.arrange(sg1, sg2, sg3, sg4, sg5, sg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust size
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 10)
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15)
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 20)
sg4 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 10,
angle.start = 0, angle.stop = base::pi)
sg5 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 0, angle.stop = base::pi)
sg6 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 20,
angle.start = 0, angle.stop = base::pi)
grid.arrange(sg1, sg2, sg3, sg4, sg5, sg6, nrow = 2, ncol = 3)
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 10,
whisker = FALSE)
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
whisker = FALSE)
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 20,
whisker = FALSE)
sg4 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 10,
whisker = FALSE,
angle.start = 0, angle.stop = base::pi)
sg5 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
whisker = FALSE,
angle.start = 0, angle.stop = base::pi)
sg6 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 20,
whisker = FALSE,
angle.start = 0, angle.stop = base::pi)
grid.arrange(sg1, sg2, sg3, sg4, sg5, sg6, nrow = 2, ncol = 3)
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 10,
contour = FALSE)
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
contour = FALSE)
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 20,
contour = FALSE)
sg4 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 10,
contour = FALSE,
angle.start = 0, angle.stop = base::pi)
sg5 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
contour = FALSE,
angle.start = 0, angle.stop = base::pi)
sg6 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 20,
contour = FALSE,
angle.start = 0, angle.stop = base::pi)
grid.arrange(sg1, sg2, sg3, sg4, sg5, sg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust angle
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15)
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 0, angle.stop = base::pi)
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 90 * (base::pi/180),
angle.stop = 270 * (base::pi/180))
sg4 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 2 * base::pi,
angle.stop = 0)
sg5 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = base::pi, angle.stop = 0)
sg6 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 270 * (base::pi/180),
angle.stop = 90 * (base::pi/180))
grid.arrange(sg1, sg2, sg3, sg4, sg5, sg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust whisker and contour line width
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15)
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 3, lwd.contour = 0.1)
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 0.1, lwd.contour = 3)
sg4 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 0, angle.stop = base::pi)
sg5 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 3, lwd.contour = 0.1,
angle.start = 0, angle.stop = base::pi)
sg6 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 0.1, lwd.contour = 3,
angle.start = 0, angle.stop = base::pi)
grid.arrange(sg1, sg2, sg3, sg4, sg5, sg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

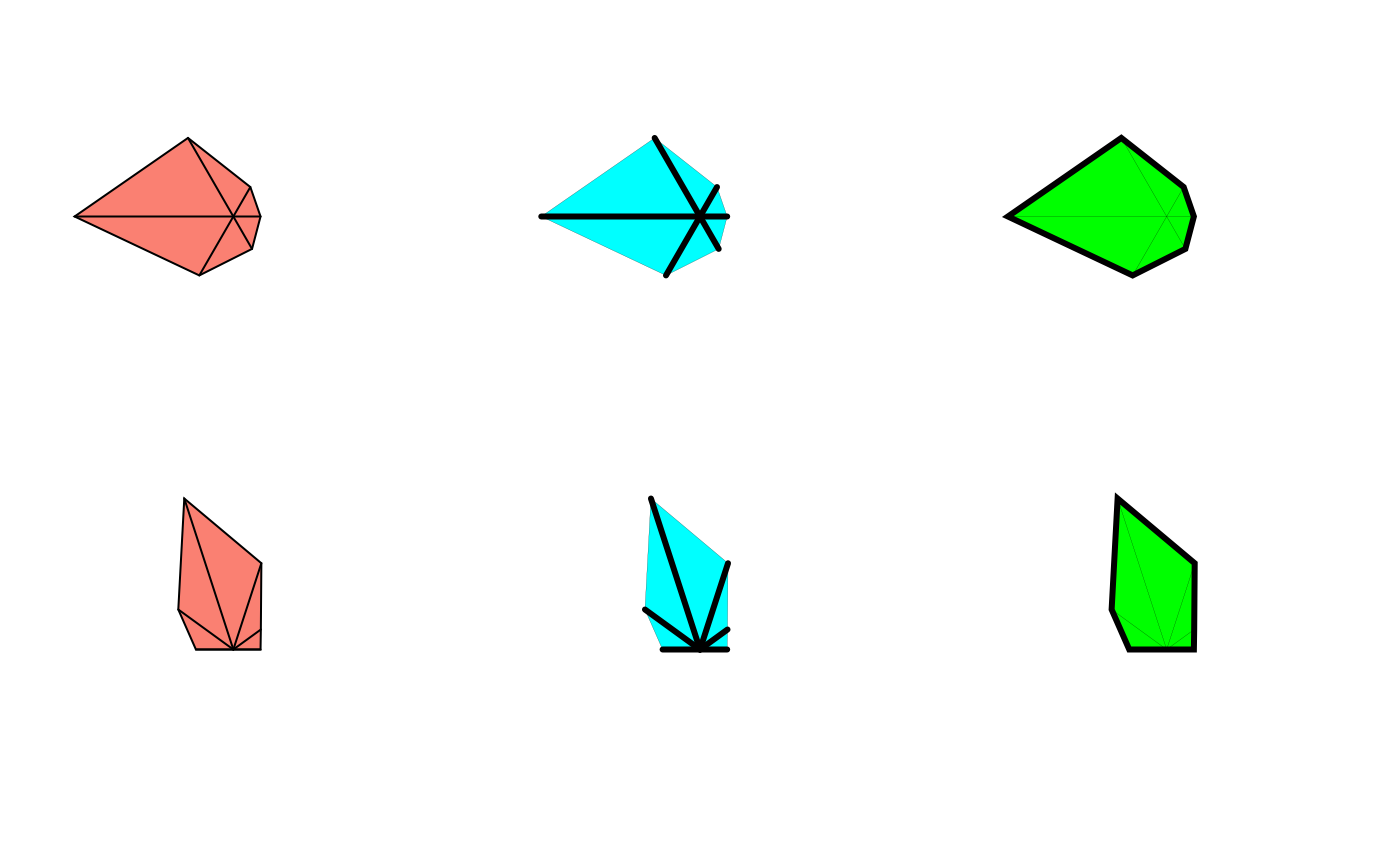

# Adjust fill colour
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
fill = "salmon")
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 3, lwd.contour = 0.1,
fill = "cyan")
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 0.1, lwd.contour = 3,
fill = "green")
sg4 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 0, angle.stop = base::pi,
fill = "salmon")
sg5 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 3, lwd.contour = 0.1,
angle.start = 0, angle.stop = base::pi,
fill = "cyan")
sg6 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 0.1, lwd.contour = 3,
angle.start = 0, angle.stop = base::pi,
fill = "green")
grid.arrange(sg1, sg2, sg3, sg4, sg5, sg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

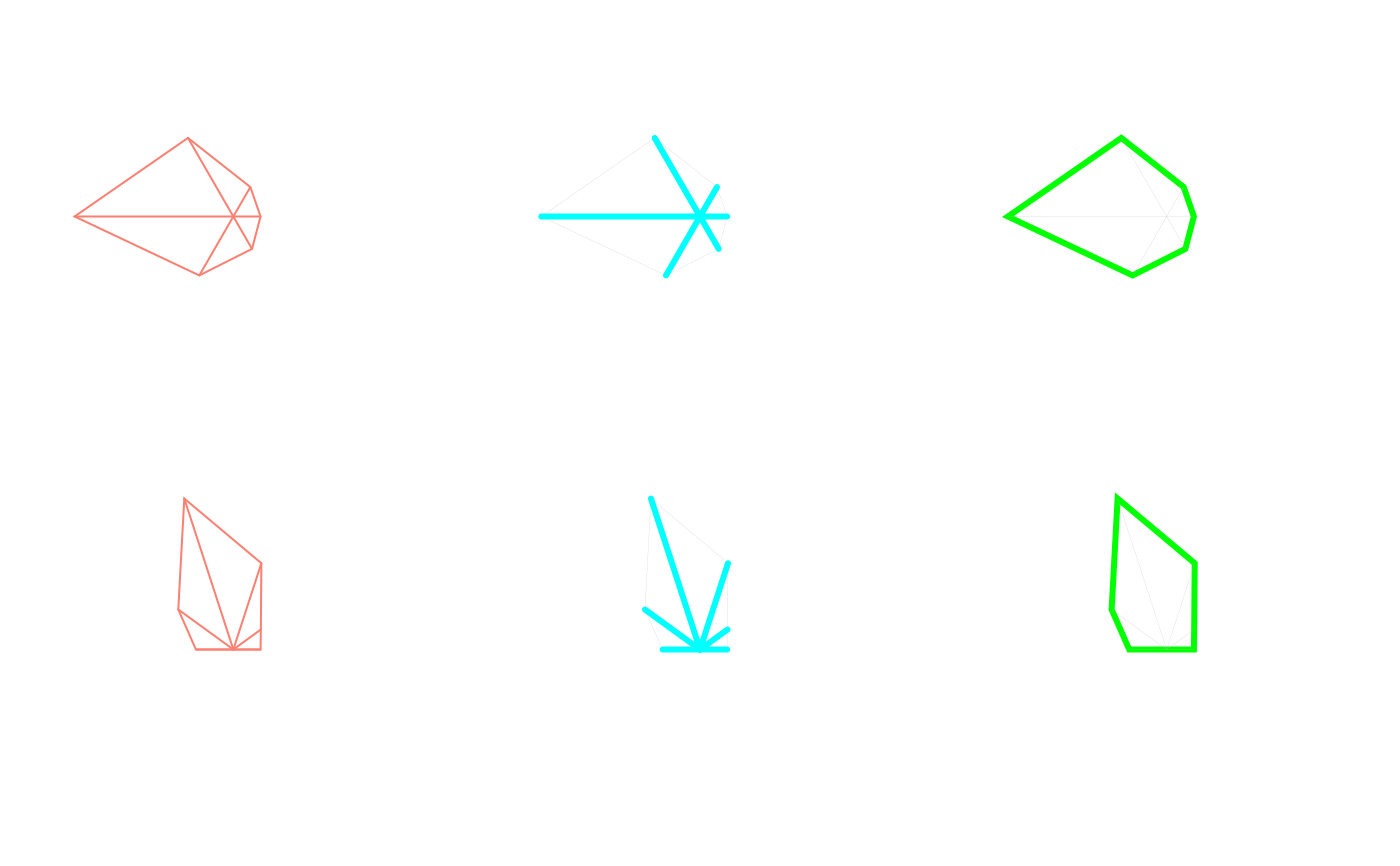

# Adjust whisker and contour colour
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
col.whisker = "salmon", col.contour = "salmon")
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 3, lwd.contour = 0.1,
col.whisker = "cyan", col.contour = "gray")
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 0.1, lwd.contour = 3,
col.whisker = "gray", col.contour = "green")
sg4 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 0, angle.stop = base::pi,
col.whisker = "salmon", col.contour = "salmon")
sg5 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 3, lwd.contour = 0.1,
angle.start = 0, angle.stop = base::pi,
col.whisker = "cyan", col.contour = "gray")
sg6 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 0.1, lwd.contour = 3,
angle.start = 0, angle.stop = base::pi,
col.whisker = "gray", col.contour = "green")
grid.arrange(sg1, sg2, sg3, sg4, sg5, sg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

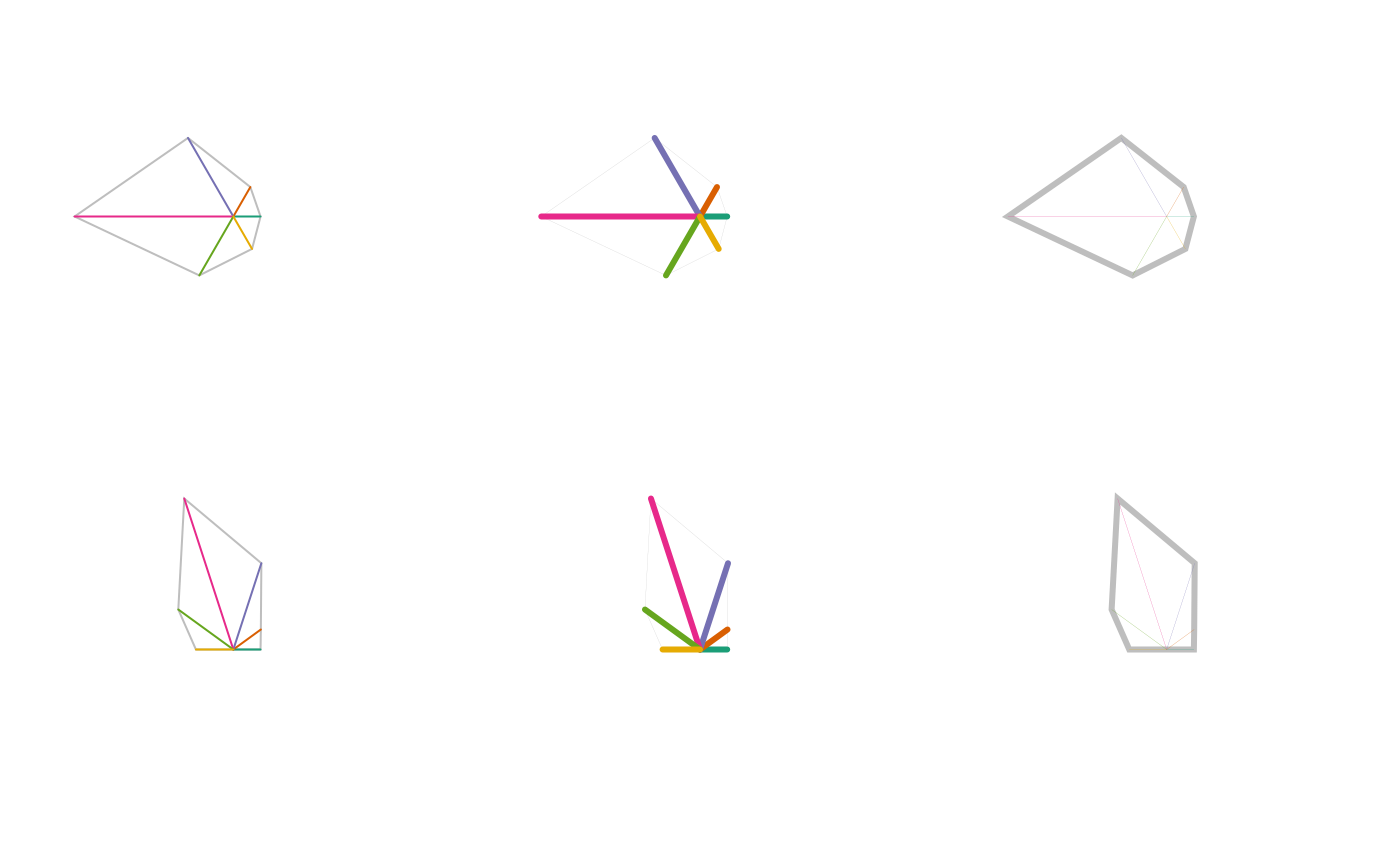

# Multivariate whisker colour
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
col.contour = "gray")
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 3, lwd.contour = 0.1,
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
col.contour = "gray")
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 0.1, lwd.contour = 3,
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
col.contour = "gray")
sg4 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
angle.start = 0, angle.stop = base::pi,
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
col.contour = "gray")
sg5 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 3, lwd.contour = 0.1,
angle.start = 0, angle.stop = base::pi,
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
col.contour = "gray")
sg6 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 15,
lwd.whisker = 0.1, lwd.contour = 3,
angle.start = 0, angle.stop = base::pi,
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
col.contour = "gray")
grid.arrange(sg1, sg2, sg3, sg4, sg5, sg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust line join style
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.28, 0.33, 0.8, 1.2, 0.6, 0.5, 0.7), size = 15,
lwd.contour = 10)
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.28, 0.33, 0.8, 1.2, 0.6, 0.5, 0.7), size = 15,
lwd.contour = 10, linejoin = "bevel")
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.28, 0.33, 0.8, 1.2, 0.6, 0.5, 0.7), size = 15,
lwd.contour = 10, linejoin = "round")
grid.arrange(sg1, sg2, sg3, nrow = 1, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust line end style
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.28, 0.33, 0.8, 1.2, 0.6, 0.5, 0.7), size = 15,
lwd.whisker = 10, contour = FALSE)
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.28, 0.33, 0.8, 1.2, 0.6, 0.5, 0.7), size = 15,
lwd.whisker = 10, lineend = "butt", contour = FALSE)
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.28, 0.33, 0.8, 1.2, 0.6, 0.5, 0.7), size = 15,
lwd.whisker = 10, lineend = "square", contour = FALSE)
grid.arrange(sg1, sg2, sg3, nrow = 1, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust grid levels
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Grid levels
gl <- split(x = c(rep(c(1, 2, 3), 4),
rep(c(1, 2, 3, 4), 2)),
f = c(rep(1:4, each = 3),
rep(5:6, each = 4)))
gl
#> $`1`
#> [1] 1 2 3
#>
#> $`2`
#> [1] 1 2 3
#>
#> $`3`
#> [1] 1 2 3
#>
#> $`4`
#> [1] 1 2 3
#>
#> $`5`
#> [1] 1 2 3 4
#>
#> $`6`
#> [1] 1 2 3 4
#>
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.01)
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
lwd.whisker = 3, col.points = "white",
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.05,
contour = FALSE)
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
lwd.contour = 3,
draw.grid = FALSE, grid.levels = gl,
grid.point.size = 0.05,
whisker = FALSE)
sg4 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
angle.start = 0, angle.stop = base::pi,
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.01)
sg5 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
lwd.whisker = 3,
angle.start = 0, angle.stop = base::pi,
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.05, contour = FALSE)
sg6 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
lwd.contour = 3,
angle.start = 0, angle.stop = base::pi,
draw.grid = FALSE, grid.levels = gl,
whisker = FALSE)
grid.arrange(sg1, sg2, sg3, sg4, sg5, sg6, nrow = 2, ncol = 3)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Adjust fill, whisker, contour and grid level colours
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
draw.grid = TRUE, grid.levels = gl,
col.points = NA, fill = "black",
grid.point.size = 0.05)
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
contour = FALSE,
lwd.whisker = 3,
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.05)
sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
whisker = FALSE,
lwd.contour = 3,
draw.grid = FALSE, grid.levels = gl,
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
grid.point.size = 0.05)
sg4 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
angle.start = 0, angle.stop = base::pi,
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.01)
sg5 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
col.contour = "gray",
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
angle.start = 0, angle.stop = base::pi,
draw.grid = TRUE, grid.levels = gl,
grid.point.size = 0.01, col.points = "gray")
sg6 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(1, 3, 2, 1, 2, 3), size = 5,
lwd.contour = 3,
whisker = FALSE,
angle.start = 0, angle.stop = base::pi,
draw.grid = FALSE, grid.levels = gl,
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
grid.point.size = 0.05)
grid.arrange(sg1, sg2, sg3, sg4, sg5, sg6, nrow = 2, ncol = 3)
