Add labels to a glyphGrob as a textGrob. Useful in
creation of custom guides for glyphs using
guide_custom.
Usage
addlabel.glyphGrob(
grob,
label,
segment = TRUE,
segment.control = ggmultiglyph.segment.control(),
push = 10,
angle = 0,
hjust = 0.5,
vjust = 0.5
)Arguments
- grob
A
glyphGrobobject.- label
The labels to be plotted as a character vector. Should be equal in length to the dimensions of
grobglyphGrobobject. Labels are plotted from \(0\) to \(1\) (left to right or bottom to top for linear labelling and right to left in clock-wise direction for radial labelling.)- segment
logical. If
TRUEdraws line segments connecting labels and theglyphGrobDefault isTRUE.- segment.control
A list of control settings for the line segments. Ignored if
segment = FALSE. Seeggmultiglyph.segment.controlfor details on the various control parameters.- push
A numeric value indicating how far the labels have to be pushed out from the
glyphGrob.- angle
Text angle (in
[0, 360]).- hjust
Horizontal justification (in
[0, 1]).- vjust
Vertical justification (in
[0, 1]).
Value
A grob object.
Examples
library(ggmultiglyph)
library(grid)
library(gridExtra)
label <- c("hp", "drat", "wt", "qsec", "vs", "am")
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Add labels to metroglyphGrob
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
mglyph1 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, circle.size = 2)

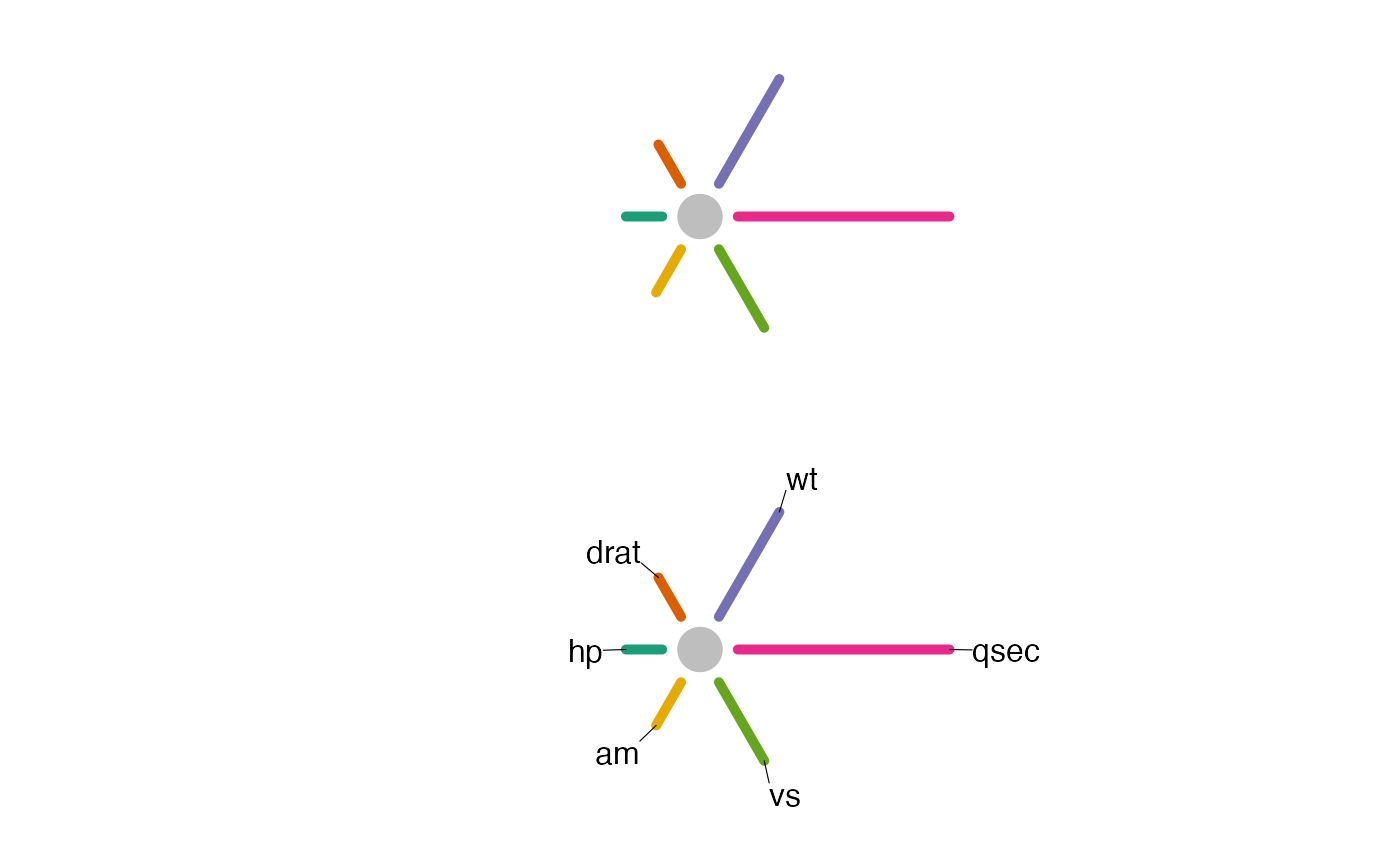

mglyph2 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, circle.size = 5,
angle.start = base::pi, angle.stop = -base::pi,
lwd.ray = 5, lwd.circle = 15,
col.ray = RColorBrewer::brewer.pal(6, "Dark2"),
col.circle = "white", fill = "gray")
mglyph3 <- metroglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, circle.size = 0,
angle.start = 0, angle.stop = base::pi)
mglyph1_lab <- addlabel.glyphGrob(grob = mglyph1, label = label,
push = 1, segment = FALSE)
mglyph2_lab <- addlabel.glyphGrob(grob = mglyph2, label = label,
push = 3)
mglyph3_lab <- addlabel.glyphGrob(grob = mglyph3, label = label,
push = 1, segment = FALSE)
grid.arrange(mglyph1, mglyph1_lab)
grid.arrange(mglyph2, mglyph2_lab)
grid.arrange(mglyph3, mglyph3_lab, nrow = 1)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

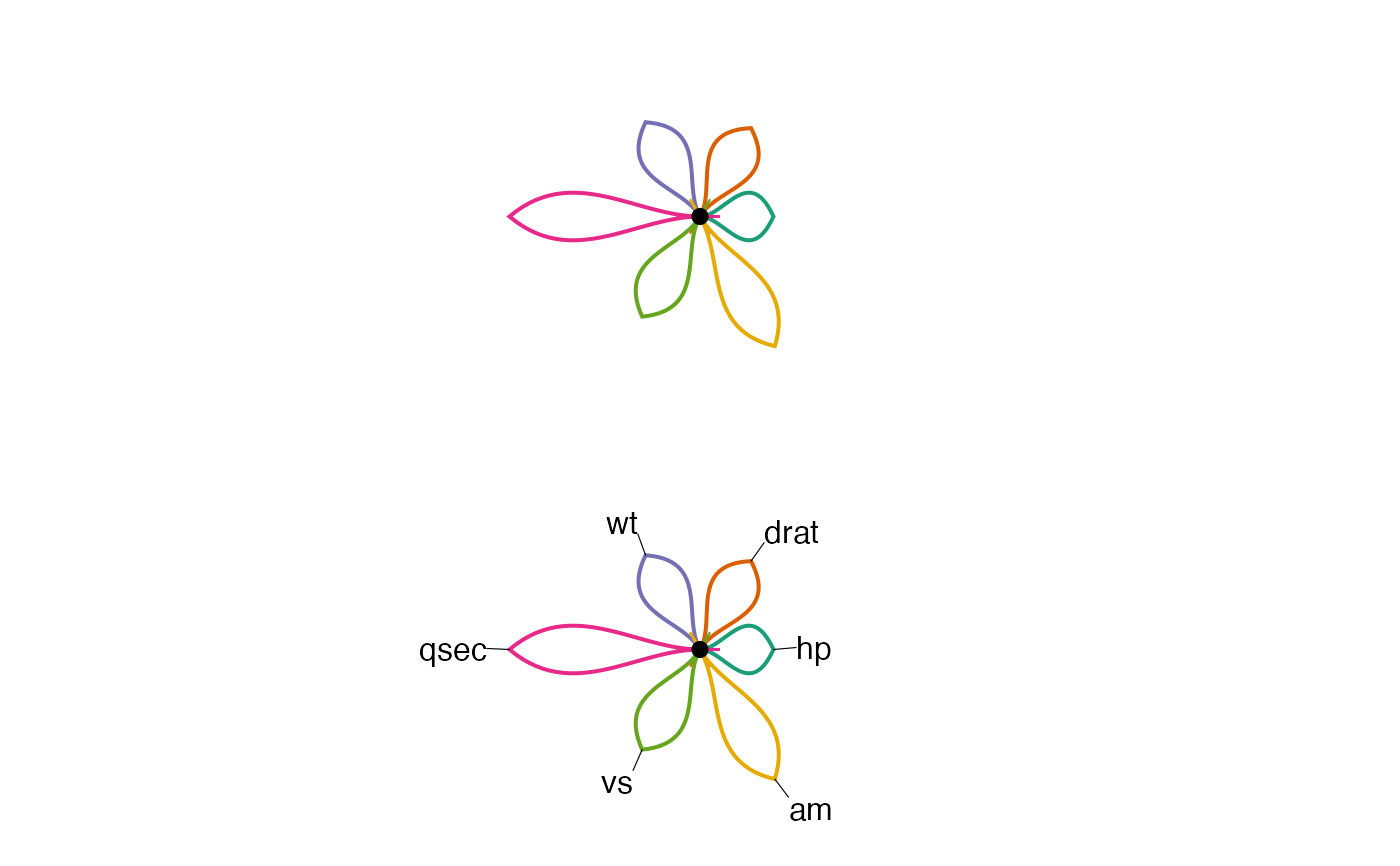

# Add labels to starglyphGrob
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
sg1 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 25)
sg2 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 25,
lwd.whisker = 3,
lwd.contour = 0.1,
col.whisker = RColorBrewer::brewer.pal(6, "Dark2"),
col.contour = "gray")

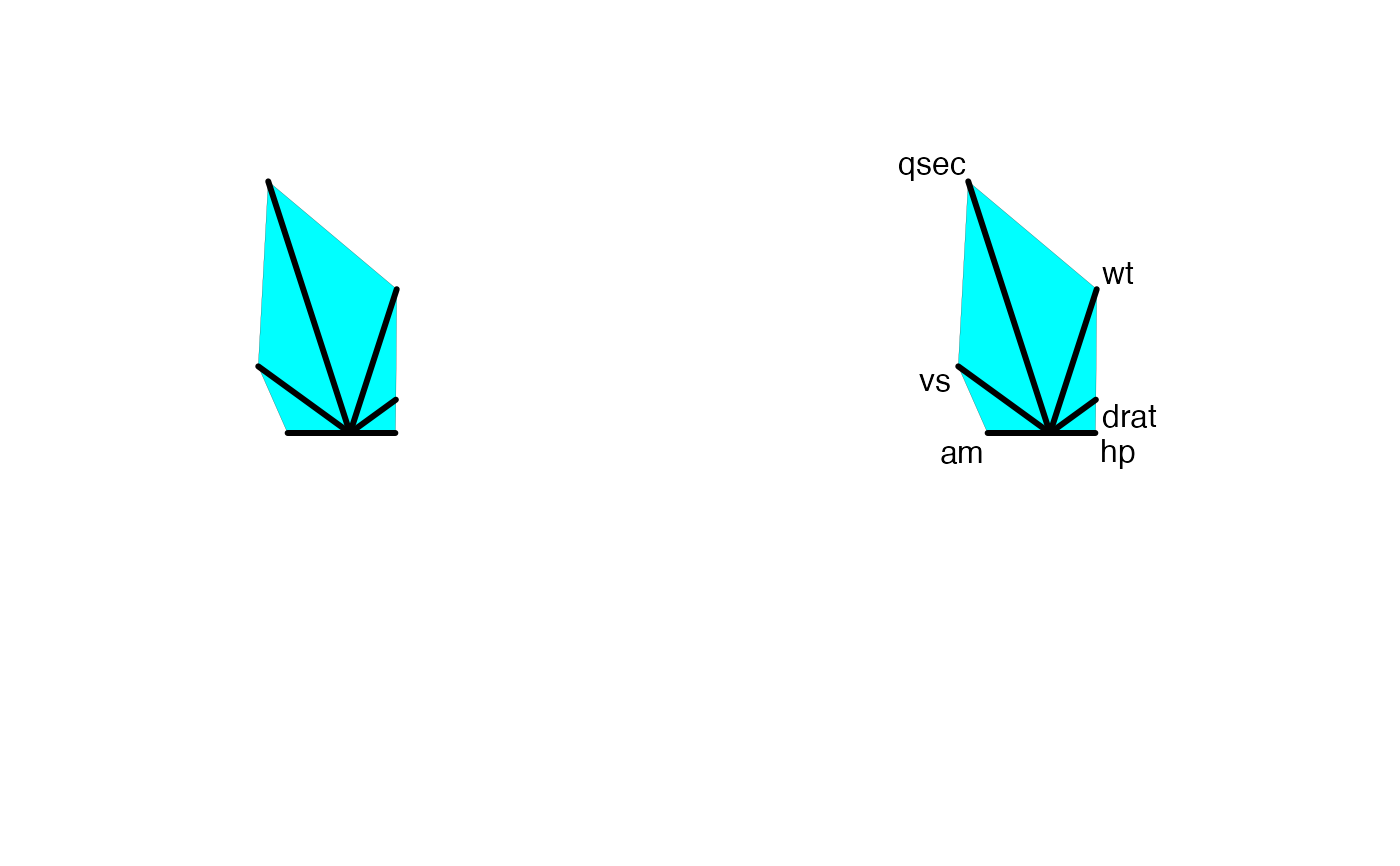

sg3 <- starglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33), size = 25,
lwd.whisker = 3,
lwd.contour = 0.1,
angle.start = 0, angle.stop = base::pi,
fill = "cyan")
sg1_lab <- addlabel.glyphGrob(grob = sg1, label = label,
push = 1, segment = FALSE)
sg2_lab <- addlabel.glyphGrob(grob = sg2, label = label,
push = 3)
sg3_lab <- addlabel.glyphGrob(grob = sg3, label = label,
push = 1, segment = FALSE)
grid.arrange(sg1, sg1_lab)
grid.arrange(sg2, sg2_lab)
grid.arrange(sg3, sg3_lab, nrow = 1)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

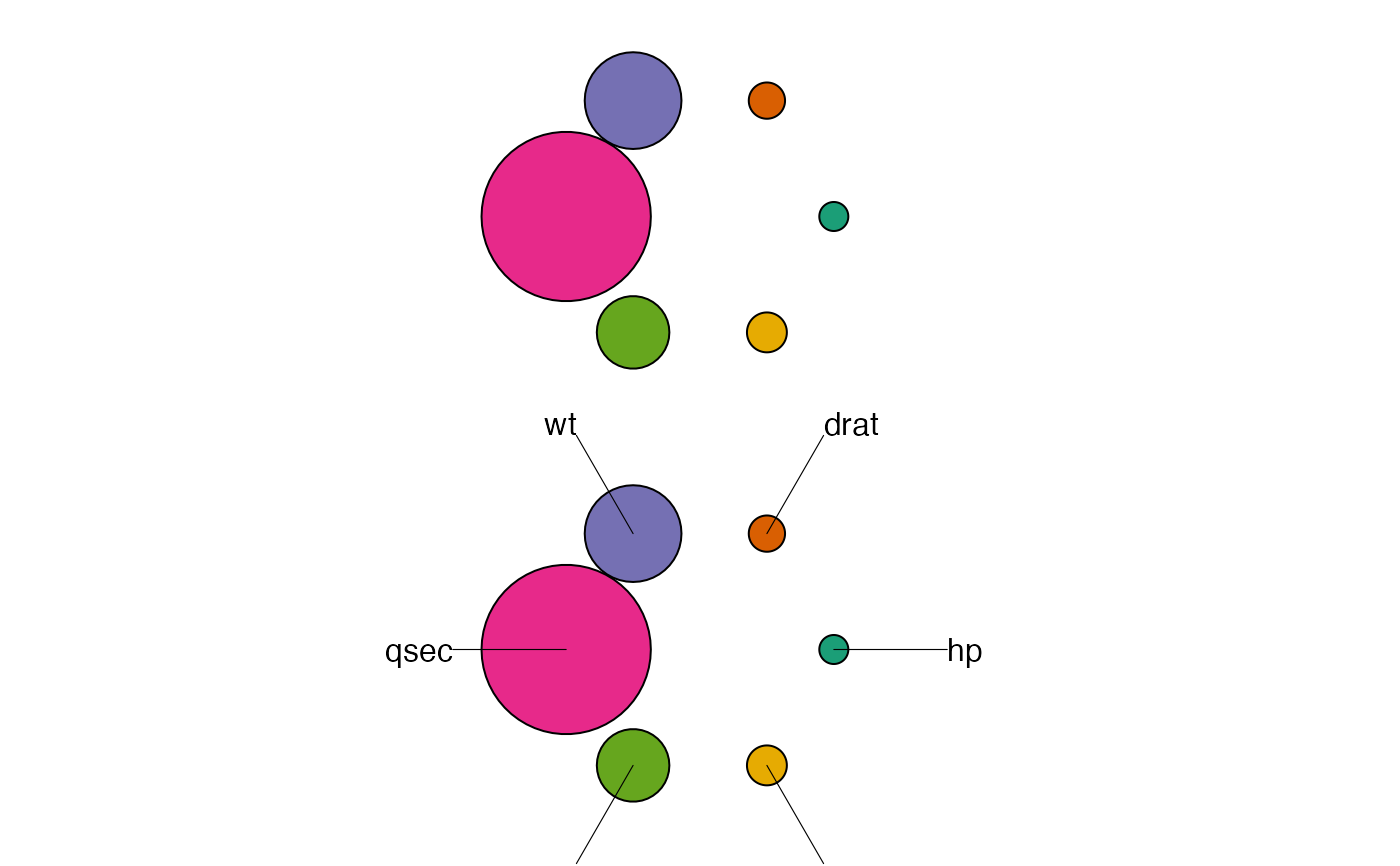

# Add labels to pieglyphGrob
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
pg1 <- pieglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20)
pg2 <- pieglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, scale.radius = FALSE,
angle.start = 0, angle.stop = base::pi)
pg3 <- pieglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, scale.segment = TRUE, scale.radius = FALSE,
fill = RColorBrewer::brewer.pal(6, "Dark2"))
pg1_lab <- addlabel.glyphGrob(grob = pg1, label = label,
push = 2, segment = FALSE)
pg2_lab <- addlabel.glyphGrob(grob = pg2, label = label,
push = 5)
pg3_lab <- addlabel.glyphGrob(grob = pg3, label = label,
push = 5, segment = FALSE)
grid.arrange(pg1, pg1_lab)
grid.arrange(pg2, pg2_lab)
grid.arrange(pg3, pg3_lab)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Add labels to profileglyphGrob
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

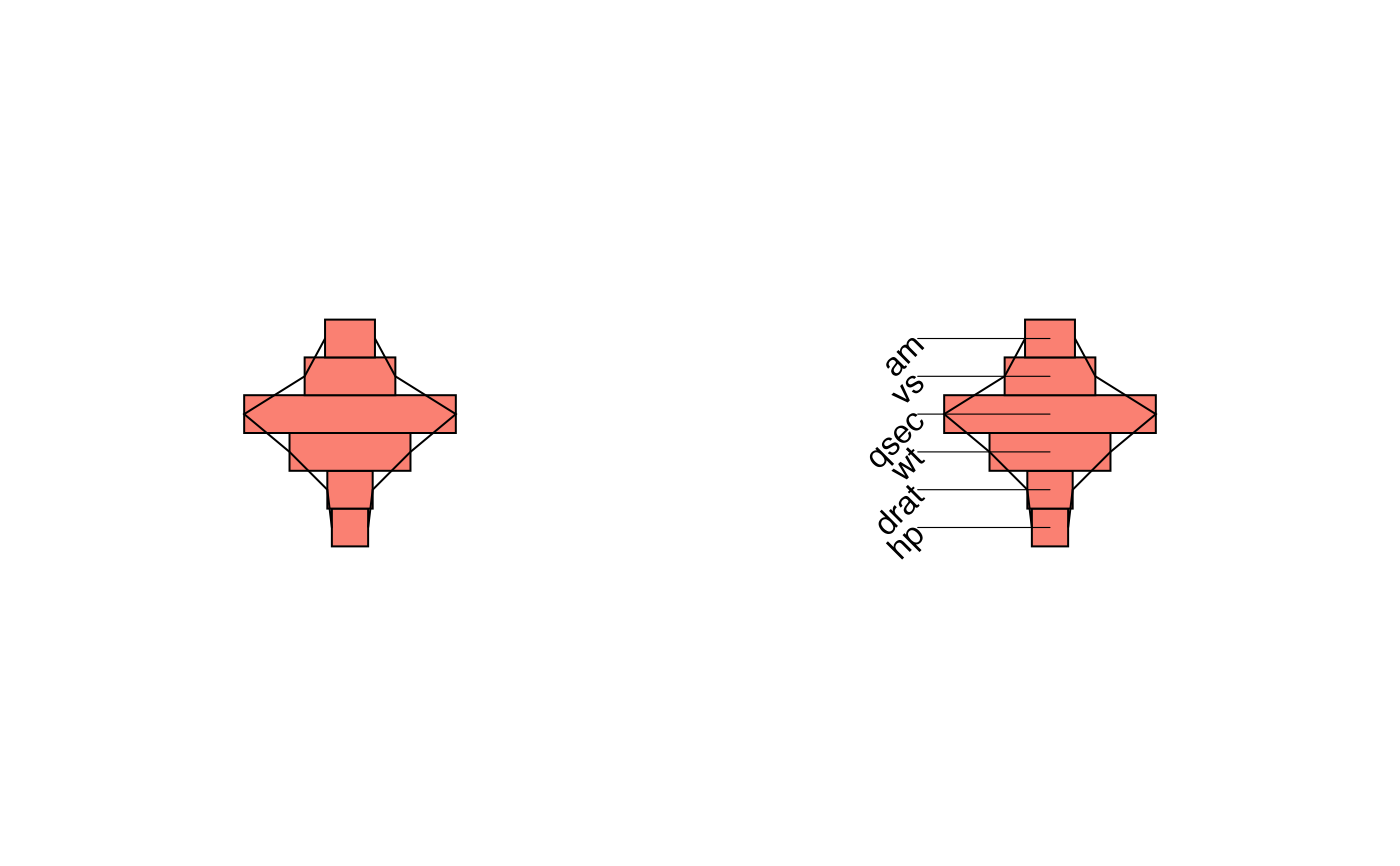

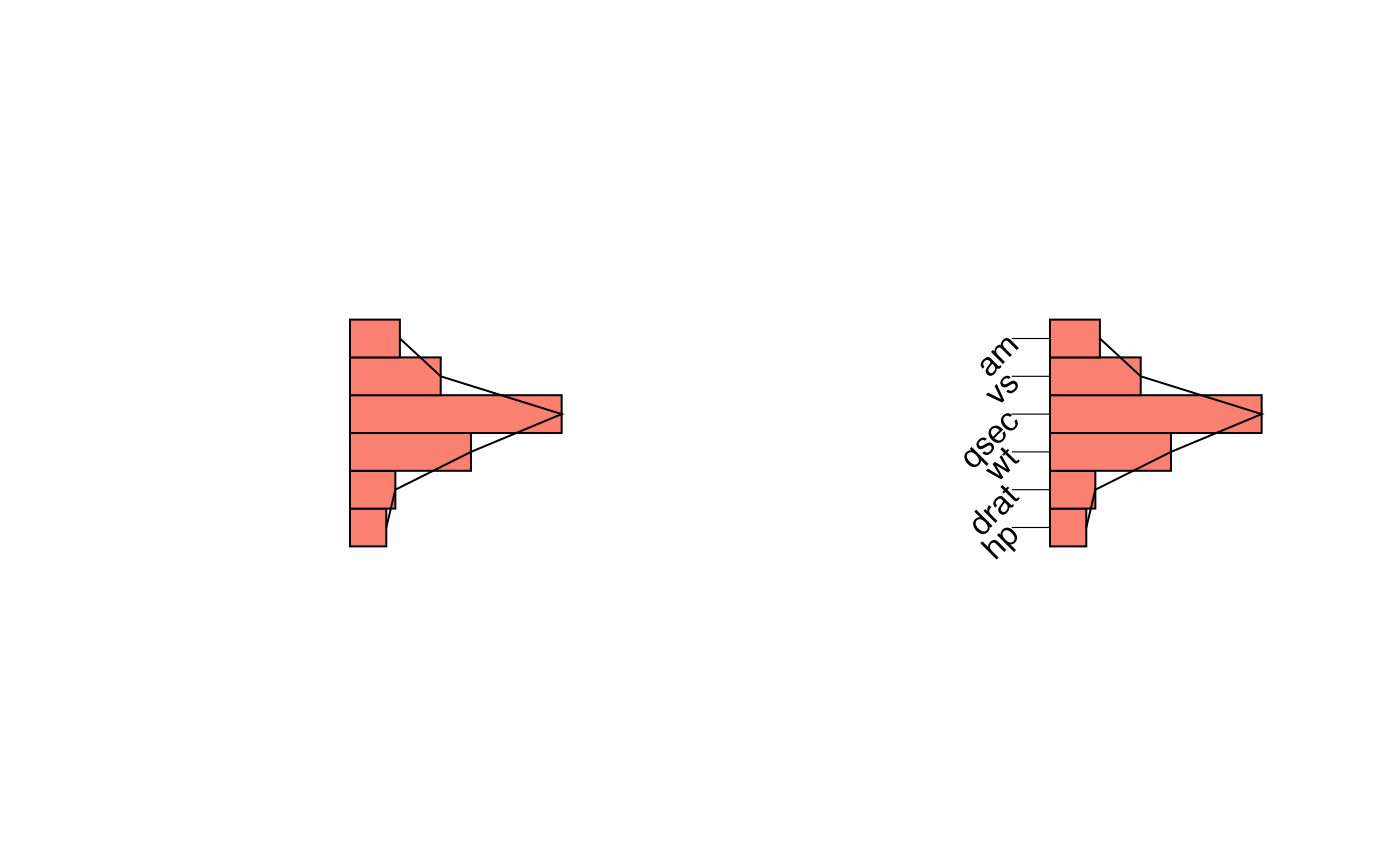

bg1 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20)

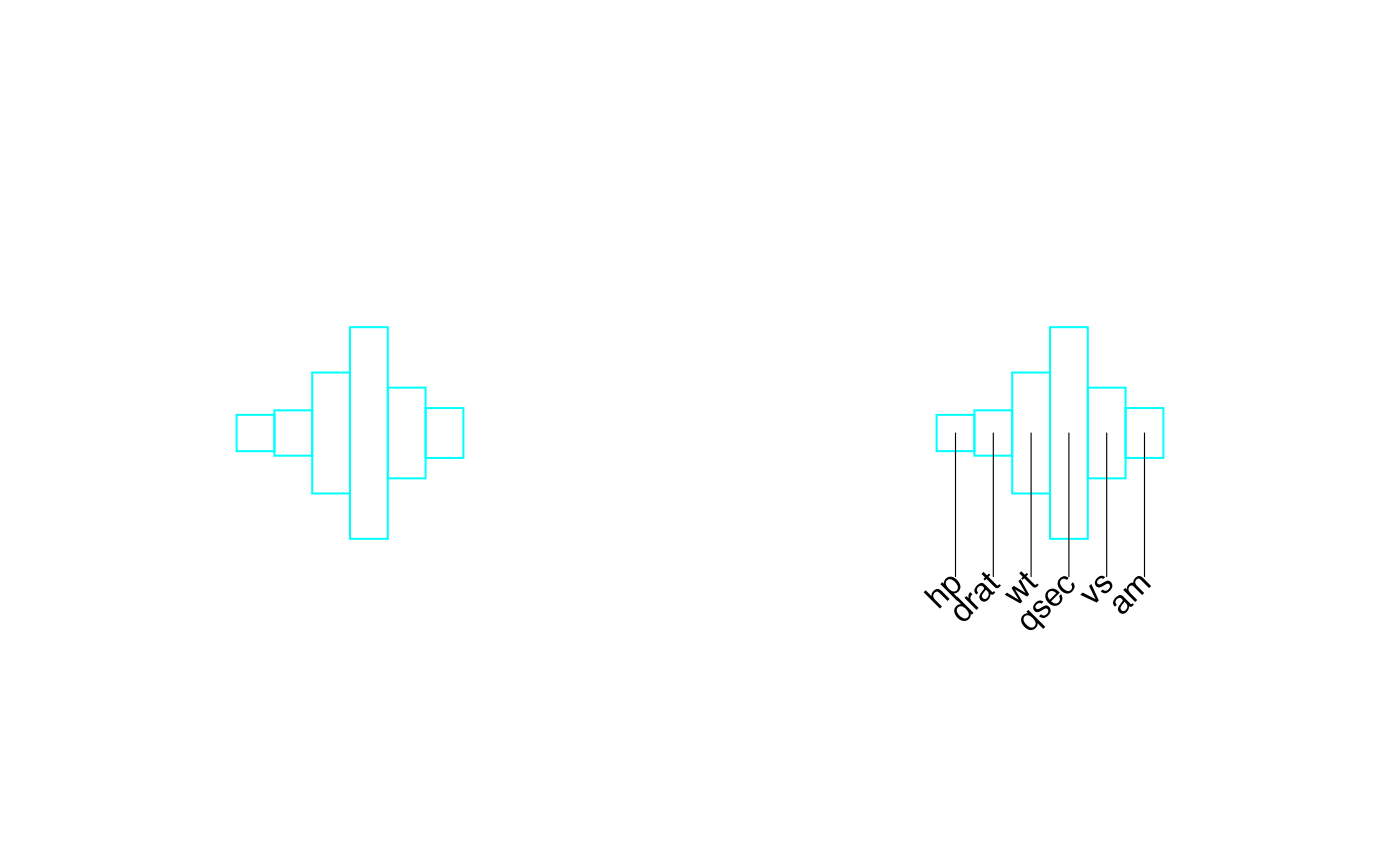

bg2 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, line = FALSE,
col.bar = "cyan")

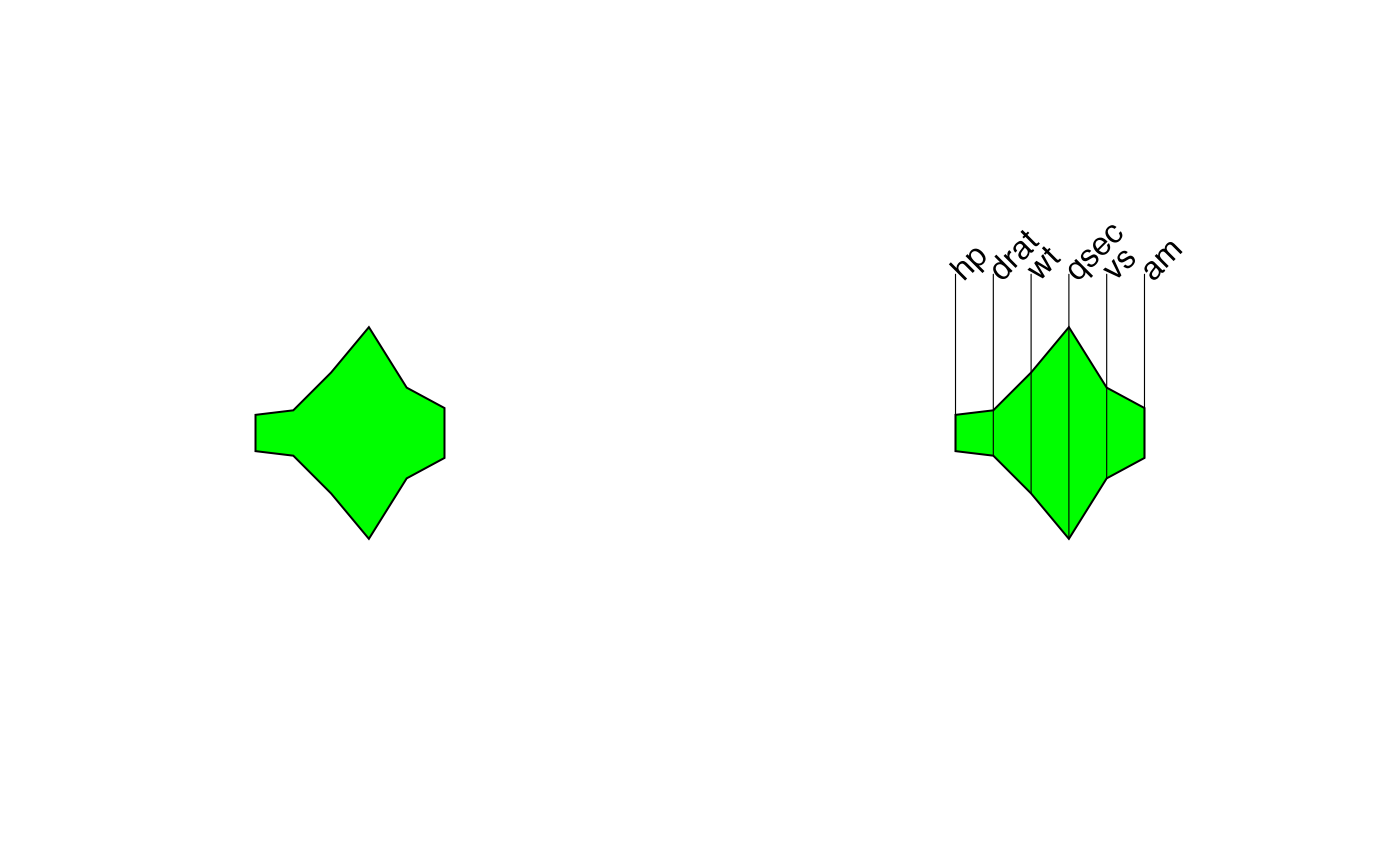

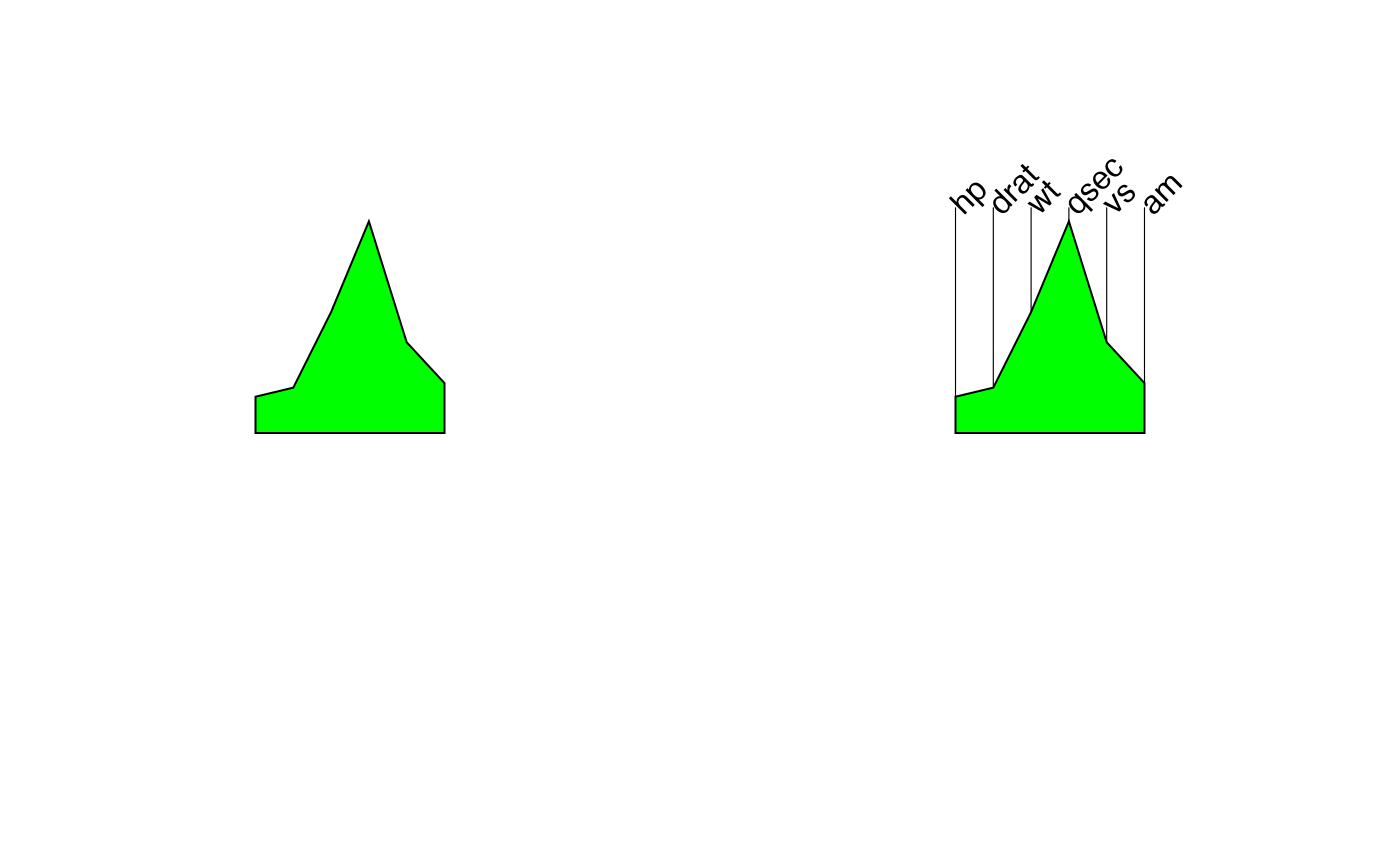

bg3 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, line = TRUE, bar = FALSE,
fill = "green")
bg1_lab <- addlabel.glyphGrob(grob = bg1, label = label, segment = TRUE,
angle = 45, push = 1, hjust = 1)
bg2_lab <- addlabel.glyphGrob(grob = bg2, label = label, segment = TRUE,
angle = 45, push = 5, hjust = 1)
bg3_lab <- addlabel.glyphGrob(grob = bg3, label = label, segment = TRUE,
angle = 45, push = -35, hjust = 0)
grid.arrange(bg1, bg1_lab, nrow = 1)
grid.arrange(bg2, bg2_lab, nrow = 1)
grid.arrange(bg3, bg3_lab, nrow = 1)
bg1 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20,
mirror = FALSE)
bg2 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, line = FALSE, mirror = FALSE,
col.bar = "cyan")
bg3 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, line = TRUE, bar = FALSE,
mirror = FALSE, fill = "green")
bg1_lab <- addlabel.glyphGrob(grob = bg1, label = label, segment = TRUE,
angle = 45, push = 1, hjust = 1)
bg2_lab <- addlabel.glyphGrob(grob = bg2, label = label, segment = TRUE,
angle = 45, push = 5, hjust = 1)
bg3_lab <- addlabel.glyphGrob(grob = bg3, label = label, segment = TRUE,
angle = 45, push = -25, hjust = 0)
grid.arrange(bg1, bg1_lab, nrow = 1)
grid.arrange(bg2, bg2_lab, nrow = 1)
grid.arrange(bg3, bg3_lab, nrow = 1)
bg1 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, flip.axes = TRUE,
fill = "salmon")
bg2 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, line = FALSE,
flip.axes = TRUE,
col.bar = "cyan")
bg3 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, line = TRUE, bar = FALSE,
flip.axes = TRUE)
bg1_lab <- addlabel.glyphGrob(grob = bg1, label = label, segment = TRUE,
angle = 45, push = 15, hjust = 1)
bg2_lab <- addlabel.glyphGrob(grob = bg2, label = label, segment = TRUE,
push = 20, hjust = 1)
bg3_lab <- addlabel.glyphGrob(grob = bg3, label = label, segment = TRUE,
angle = 45, push = -30, hjust = 0)
grid.arrange(bg1, bg1_lab, nrow = 1)
grid.arrange(bg2, bg2_lab, nrow = 1)
grid.arrange(bg3, bg3_lab, nrow = 1)
bg1 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, flip.axes = TRUE,
fill = "salmon", mirror = FALSE)
bg2 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, line = FALSE, mirror = FALSE,
flip.axes = TRUE,
col.bar = "cyan")
bg3 <- profileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(0.24, 0.3, 0.8, 1.4, 0.6, 0.33),
size = 20, line = TRUE, bar = FALSE,
flip.axes = TRUE,
mirror = FALSE)
bg1_lab <- addlabel.glyphGrob(grob = bg1, label = label, segment = TRUE,
angle = 45, push = 5, hjust = 1)
bg2_lab <- addlabel.glyphGrob(grob = bg2, label = label, segment = TRUE,
push = 5, hjust = 1)
bg3_lab <- addlabel.glyphGrob(grob = bg3, label = label, segment = TRUE,
angle = 45, push = -25, hjust = 0)
grid.arrange(bg1, bg1_lab, nrow = 1)
grid.arrange(bg2, bg2_lab, nrow = 1)
grid.arrange(bg3, bg3_lab, nrow = 1)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

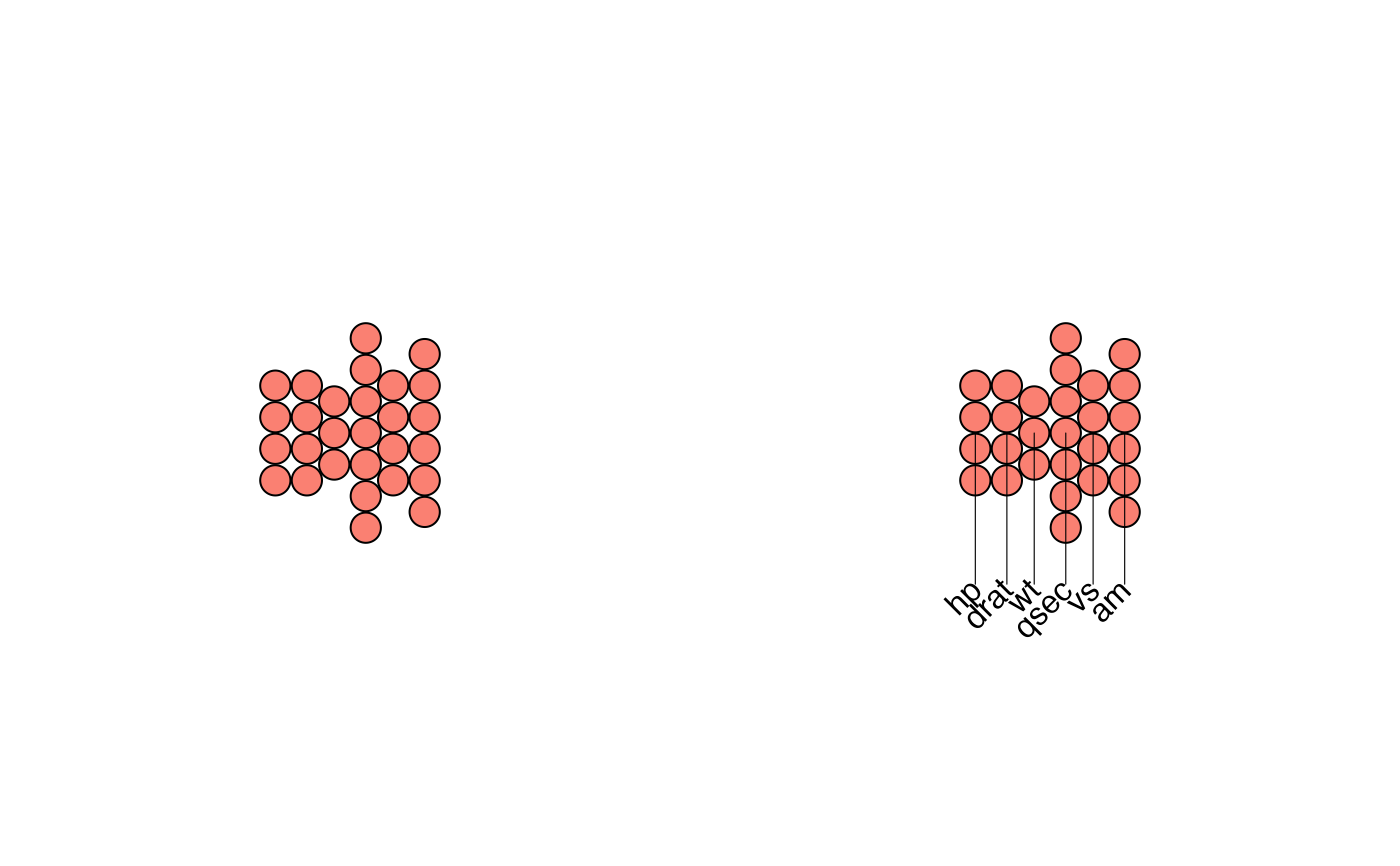

# Add labels to dotglyphGrob
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
clrs <- mapply(function(a, b) rep(a, b),
RColorBrewer::brewer.pal(6, "Dark2"),
round(c(4, 3.5, 2.7, 6.8, 3.4, 5.7)))
clrs <- unlist(clrs)
dg1 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
radius = 2)
dg2 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
radius = 2, mirror = TRUE,
fill = "salmon", col = "black")

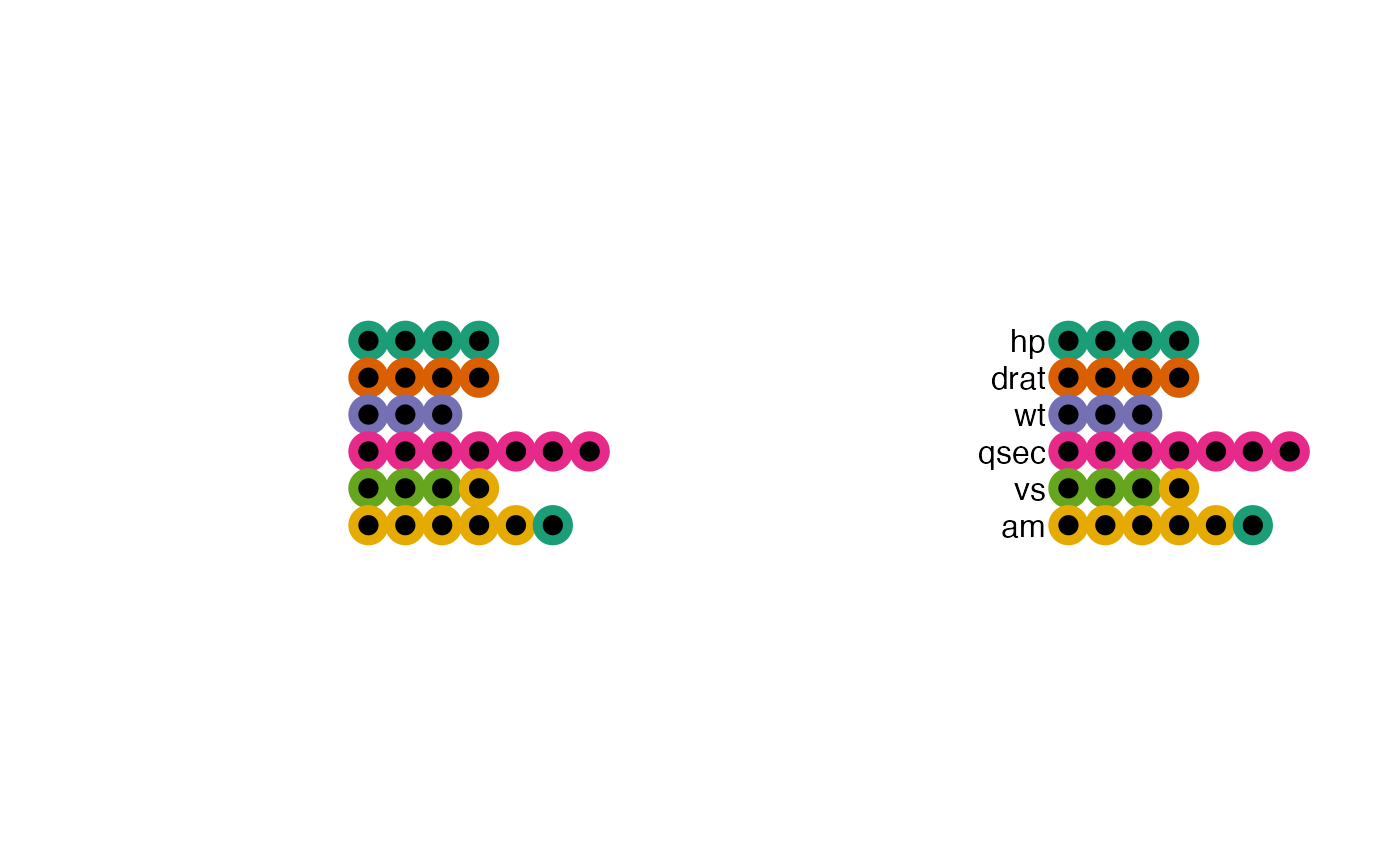

dg3 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
radius = 2, flip.axes = TRUE,
fill = "black", col = clrs, lwd = 5)
dg4 <- dotglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7),
radius = 2, mirror = TRUE,
flip.axes = TRUE,
fill = "green", col = "grey")
dg1_lab <- addlabel.glyphGrob(grob = dg1, label = label, segment = FALSE,
push = 3, hjust = 1, angle = 45)
dg2_lab <- addlabel.glyphGrob(grob = dg2, label = label, segment = TRUE,
angle = 45, push = 20, hjust = 1)
dg3_lab <- addlabel.glyphGrob(grob = dg3, label = label, segment = FALSE,
push = 3, hjust = 1)
dg4_lab <- addlabel.glyphGrob(grob = dg4, label = label, segment = TRUE,
push = 20, hjust = 1)
grid.arrange(dg1, dg1_lab, nrow = 1)
grid.arrange(dg2, dg2_lab, nrow = 1)
grid.arrange(dg3, dg3_lab, nrow = 1)
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

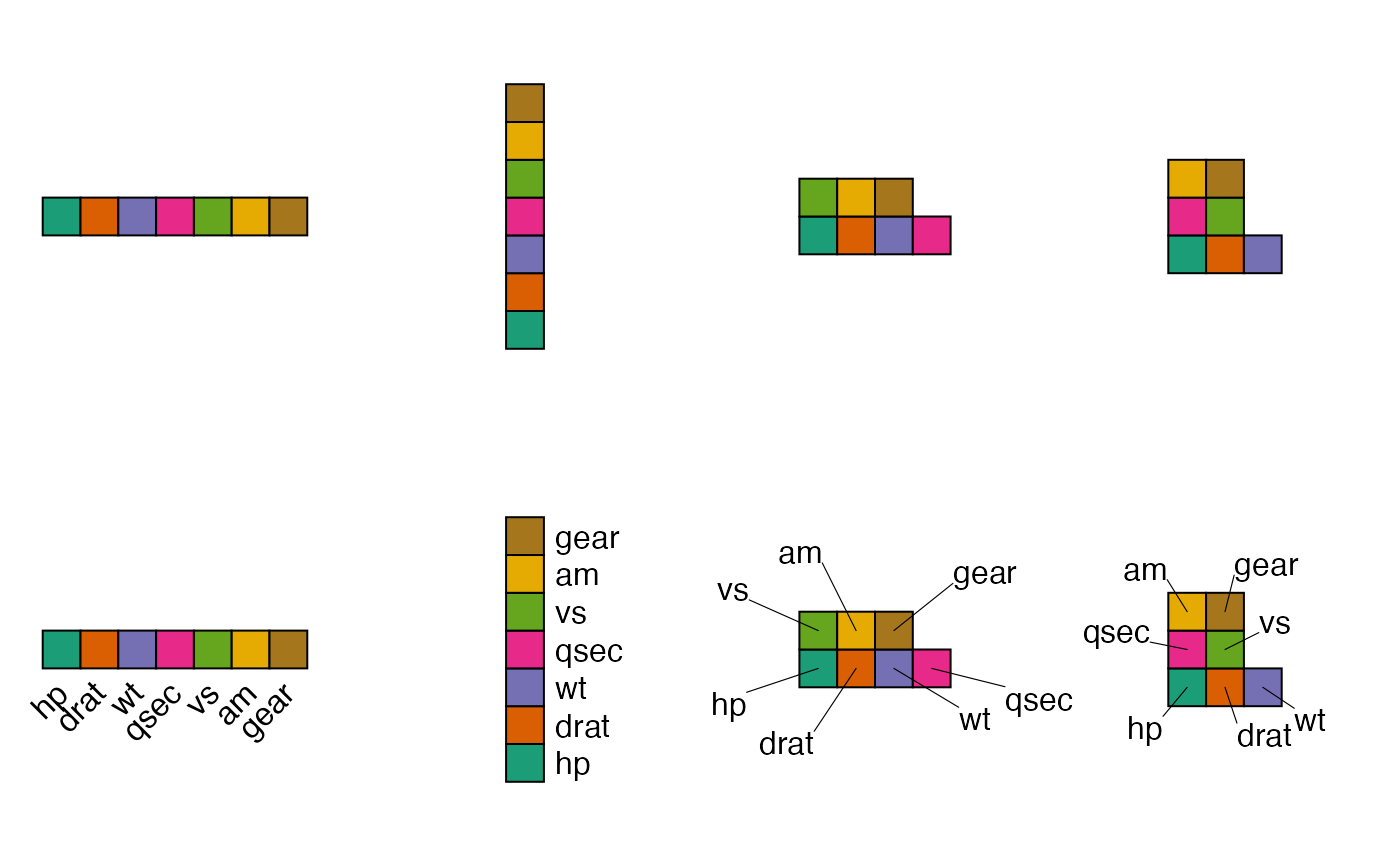

# Add labels to tileglyphGrob
#~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
label = c("hp", "drat", "wt", "qsec", "vs", "am", "gear")
tg1 <- tileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7, 4.3),
size = 5,
fill = RColorBrewer::brewer.pal(7, "Dark2"))
tg2 <- tileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7, 4.3),
size = 5, nrow = 7,
fill = RColorBrewer::brewer.pal(7, "Dark2"))
tg3 <- tileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7, 4.3),
size = 5, nrow = 2,
fill = RColorBrewer::brewer.pal(7, "Dark2"))
tg4 <- tileglyphGrob(x = unit(0.5, "npc"), y = unit(0.5, "npc"),
z = c(4, 3.5, 2.7, 6.8, 3.4, 5.7, 4.3),
size = 5, nrow = 3,
fill = RColorBrewer::brewer.pal(7, "Dark2"))
tg1_lab <- addlabel.glyphGrob(grob = tg1, label = label, segment = FALSE,
angle = 45, push = -10, hjust = 1, vjust = 0.5)
tg2_lab <- addlabel.glyphGrob(grob = tg2, label = label, segment = FALSE,
push = -1, hjust = 0, vjust = 0.5)
tg3_lab <- addlabel.glyphGrob(grob = tg3, label = label)
tg4_lab <- addlabel.glyphGrob(grob = tg4, label = label, segment = TRUE,
push = 5, hjust = 0, vjust = 0.25)
grid.arrange(tg1, tg2, tg3, tg4,
tg1_lab, tg2_lab, tg3_lab, tg4_lab,
nrow = 2, ncol = 4)
